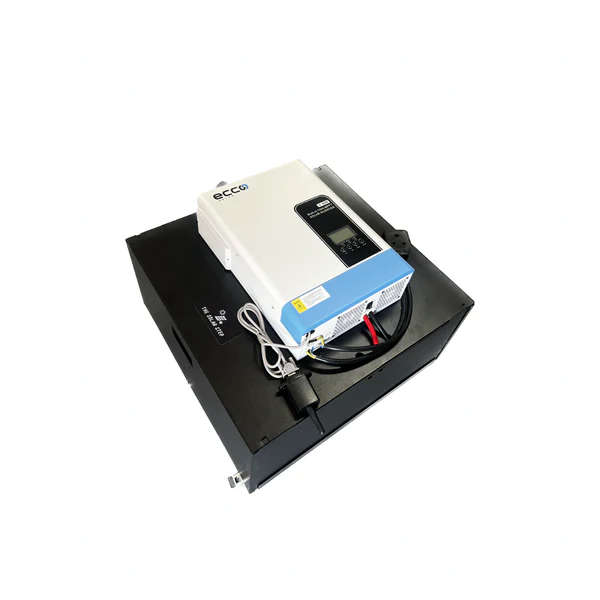

5.5KVA / 5500W ECCO Portable Plug And Play Power System + 4x 120AH Deep Cycle Batteries / MPPT

5.5KVA / 5500W ECCO Portable Plug And Play Power System + 4x 120AH Deep Cycle Batteries / MPPT

Description:

Reliable Backup Power Solution for Load Shedding & Off-Grid Use

This plug-and-play hybrid inverter system provides seamless backup power during load shedding. Featuring a 5.5KVA (5500W) pure sine wave inverter and four 120AH deep cycle batteries, this all-in-one unit ensures an uninterrupted power supply for essential home and office appliances. The system is solar-ready, allowing integration with solar panels for extended energy independence.

Key Features & Benefits:

Automatic Power Transfer Instantly switches to battery power during outages.
Pure Sine Wave Output Ensures safe operation of sensitive electronics.
100A MPPT Solar Charge Controller Optimized for maximum solar energy efficiency.
Parallel Operation Support Expand capacity with up to 12 units.
WiFi Monitoring & RS485 Communication Enables remote monitoring and smart battery management.
Battery Equalization Function Extends battery lifespan and maintains efficiency.
Heavy-Duty, Portable Design Lockable wheels and compact form for easy transport.

Battery Backup Performance:

• Powers a 150W load (TV, WiFi, lights, etc.) for 12-14 hours on a full charge.
• Maximize Battery Life Keep the system plugged in and switched on to maintain full charge.
• MPPT vs. PWM Charge Controllers MPPT controllers are 30% more efficient in energy conversion compared to PWM models.

System Specifications:

Inverter Mode:

• Rated Power: 5500VA / 5500W
• DC Input: 48V DC, 127A
• AC Output: 230V AC, 50/60Hz, 23.9A

AC Charger Mode:

• Input Voltage: 230V AC, 50/60Hz, 40A
• DC Output Voltage: 54V DC
• Max AC Charge Current: 60A (Default 30A)
• Max Charge Current (PV+AC): 100A

Solar Charge Mode:

• Max PV Array Power: 5500W
• Solar Input Voltage Range: 120V 500V DC
• Max MPPT Charge Current: 100A

Battery & Protection:

• Battery Type: 4x 120AH Deep Cycle Batteries
• Recommended Compatibility: ECCO Batteries & Solar Panels for optimal performance
• Ingress Protection: IP21 (Indoor Use)
• System Dimensions: 60cm (L) x 60cm (W) x 45cm (H)
• System Weight: Approx. 50kg
• Inverter Dimensions: 38cm (L) x 55cm (W) x 20cm (H)
• Inverter Weight: 9.65kg

What's Included in the System?

1x 5.5KVA ECCO Hybrid Inverter
4x 120AH Deep Cycle Batteries
1x Heavy-Duty Portable Steel Box with Lockable Wheels
1x Surge Plug (1m Power Cable, 2.5mm Cabtyre)
1x Double-Sided Female Plug Socket
1x Fuse & Disconnector (Battery to Inverter)

Installation & Warranty:

• 5-Year Repair Warranty on the Inverter.
• BATTERIES - 90 DAY REPLACEMENT
• Installation must be performed by a certified PV installer who can issue a Certificate of Compliance (COC).
• The installation must adhere to relevant electrical regulations to ensure safety and efficiency.

Stay Powered & Prepared for Load Shedding Order Today!

This high-performance backup system is designed for home, office, and off-grid applications, ensuring you stay connected during power outages.
