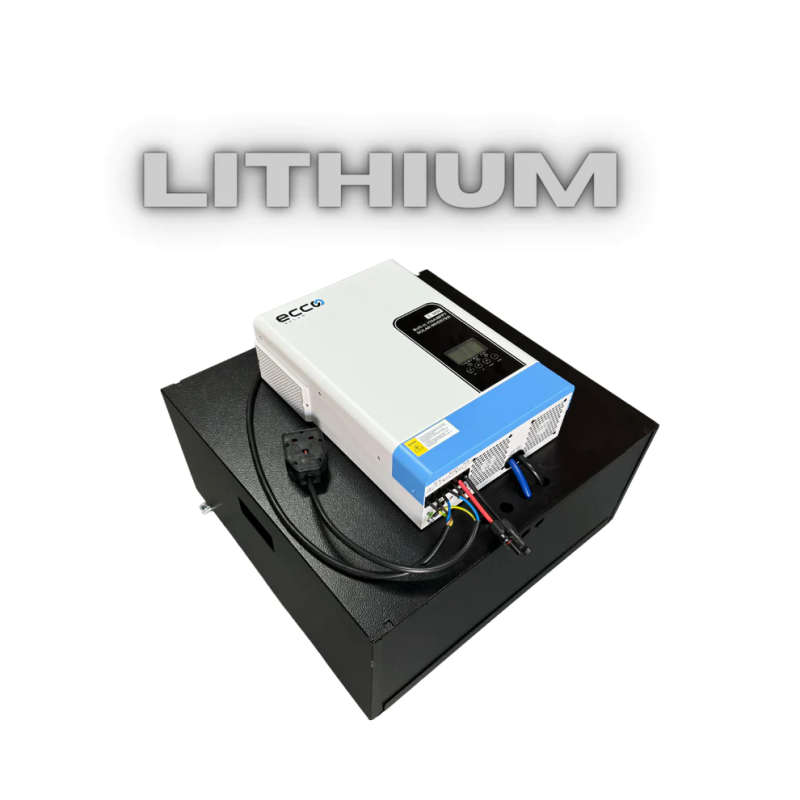

5.5KVA / 5500W ECCO Portable Plug And Play System + 5.12kWh Ecco Lithium Battery / MPPT

5.5KVA / 5500W ECCO Portable Plug And Play System + 5.12kWh Ecco Lithium Battery / MPPT

Description:

Reliable Power Backup Load Shedding & Off-Grid Ready

This plug-and-play hybrid inverter system is designed to provide uninterrupted power during load shedding and power outages. Featuring a 5.5KVA (5500W) pure sine wave inverter and a 5.12kWh ECCO lithium battery, this system offers an efficient, high-performance energy solution. The solar-ready design allows for easy integration with solar panels for extended backup power.

Key Features & Benefits:

Instant Power Transfer Automatically switches to battery power during outages.
Pure Sine Wave Output Ensures compatibility with sensitive electronics.
High Voltage PV Input (120V 500V DC) Efficient solar energy utilization.
100A MPPT Solar Charge Controller Maximizes solar charging efficiency.
Parallel Operation Support Connect up to 12 units for increased capacity.
WiFi Monitoring & RS485 Communication Remote monitoring and battery management system (BMS) support.
Battery Equalization Function Optimizes battery performance for a longer lifespan.

Battery Backup Performance:

• Supports a 150W load (TV, WiFi, lights, etc.) for 45-50 hours (100% Depth of Discharge).
• Provides twice the power of lead-acid batteries while maintaining high energy capacity.
• Longer Battery Life Up to 20 times longer cycle life than lead-acid alternatives.

System Specifications:

Inverter Mode:

• Rated Power: 5500VA / 5500W
• DC Input: 48V DC, 127A
• AC Output: 230V AC, 50/60Hz, 23.9A

AC Charger Mode:

• Input Voltage: 230V AC, 50/60Hz, 40A
• DC Output Voltage: 54V DC
• Max AC Charge Current: 60A (Default 30A)
• Max Charge Current (PV+AC): 100A

Solar Charge Mode:

• Max PV Array Power: 5500W
• Solar Input Voltage Range: 120V 500V DC
• Max MPPT Charge Current: 100A

Battery & Safety:

• Battery Type: ECCO Lithium-Ion Phosphate (LiFePO4)
• Battery Voltage: 51.2V
• Capacity: 100AH / 5.12kWh
• Temperature Range: -20°C to 60°C
• Protection: Eliminates risk of explosion or combustion from impact, overcharging, or short circuits.
• Ingress Protection: IP21 (Indoor Use)

What's Included in the System?

1x ECCO Lithium-Ion Phosphate 51.2V 100AH 5.12kWh Battery
1x Heavy-Duty Portable Steel Box with Lockable Wheels
1x Surge Plug (1m Power Cable, 2.5mm Cabtyre)
1x Double-Sided Female Plug Socket
1x Fuse & Disconnector (Battery to Inverter)
1x 5.5KVA Hybrid Inverter

Dimensions: 60cm (L) x 60cm (W) x 45cm (H)
Weight: Approx. 60kg

Installation & Warranty:

• 5-Year Warranty on the inverter and battery.
• Must be installed by a qualified electrical wireman or master electrician with a valid Department of Labour registration.
• A valid Certificate of Compliance (COC) must be issued post-installation, ensuring compliance with SANS 10142 standards.
• Warranty Claims: Require installation photos, a COC, and proof of installation by a certified professional.

Reliable Power When You Need It Be Prepared for Load Shedding & Off-Grid Living

This system provides a high-performance backup power solution, ensuring you stay connected during outages. Order yours today!
