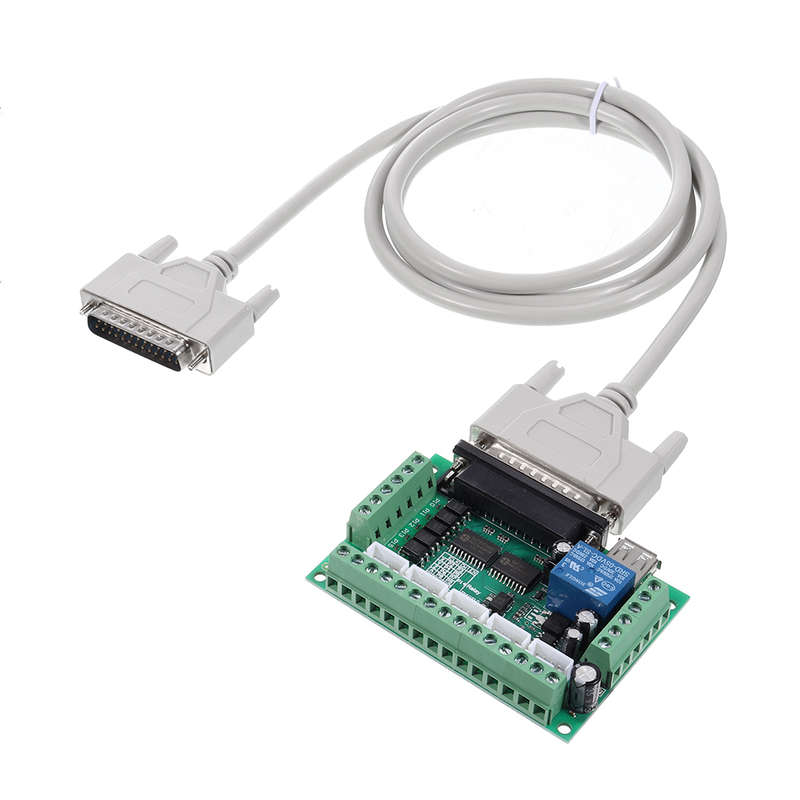

5 Axis Stepper Driver For Mach3 Protection Transmission Anti Reverse Module Board CNC Controller

20 available / new

R515.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3463

93.50 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641110760

.size_table_start table,.size_table_start table tr td { border:2px solid #ddd;}.size_table_start table { width: 100%; min-height: 25px; line-height: 25px; text-align: center; border-collapse: collapse;}.size_table_start,.size_table_end {clear:both;}

Description:
aProtection Transmission Anti Reverse Module Electronics Controller Board CNC Stable Stepper Driver 5 Axis For Mach3

Specifications:
Voltage: 12-24V
aAxis: 5 axis
aFunction: anti-reverse function
Suitable for: For mach3
aInput Power: 5V DC power supply or computer USB to take power

Work axis stepper: Received the highest 5-axis independent driving

Drive: Pulse + direction + enable signal.

a
aFeatures:
Fully suitable for MACH3 and other computer software support for parallel port control.
USB power supply and peripherals powered phase separation to protect computer security.
Peripheral wide voltage input,12-24V, and anti-reverse function.
All the way to the relay output port, control spindle switch. Output port P17 mouth.
Can be accessed with the optocoupler drive, 5-axis stepper motor can be controlled.
P1 as PWM outputs can be controlled with optocoupler input spindle governor.
Can be accessed by a common cathode or common anode input level to 5V drive.
a

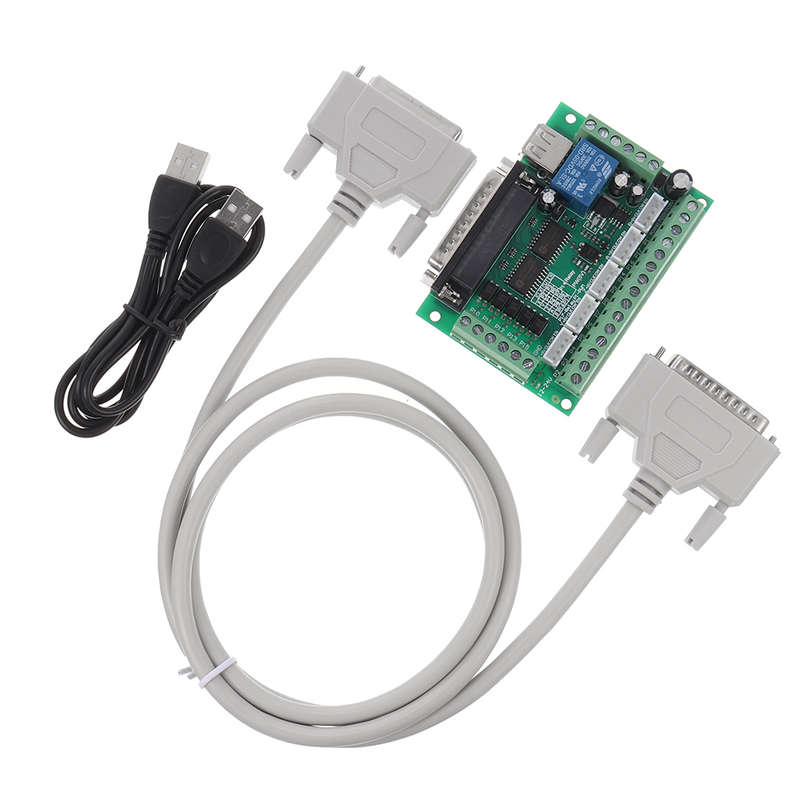

Package Included:
1 PC *Driver
