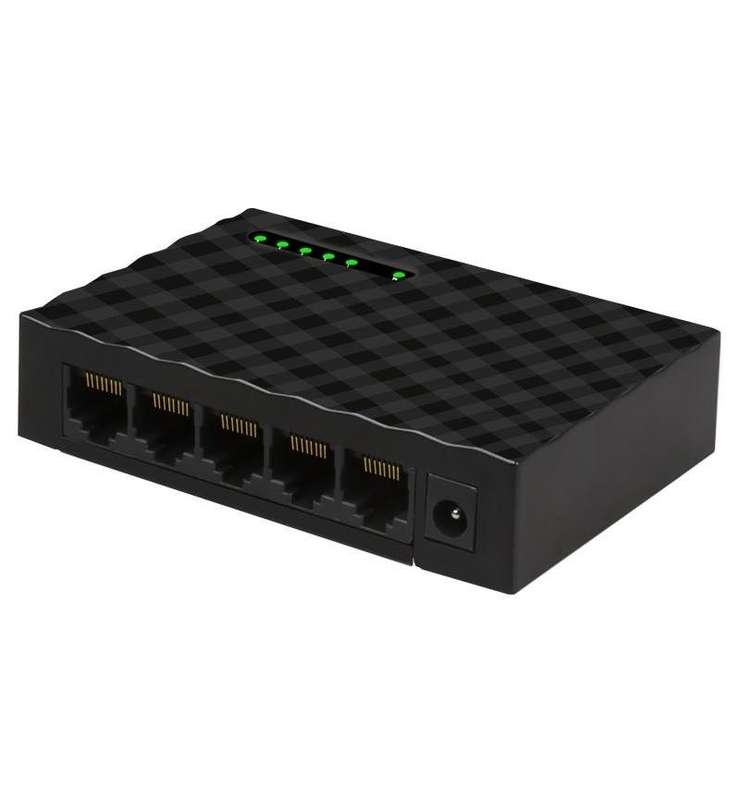

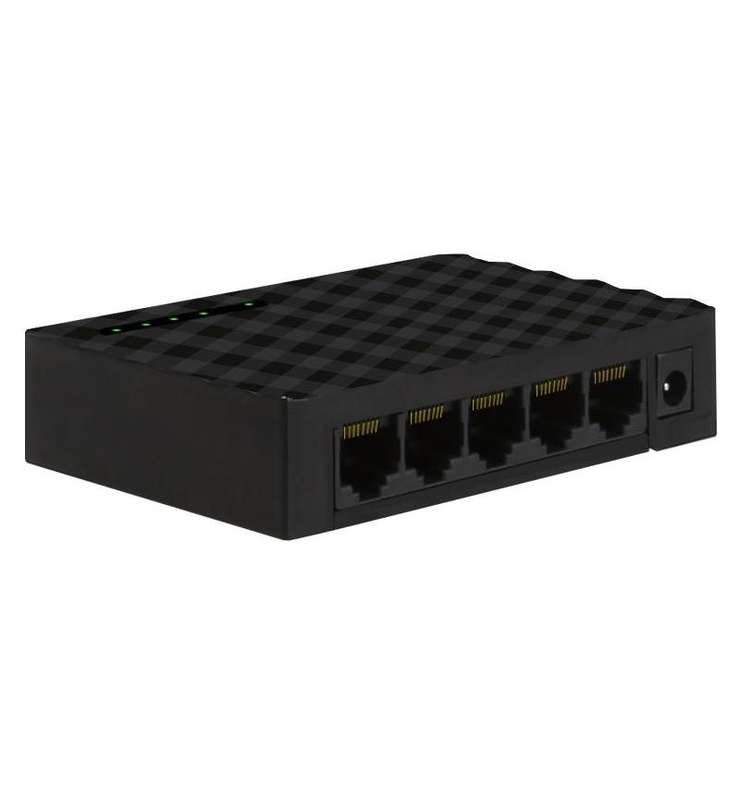

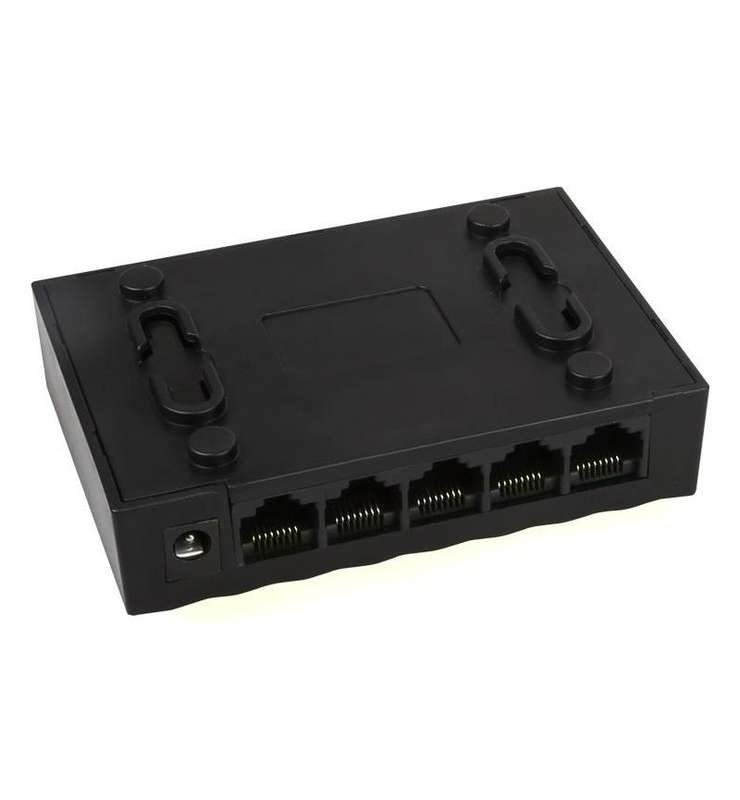

5 Port Gigabit Switch - TXE034

5 PORT GIGABIT SWITCH - TXE034

5-Port 10/100/1000 Mbps Ethernet Switch

Overview

With the TXE034 Gigabit Ethernet Switch, you can easily expand your business or home network by adding more computers and devices

Each achieving speeds up to 2000 Mbps per port in full-duplex mode

Highlights

10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

IEEE 802.3x flow control provides reliable data transfer

Plug and play, no configuration needed

Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free

No configuring is required

Auto-negotiation on each port senses the link speed of a network device

(either 10, 100, or 1000Mbps) and intelligently adjusts for compatibility and optimal performance

Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab

Interface: 5 10/100/10000Mbps RJ45 Ports, Auto Negotiation/Auto MDI/MDIX

Forwarding Mode: Store-and-Forward

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Power Supply: External Power Adapter

(Output: 5VDC/1A)

Dimensions: 100 x 70 x 25 mm

Weight: 76g

LED: Power, Link/Act

Fanless: Yes

Performance

Switching Capacity: 10Gbps

Packet Filtering/Forwarding Rate: 1,488,000 pps for 1000M

148,800 pps for 100M

14,880 pps for 10M

MAC Address Table 2K

Environment

Operating Temperature: 0°C - 40°C(32°F~104°F)

Storage Temperature: -40°C - 70°C(-40°F~158°F)

Operating Humidity: 10% - 90%RH non-condensing

Storage Humidity: 5% - 90%RH non-condensing
