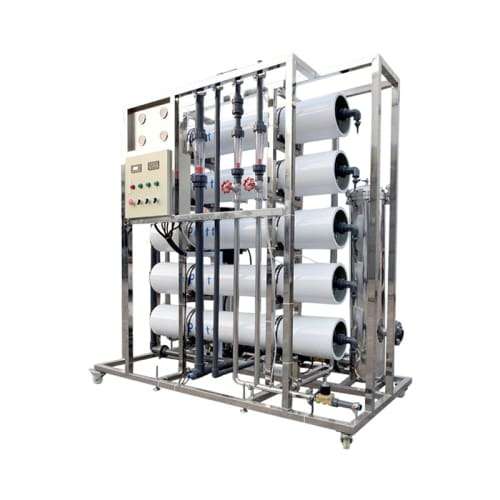

5000 Litres Per Hour Industrial Reverse Osmosis System Compared with the common ion exchange and distilling method, the RO membrane water purification system is more efficient, cost-saving, and reliable.
The reverse osmosis system is currently the most sophisticated water filtration technology.
The reverse osmosis membrane retains inorganic molecules such as dissolved salts and organic substances with a molecular weight greater than 100.
On the other hand, water molecules can pass through the reverse osmosis membrane freely, and desalination is 96%-99% It is widely applied in electronics, power, photo-voltaic, beverage, medicine, chemical, petroleum industries, middle water recycling, and seawater desalination, etc.
FUNCTION Item Function precision filter prevent large particles, bacteria, viruses into the RO membrane, accuracy is 5um High-pressure pump Provide the high pressure for RO membrane Reverse Osmosis system the main part of the plant.
The RO membranes desalting rate can reach 99%, removing over 99% of ions UV sterilizer kill bacteria
DESCRIPTION Capacity 5000LPH/40000GPD
Voltage 220V/50Hz,220V/60Hz,
Single phase Recovery 50%-70%
Desalination 96%-99%
Membrane Qty 5pcs Temp of raw water 1-45ƒ Feed Water Pressure 1-5 bar Raw water TDS 0-1000ppm Application raw water Tap water, Brackish water, Seawater RO Membrane Vontron, Dow
Item name Material Pressure gauge assembly
HP PUMP SS304
RO Membrane housing FRP Pure Flowmeter Plexiglas Panel waste Flowmeter Plexiglas Panel Conductivity meter engineering plastics Pressure switch brass inlet valve brass flush valve brass Regulating valve brass UV sterilizer SS304 Electronic control system air switch.electric relay.alternating current contractor.switch.LED control box SS304 /Mild Steel Frame SUS304 pipeline UPVC 3/4�
WDA47
