The perfect solution for load shedding!

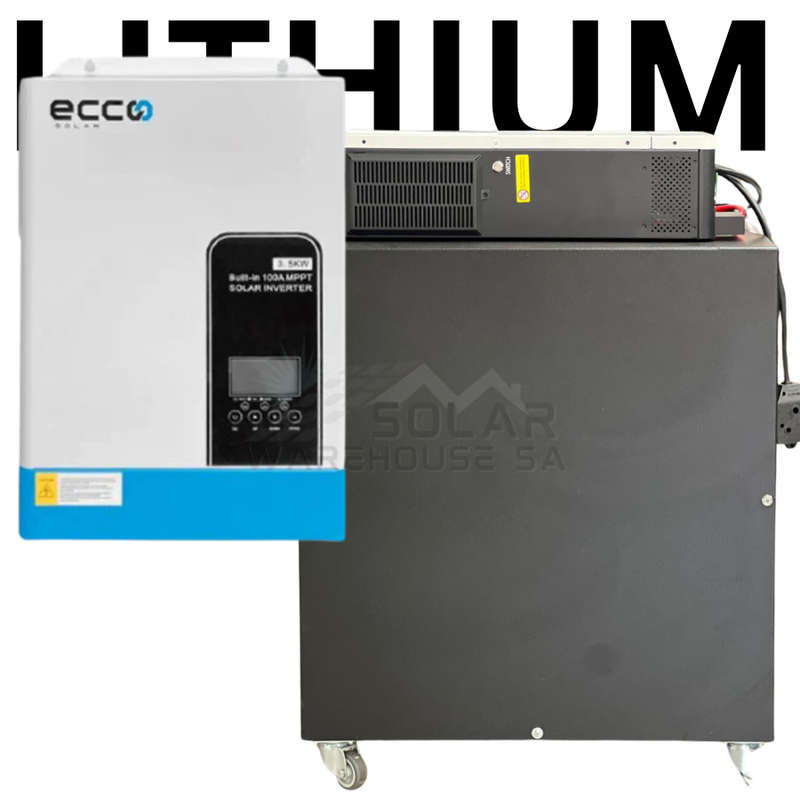

The all-in-one portable plug & play inverter battery trolley system (Heavy Duty Inverter Trolley) Easy portable compact unit with lock wheels as well as handles to carry the system.
PLEASE NOTE TROLLEYS TAKE 2-3 BUSINESS HOURS TO ASSEMBLE
What is an all-in-one portable plug & play Solar Ready inverter system and what does it do?
It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers, chargers, and wifi running during load shedding. Solar ready : Add a solar panel and charge your batteries when there is no power.
How much battery backup power will I have when the power is off?
If you connect 500w which is usually a TV, WIFI, Lights, etc. This portable system will last 16-20 Hours With a 100% DOD.
Features;
Hybrid Inverter 48v 5.5 Kva 5500w Mppt 100a Inverter Pure Sine Wave - Ecco
(Parallel Version)
The main difference between PWM and MPPT charge control devices is that the MPPT devices are more efficient. MPPT charge control devices have 30 % more efficient in charge efficiency according to PWM type. Panel voltage and battery voltage should be matched in PWM systems.
High Voltage VDC500V
5.5KVA/5500W 100A Pure Sine Wave Solar Inverter
Features
Pure sine wave
Power factor 1.0
PV input Voltage 60Vdc-500Vdc
Built-in MPPT 100A
Capable to work without battery
RS485 BMS Communication
Lithium battery activation
Detachable dust cover for harsh environment
WiFi remote monitoring optional
Support multiple output priority: UTL, SOL, SBU, SUB
EQ function to optimize battery performance and extend lifecycle
Parallel Version
Specifications:
Dimensions ; 438 x 295 x 105
Weight : 9kg
It is recommended to use ECCO Batteries and Solar Panels for Quality Guaranteed Results.
Important Note: This product requires installation by a qualified PV installer, the PV installer must be able to issue a Certificate of Compliance. This is to ensure that the installation is safe and correct, as well as, within the scope of relevant regulations.
What's in the box
1 x ECCO 5.5KW Inverter
1 x Connecting Cables
1 x User Guide
Battery Specifications:
Specifications:
| ax. Charging Current | 100 A |
| Max. Continue Discharging Current | 100 A |
| Weight | Approx. 43 Kg |
| Display | With display screen |
| Protocol | CANBUS/MODBUS |
| Parallel Connection | Parallel connection is optional (up to 15P). |
| Cell | 3.2V 100Ah |
| Design life | More than 20 years |
| Cycle Life | More than 3500 cycles at 100% DOD. |
| IP Class | Ip31 |
| (W*D*H) mm | 442 (17.40") 431 (16.97") 177 (6.99") |
| Operating Temperature | Charging: 0 to +60°C |
This all-in-one system Includes:
1x Hybrid Inverter 48v 5.5 Kva 5500w Mppt 100a Inverter Pure Sine Wave - Ecco(5 Years Warranty)
2x Ecco 51.2v 100ah 5.12kWh Lithium Battery W51100 Wall-Mounted
(5 Years Warranty)
1x Battery Fuse
1x 1m Power Cable With Power Surge Wall Plug
1x 1m Cable With Power Socket
1x Surge Protection Plug
1x Heavy Duty Steel Portable Box With Lock Wheels & Handles
Add a wifi dongle:
https://solarwarehousesa.com/products/ecco-hybrid-inverter-wifi-dongle?_pos=1&_sid=71ec01ede&_ss=r
(This box is upgradeable and can take another battery)
