Features
- Pure Sine Wave Solar Inverter
- Output Power Factor 1
- Supports Multiple Output Priority: UTL, SOL, SBU, SUB
- Supports Wireless Parallel, Without Extra Sharing of Current Cable
- RS485 Communication for BMS
- Battery Equalization Function to Optimize Battery Performance and Extended Lifecycle
Specifications:
Inverter Mode
- Rated Power: 5000 KVA / 5000W
- DC Input: 48VDC, 115.7A
AC Charger Mode
- AC Input: 230VAC, 50/60Hz, 23.5A
- DC Output: 27VDC
- Max. Charge Current(AC): 60A Default 30A
- Max. Charge Current(PV+AC): 120A
- AC Output: 230VAC, 50/60Hz, 15.2A
Solar Charge Mode
- Max. PV Array Power: 3360W
- Min. Solar Voltage: 60-90VDC
- Max. Solar Voltage (VOC): 100VDC
- Max. MPPT Charge Current: 120A
Dimensions ; 440 X 342 X 101.5
Weight: 11kg
What's in the box

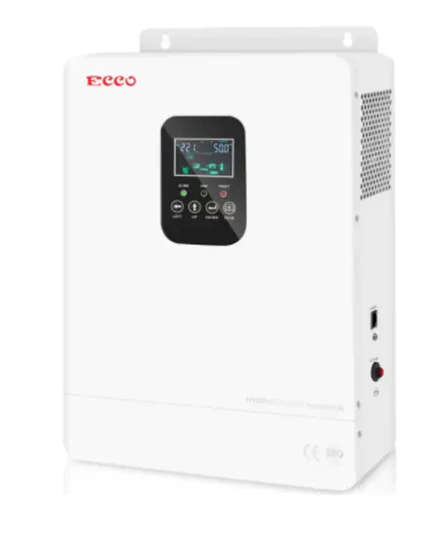

1 x ECCO 5KW 48V Hybrid Solar Inverter
1 x User Manual
Warranty: 5 Years Repair Warranty
Warranty Condition:
A certified electrical wireman or master electrician with a current Department of Labor registration is required to install all inverters and batteries. Once installed, a current electrical certificate of compliance (COC) for the installation of the solar or backup system is required. The installation needs to adhere to SANS 10142 in its entirety. If a warranty claim is filed without installation images, a current COC, and documentation that the item was installed by a licensed wireman or master electrician, it may be denied and become void.
