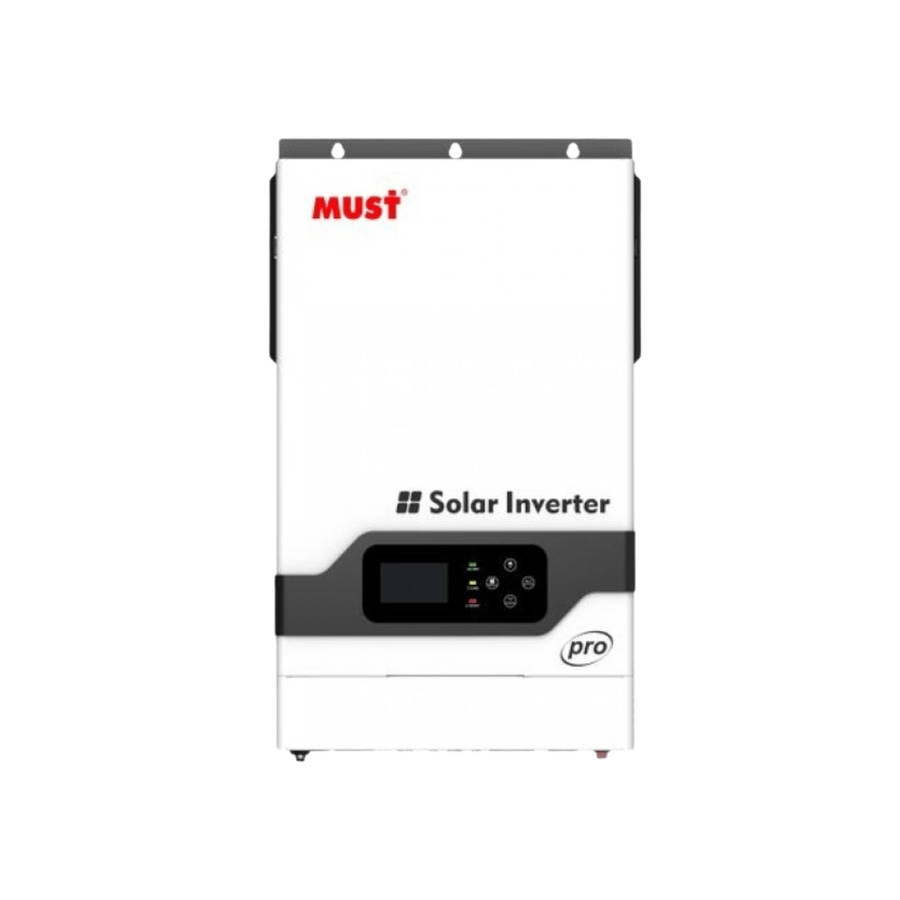

5.2KVA / 5200W 48V MUST Pro Hybrid Inverter / 100A MPPT / Pure Sine Wave

5.2KVA / 5200W 48V MUST Pro Hybrid Inverter 100A MPPT / Pure Sine Wave

Description:
Optimize your energy efficiency with the MUST Pro 5.2KVA / 5200W Hybrid Inverter, designed for seamless solar and grid integration. This intelligent inverter allows you to prioritize power sources, choosing between solar, grid, or a combination of both for optimal energy management.

With a maximum PV array open circuit voltage of 450V and an MPPT voltage range of 150-430VDC, this inverter maximizes solar power utilization. Additionally, it can power loads without requiring a battery, making it a flexible solution for various energy needs.

Key Features:

• 5200W Pure Sine Wave Output Ensures stable and efficient power supply.
• Smart LCD Display Customize working modes, charge current, and voltage settings.
• Built-in MPPT Solar Charge Controller Enhances solar charging efficiency.
• Battery-Free Operation Directly powers loads from solar energy.
• Hybrid Power Management Seamlessly integrates solar, grid, and battery sources.
• Advanced Protection Overload, short circuit, and deep discharge safeguards.
• Cold Start Function Provides backup power when the grid is unavailable.
• Remote Monitoring Capabilities Supports USB, RS485, and optional Wi-Fi dongle.

Specifications:

General

• Rated Power: 5200VA / 5200W
• Input Voltage: 230V AC
• Frequency Range: 50Hz / 60Hz (Auto-Sensing)

Output

• Voltage Regulation (Battery Mode): 230V AC ±5%
• Surge Power: 10400W
• Peak Efficiency: 93%
• Transfer Time: 10ms (PCs) / 20ms (Home Appliances)
• Waveform: Pure Sine Wave

Battery & AC Charger

• Battery Voltage: 48V DC
• Floating Charge Voltage: 54.8V DC
• Overcharge Protection: 60V DC
• Maximum Charge Current: 80A

Solar Charger

• Maximum PV Open Circuit Voltage: 450V DC
• Maximum Charging Current: 80A

What's in the Box:

• 1 x MUST Pro 5.2KVA / 5200W Hybrid Inverter
• 1 x User Manual

Warranty: 2-Year Manufacturer Warranty
