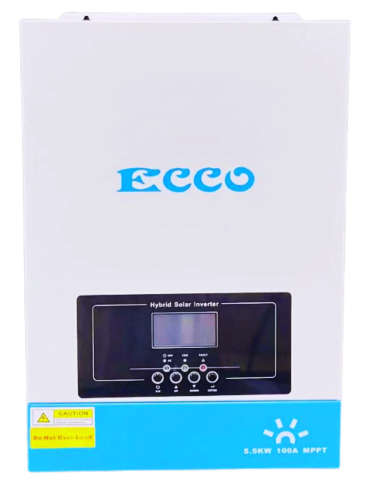

5.5KVA/5500W 100A Pure Sine Wave Solar Inverter
Features
- Pure Sine Wave Solar Inverter
- Output Power Factor 1
- High PV Input Voltage Range (120VDC - 500VDC)
- Built-in 100A MPPT Solar Controller
- Supports Multiple Output Priority: UTL, SOL, SBU, SUB
- Parallel Operation with Up to 12 units (Parallel Version)
- Supports Parallel Operation in Single Phase/ 3 Phase (Parallel Version)
- Supports Wireless Parallel, Without Extra Sharing of Current Cable
- RS485 Communication for BMS - Wifi Monitoring
- Battery Equalization Function to Optimise Battery Performance and Extended Lifecycle
Specifications:
- Inverter Mode
- Rated Power: 5500VA / 5500W
- DC Input: 48VDC, 127A
- AC Output: 230VAC, 50/60Hz, 23.9A AC Charger Mode
- AC Input: 230VAC, 50/60Hz, 40A
- DC Output: 54VDC
- Max. Charge Current(AC): 60A Default 30A
- Max. Charge Current(PV+AC): 100A
- AC Output: 230VAC, 50/60Hz, 23.9A Solar Charge Mode
- Max. PV Array Power: 5500W
- Min. Solar Voltage: 120VDC
- Max. Solar Voltage (VOC): 500VDC
- Max. MPPT Charge Current: 100A Ingress Protection: IP21 (Indoor Use)
- Dimensions ; 38 x 55 x 20 cm
- Weight: 10kg
What's in the box
1x ECCO 5.5KW Inverter
1 x Wifi Monitoring Module
3 x Connecting Cables
1 x User Guide
Warranty: 5 Years Repair Warranty
Warranty Condition:
A certified electrical wireman or master electrician with a current Department of Labor registration is required to install all inverters and batteries. Once installed, a current electrical certificate of compliance (COC) for the installation of the solar or backup system is required. The installation needs to adhere to SANS 10142 in its entirety. If a warranty claim is filed without installation images, a current COC, and documentation that the item was installed by a licensed wireman or master electrician, it may be denied and become void.
