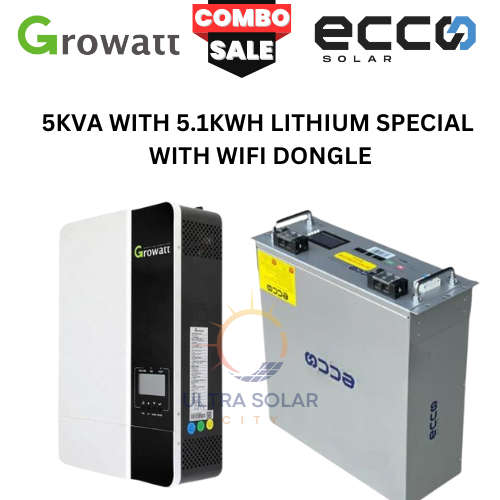

5kva With 5.12kwh A Grade Lithium Battery-Eccosolar

Off-grid inverter for backup power and self-consumption application

• Integrated MPPT charge controller
• Equalization charging function
• Work with battery or without battery
• Maximum PV input voltage up to 450VDC
• Configurable grid or solar input priority
• Optional WIFI/ GPRS remote monitoring
• Support parallel operation for capacity expansion up to 30kW
• PV and Grid power the load jointly if PV energy insufficient
• Flexible schedule the Inverter charging and discharging time
•


  What's in the box:

  1x Ecco 51.2v 100ah 5.12kWh Lithium Battery LiFePO4 48-100mb16

  Battery cables included

  Specifications:

  Battery Parameters:

  Battery Type is set to "USE."
  Bulk Charge Voltage is set to 56.4-56.6V.
  The Float Charge Voltage is set to 54V.
  Cut Off Voltage is set to 47V.

  Max. Charging Current	100 A
  Max. Continue Discharging Current	100 A
  Weight	Approx. 43 Kg
  Display	With display screen
  Protocol	CANBUS/MODBUS
  Parallel Connection	Parallel connection is optional (up to 15P).
  Cell	3.2V 100Ah
  Design life	More than 20 years
  Cycle Life	More than 3500 cycles at 100% DOD.
  IP Class	Ip31
  (W*D*H) mm	442 (17.40) 431 (16.97) 177 (6.99)
  Operating Temperature	Charging: 0 to +60°C

  Warranties:

  5 Years Warranty
  All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
