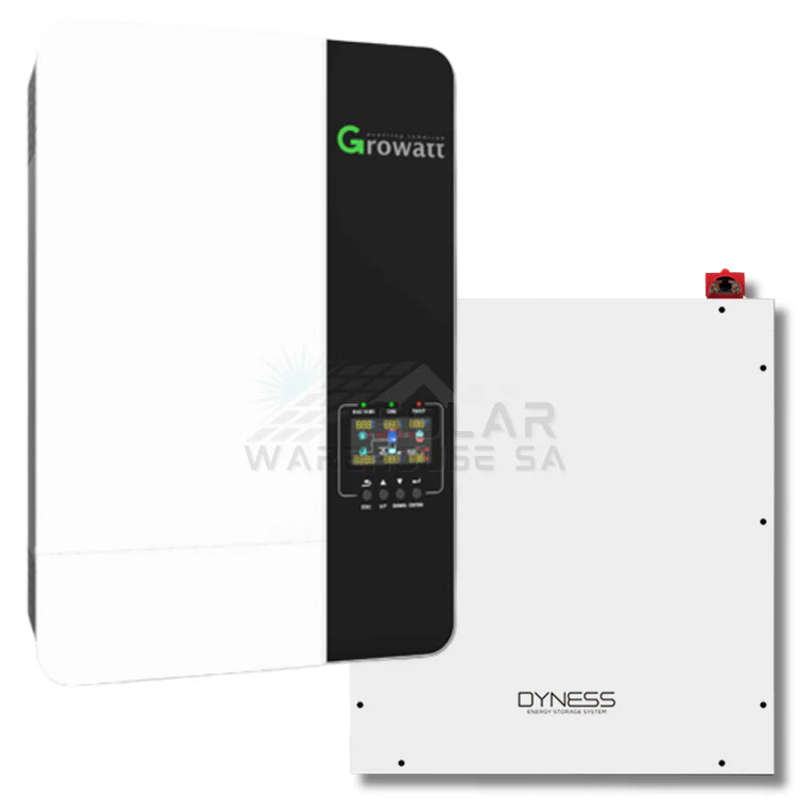

5KW MPPT Growatt Load Shedding Dyness 4.8KWh Combo Backup Power Kit

HYBRID INVERTER SOLAR KIT COMBOINVERTER SPECIFICATIONS:GROWATT SPF-5000 ES IS A 230(VAC) OUTPUT VOLTAGE OFF- GRID INVERTER FOR BACKUP POWER AND SELF CONSUMPTION APPLICATION, MAX PV INPUT VOLTAGE UP TO 450(VDC) . IT CAN ALSO WORK WITHOUT A BATTERY TO SAVE SYSTEM INVESTMENT COSTS.FunctionsIntegrated MPPT charger controller.Equalization charging function.Use with Batteries or without.Max PV input up to 450vDC.Choose grid or solar input priority.WIFI/GPRS remote monitoring.Parallel up to 6 inverters.PV & Grid Power combine if PV energy is insufficient for load.Flexible schedule for charging and discharging the batteries.Inverter Output [AC]Rated Power: 5000W.AC Voltage Regulation (Battery): 230VAC ± 5%.Surge Power: 10000VA for 5 sec.Efficiency (Peak): 93%.Waveform: Pure sine wave.Transfer Time: 10ms 20ms.Solar ChargerMaximum PV Array Power: 6000W.MPPT Range @ Operating Voltage: 120VDC 430VDC.Maximum PV Array Open Circuit Voltage: 450vDC.Maximum Solar Charge Current: 100 A.AC ChargerAC Charge Current: 80A.AC Input Voltage: 230 VAC.Selectable Voltage Range: 230 VAC.Frequency Range : 50 Hz/60 Hz (Auto sensing).PhysicalProtection degree: IP20.Height: 330 x 485 x 135mm.Weight: 12 kgKey FeaturesIntelligent Off-Grid & Hybrid modesPV and AC Power can power loads simultaneously2 x MPPTs with a wide input voltage range.BMS communication to most leading brands of Batteries (See List)Free monitoring via the app and remote upgrades.Single or unbalanced three phaseParallel up to 10 units.Independent generator interface.PV INPUT:Normal operating voltage:240Vdc Vmax PV:500VdcPV input voltage range:90-500Vdc Imax PV:27AFull load MPPT range: 240-450Vdc Rated Power 6200WMaximum Solar Charging Current:120AGRID/AC OUTPUT:Normal Output Voltage:220/230/240Vac Feed-in Grid Voltage Range:195-253Vac Feed-in Grid Frequency Range: 49-51+1HzNormal Output Curren: 15.7APower Factor Range: >0.99Maximum Conversion Efficiency (DC/AC) :97%Normal Operating Frequency: 50/60HzTWO LOAD OUTPUT POWER:Full Load:3600WMaximum Main load:3600W Maximum Second load: 1200W Main load cut off voltage:22Vdc Main load return voltage:26Vdc AC INPUT:Normal operating voltage:230Vac Maximum input current:30ANormal operating frequency:50/60HzSurge power:7200VAMaximum AC charging current:100ABattery voltage range: 20-33VdcMaximum battery current: 150AWhat's in the box1 x Inverter1 x User Manual1 x Wifi DongleBattery Specifications:DYNESS LITHIUM BATTERY Discover the Power of Independence with the Dyness A48100 4.8kWh Lithium BatteryEfficiency Meets PortabilityThe A48100 is not only powerful but also practical. It's lightweight and occupies minimal space, making it perfect for projects that require easy transport and minimal installation space. You won't find a more compact and portable energy storage solution anywhere else.LITHIUM BATTERY Specifications:Voltage: 48VNominal Capacity: 100AhRated Energy: 4,800WhCycle Life: 6,000 Cycles (25°C, 0.5C Rate, 90% DOD, EOL 60%)Maximum Continuous Discharge Current: 100AMaximum Discharge Current: 120A (3S)Rated Charging Current: 30AMaximum Continuous Charging Current: 100ALower Limit of Discharge Voltage: 42±0.1VOperating Temperature:Recharge: 0°C to +55°CDischarge: -20°C to +55°CWorking Humidity: 5% to 85% RHStorage Temperature: -10°C to +35°CBattery Size:59.7 x 50.4 x 15.5 cm55Kg Combo includes:1x Growatt Hybrid Inverter 48V 5KW Inverter Pure Sine Wave (Including WIFI) SPF 5000 ES (2 Years Warranty)1x Dyness Lithium Battery A48100 (48V100AH 4.8KWH) (10 Years Warranty)Battery cables and brackets included
