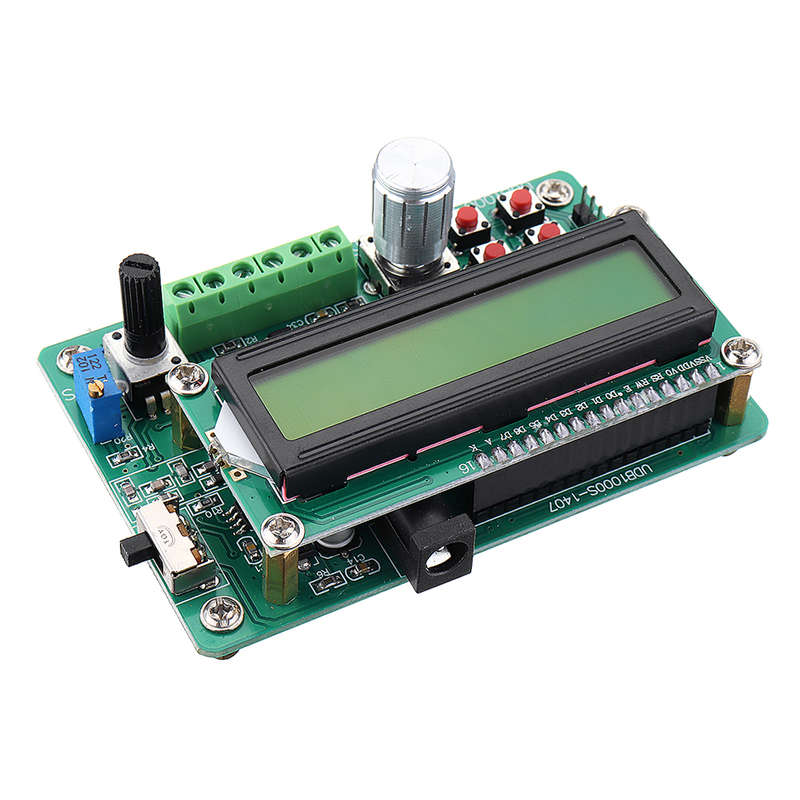

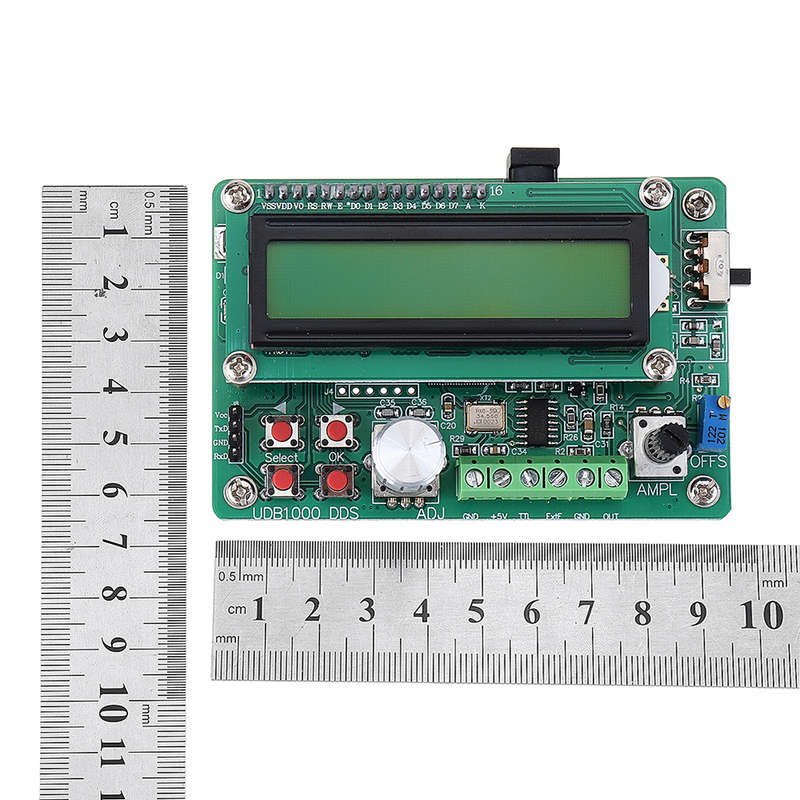

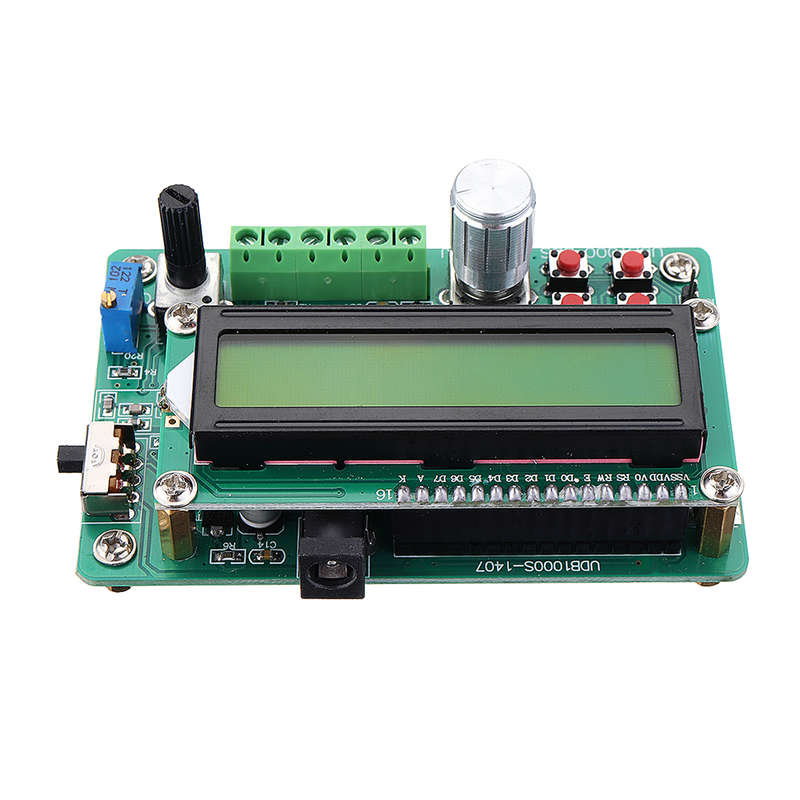

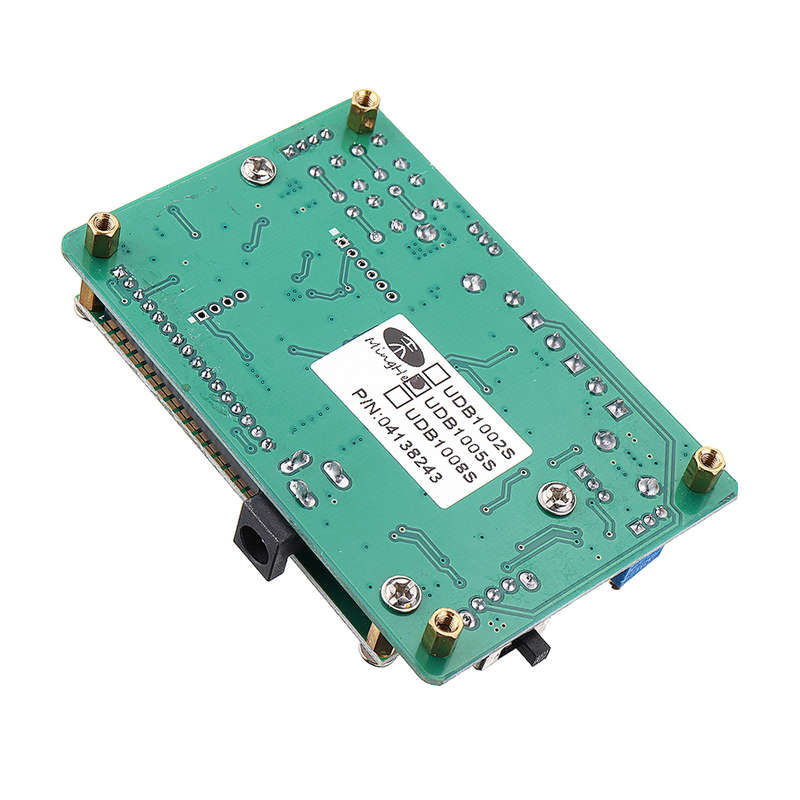

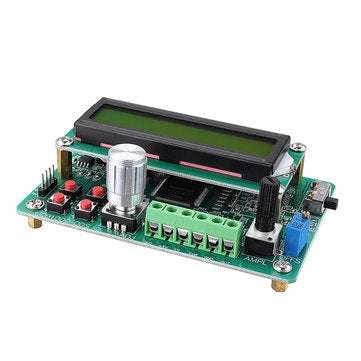

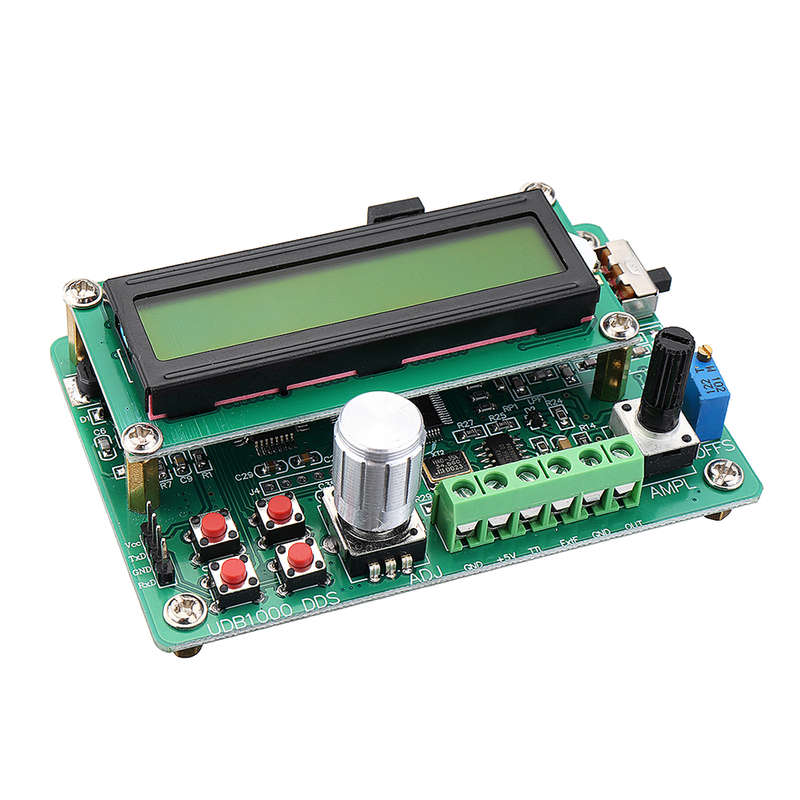

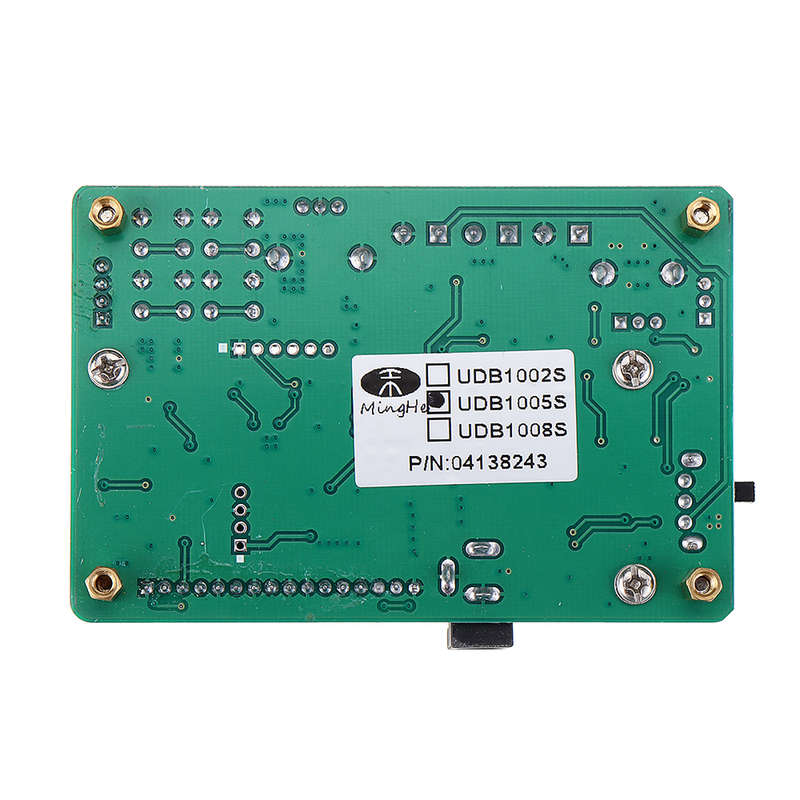

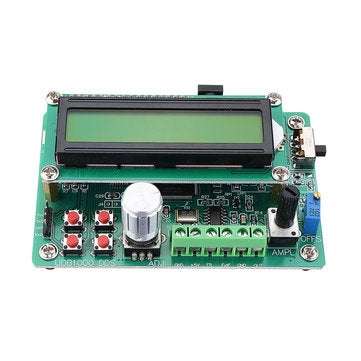

5MHz UDB1005S DDS Signal Generator LCD1602 Sweep Function Source Sine Square Triangle Sawtooth Wave

Description: This is a complete DDS signal source, Adopts DC5V power supply, can output the sine wave, square wave (Duty cycle Can be adjusted from1% -99%), triangle wave and sawtooth wave and various function waveform, maximum output can reach up to 10 Vpp, frequency range from 0.01 Hz-2 MHz. Resolution for 10 MHz, with TTL synchronization output and 60 MHz frequency meter. Specifications: * MAX Frequency: 5MHz * Wave form: Sine wave, square wave, triangle wave and sawtooth wave * Max output: 10Vpp(no-load) * Otput Resistance: 50&pm;10% * DC bias: &pm;2.5V * Duty cycle: 1%-99% * Display: LCD1602 * Output frequency range: * sine wave: 0.01Hz-5MHz * Square-wave: 0.01 Hz - 1MHz (the valid range) * Triangle wave: 0.01 Hz - 1MHz (the valid range) * Sawtooth wave: 0.01 Hz ~ 1MHz (the valid range) * Resolution: 0.01 Hz * Frequency stability: + 1 x 10-6 * Frequency error: + 5 x 10-6 * Sine wave distortion degree: < 0.8% (benchmark frequency 1kHz) * Triangle wave linearity: 0.01 Hz ~ 10KHZ 98%; 95%, 10 KHZ ~ 1MHz; * Square-wave rising and falling time: < 100ns * TTL output: TTL level: Vp - p. 3 p, Take 20TTL load load capacity * The external measurement functions: * Frequency range: 60MHz~1Hz * Vpp - signal amplitude: 0.5 20Vpp * Storage and append the: has 10 groups with v function parameters storage Package includes: 1 x DDS Function Signal Generator 1 x 5V Power Supply
