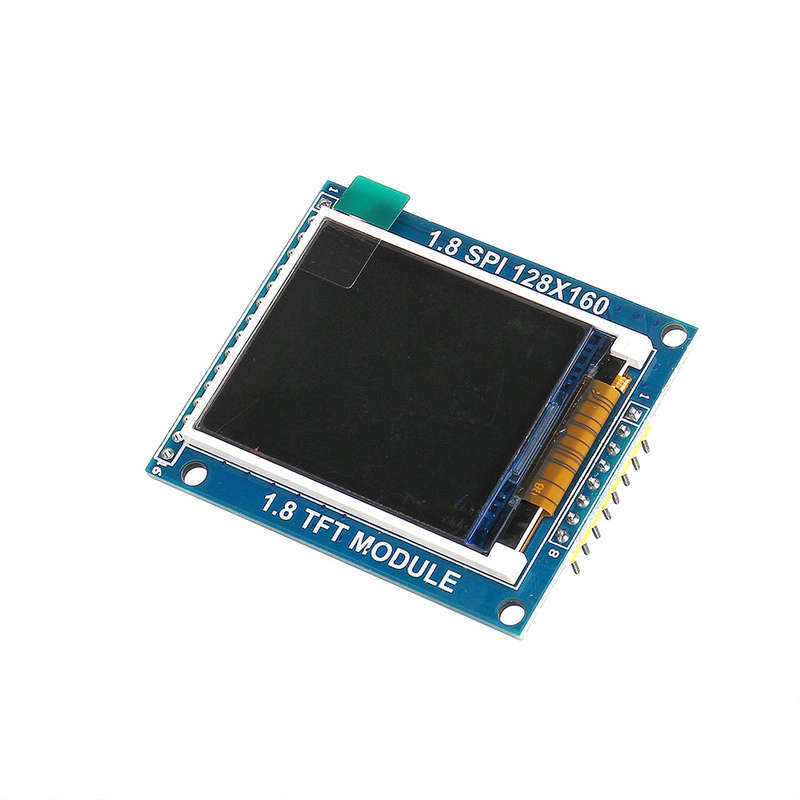

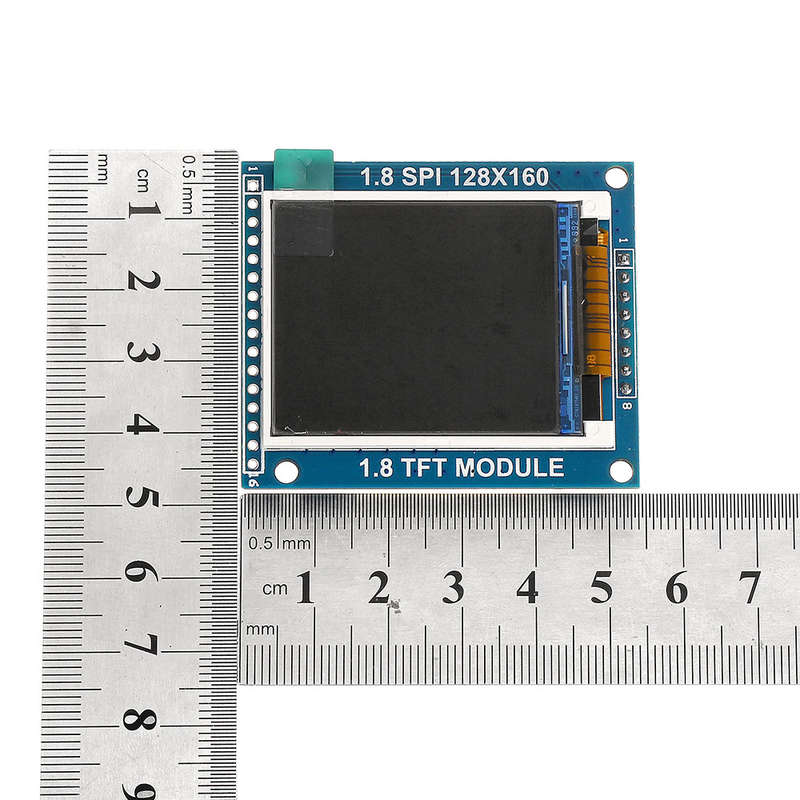

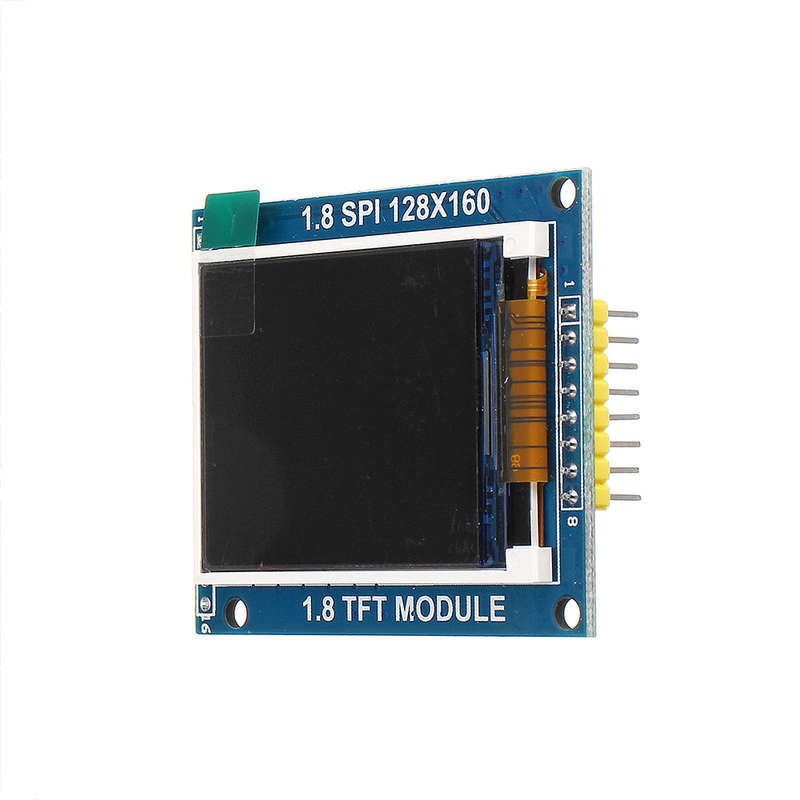

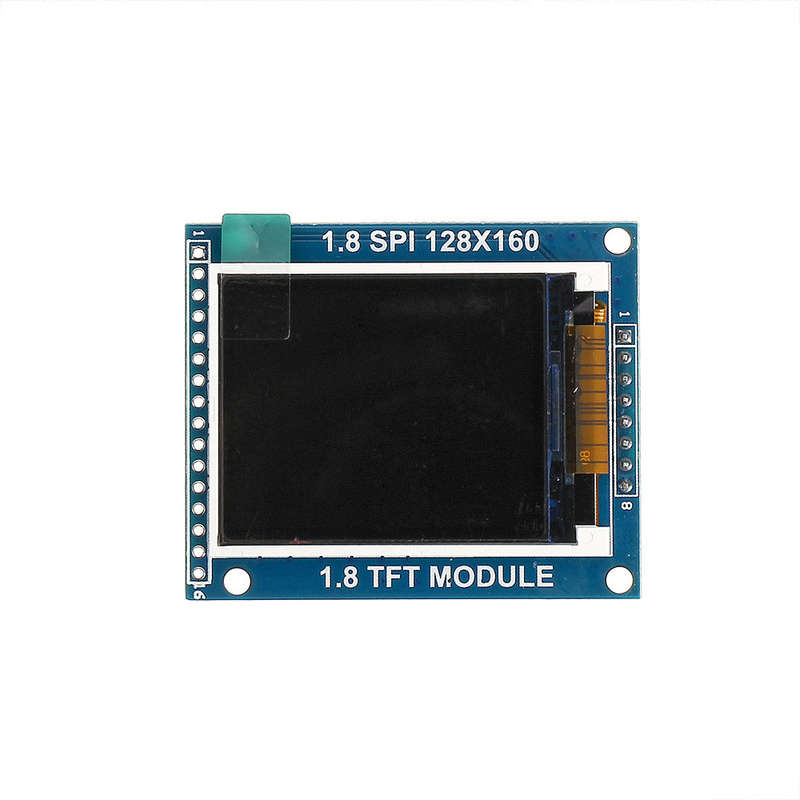

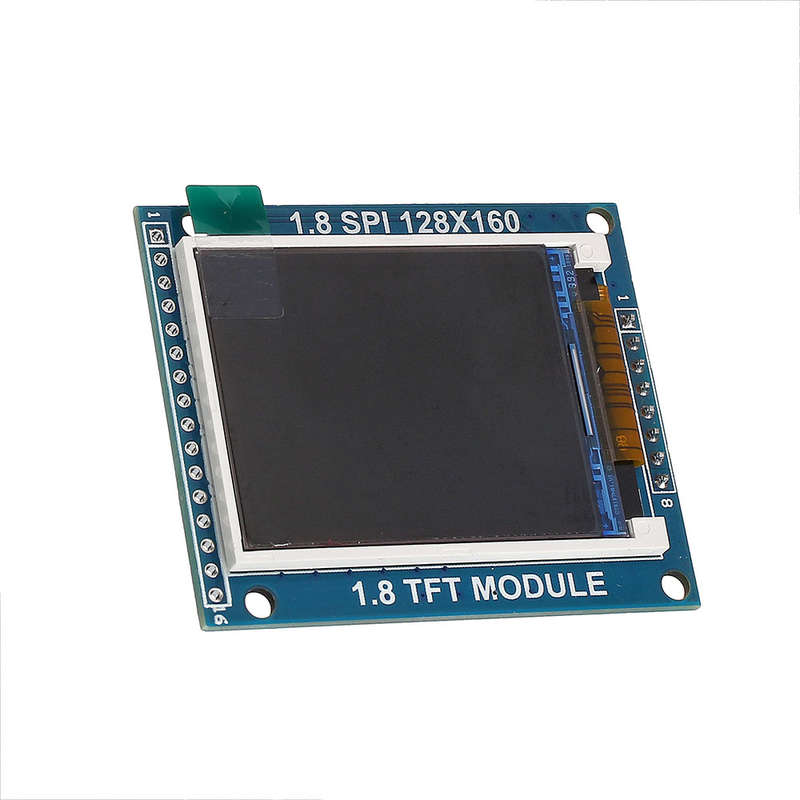

5pcs 1.8 Inch LCD TFT Display Module With PCB Backplane 128X160 SPI Serial Port

Feature:

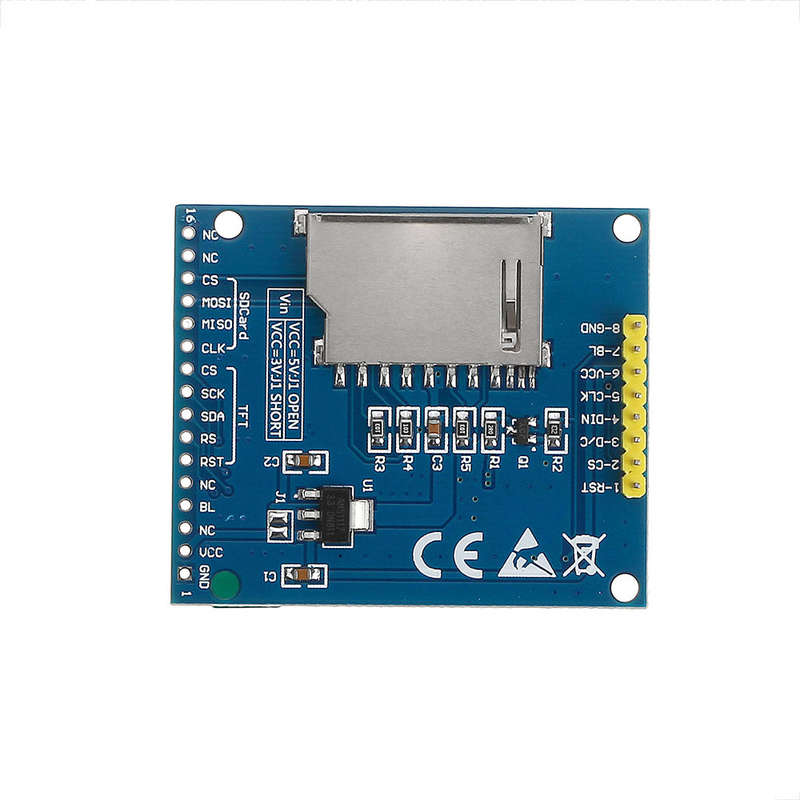

Resolution: 128X160 Driver IC: ILI9163/ST7735 Module with regulator IC supports 3.2V/5V power supply With SD card holder, you can do experiments like digital photo frame The module reserves the Nokia3310/5110 interface, supports the 1602 interface, and directly plugs in and out. IO for streamlined wiring: (only 3 IOs after optimization) 1. RST-- directly connected to the microcontroller reset signal terminal, this IO can save 2. D/C-- is connected to low level, and the chip selection is long-term effective. 3. D/C--connected to IO control register selection 4. DIN--connected to IO control data transmission 5. CLK--connected to IO control SPI bus 6. BL--connected to the high-level chip 3.3V backlight is always bright, then this IO can save IO for standard wiring: (6 IO) 1. RST--connected to IO control LCD reset 2. CE--connected IO control chip selection 3. D/C--connected to IO control register selection 4. DIN--connected to IO control data transmission 5. CLK--connected to IO control SPI bus 6. BL--connect IO control backlight on or off or PWM control brightness

Package includes:

5 x LCD module
