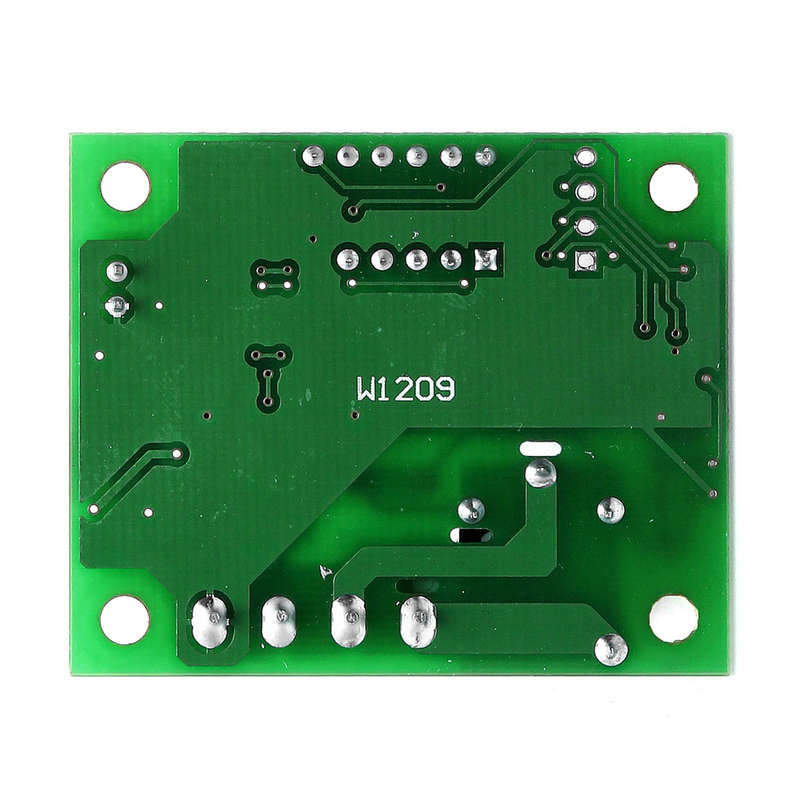

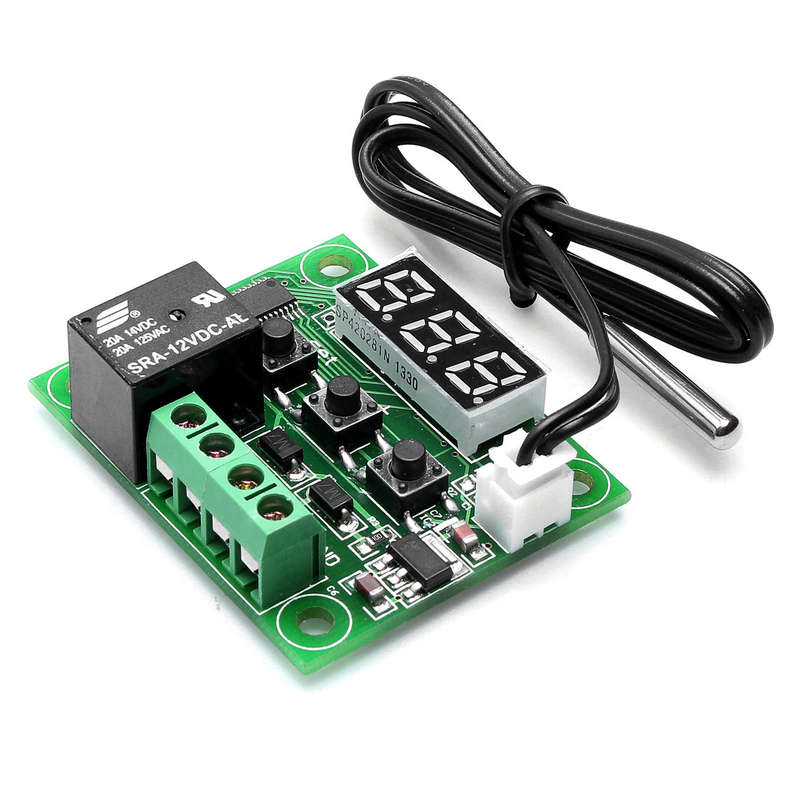

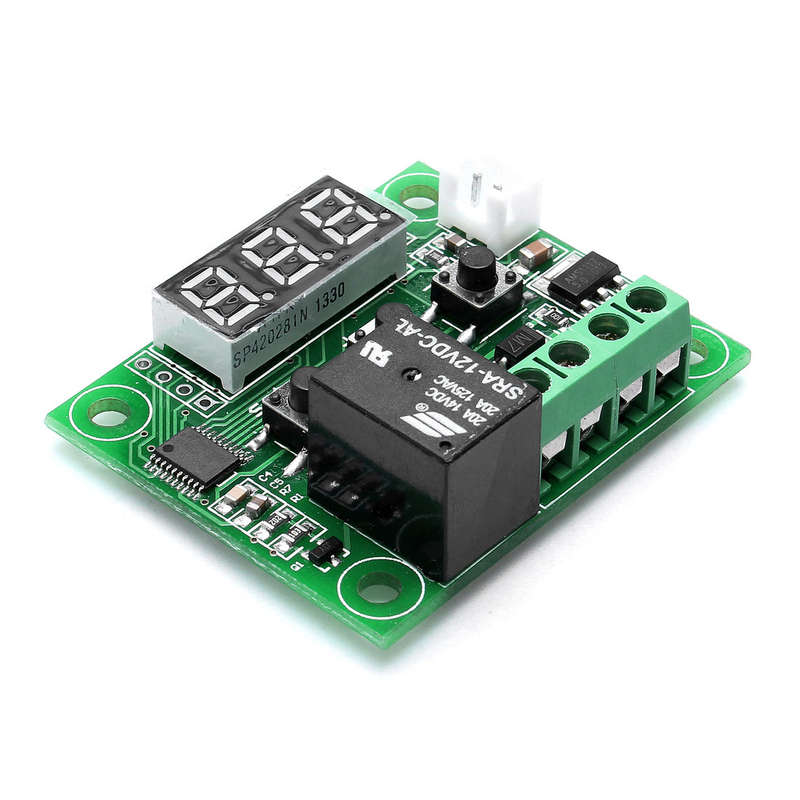

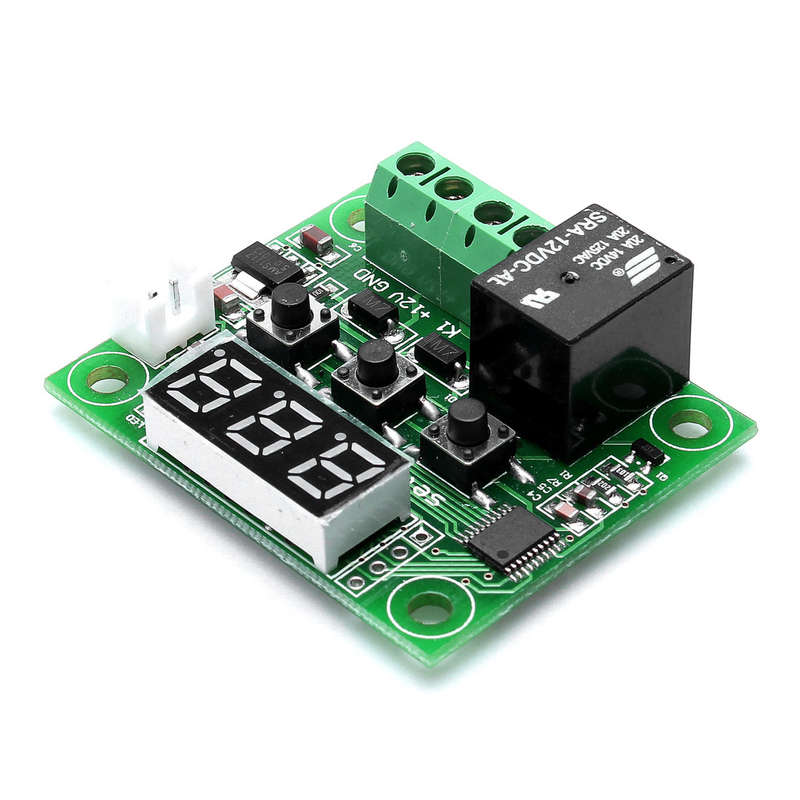

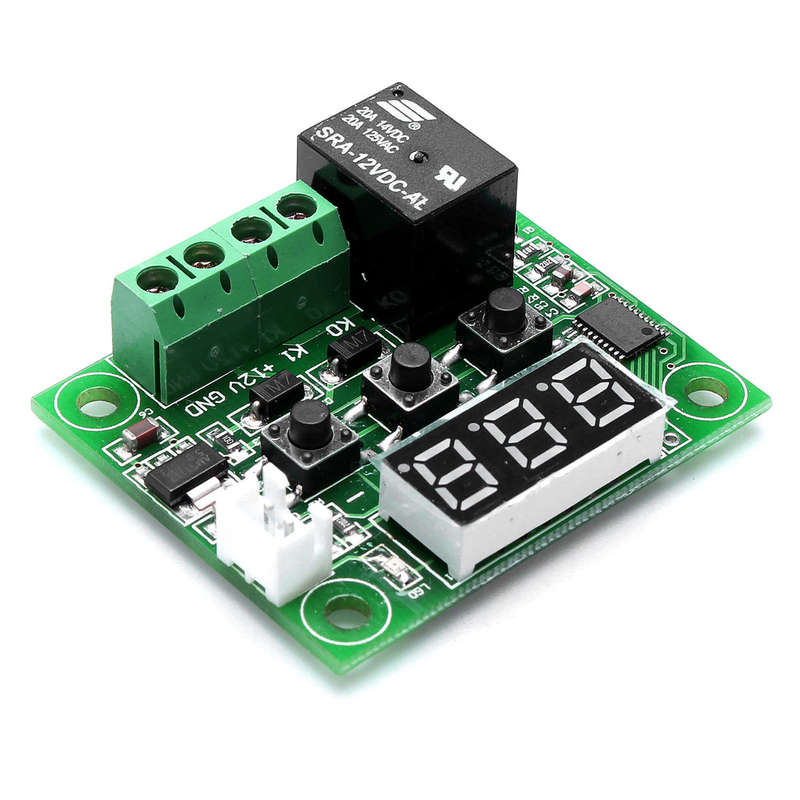

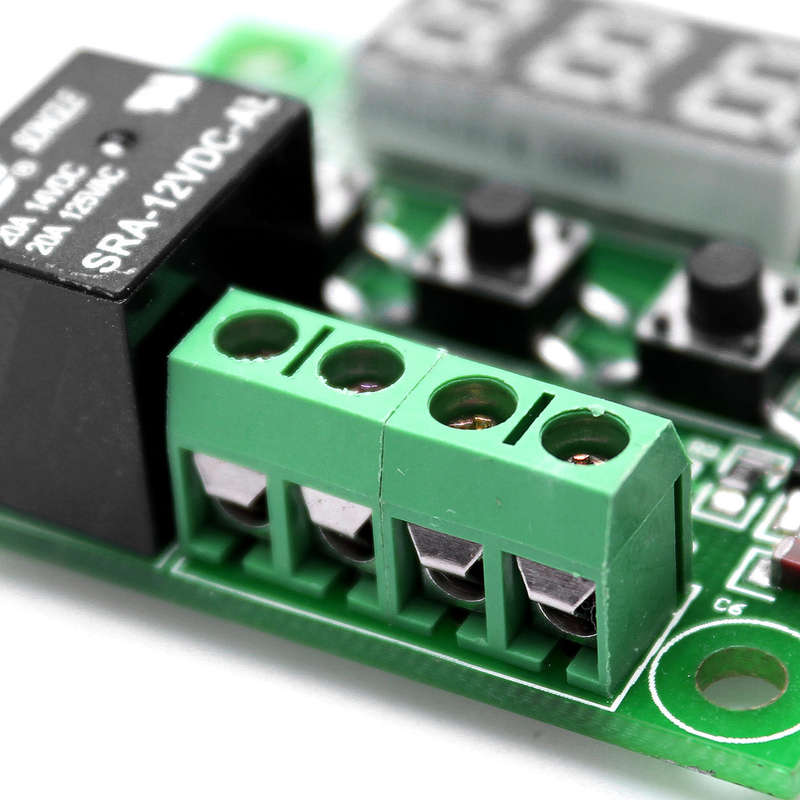

5pcs W1209 Digital DC12V Temperature Controller Heat Temp Control Switch Module

20 available / new

R488.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641113380

Description:

This Temperature Control Controller can used in the (liquid, mold, space) and other control heating, also can be used (box, the device, water, pet rooms, air conditioning) and other control refrigeration.

Specification:

Model: W1209
Temperature control mode: ON / OFF
Temperature range: -50-110 ﾣC
Resolution : When temperature is 0.1a , the resolution is -9.9~99.9, other temperature segment is 1ﾣC
Control accuracy: 0.1 ﾣC
Hysteresis accuracy: 0.1ﾣC
Refresh rate: 0.5S
High temperature protection: 0-110ﾣC
Supply voltage: DC 12V
Static current: a 35MA, attract current a 65MA
Output voltage: DC 12V
Output power: 10A relay
Measurement input: NTC (10K 0.5%) waterproof sensor
Environmental requirements: -10 ~ 60 ﾣC
Humidity: 20% -85%

Setting Table
Press The SET Key To Enter The Main Menu
Code	Code Description	Setting Range	The Factory Setting
P0	Cooling / Heating	C / H	C
P1	Hysteresis setting	0.1 - 15	2
P2	Maximum set cap	110	110
P3	Minimum set limit	-50	-50
P4	Temperature correction	-7.0 ~ 7.0 ﾣC	0
P5	Delayed start time	0 - 10 minute	0
P6	High temperature alarm	0 - 110 ﾣC	OFF
Off state to press + - to power, can restore to the factory settings
