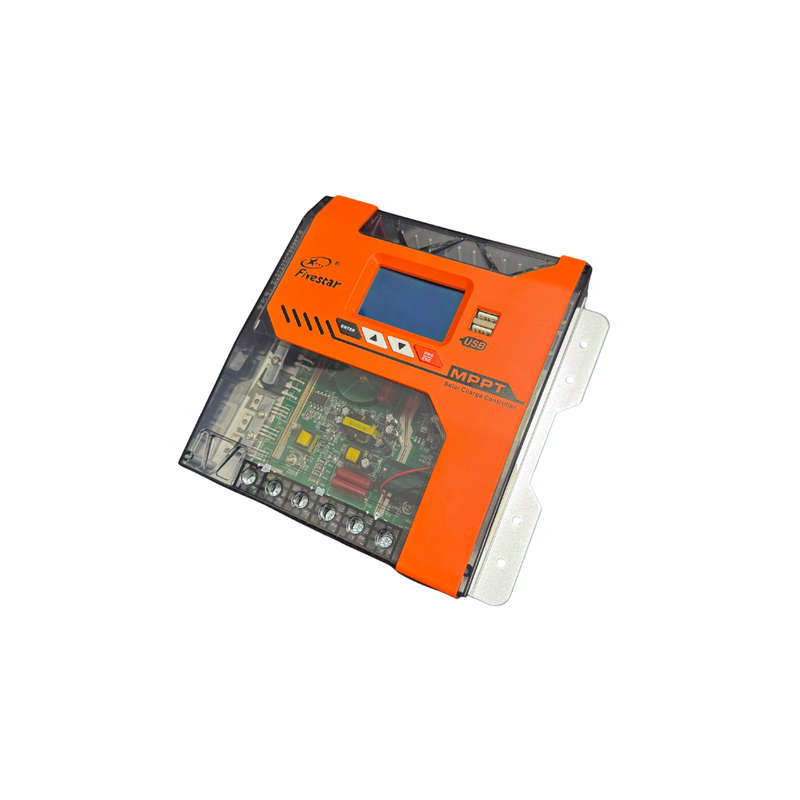

The Fivestar FSM-60A MPPT Charge Controller is engineered for larger-scale solar installations requiring stable, intelligent power regulation across a range of battery voltages. Designed with high-efficiency MPPT tracking and robust system monitoring, it ensures reliable operation and extended battery life in off-grid, backup, and hybrid systems.
Key Features:
-Smart Voltage Switching: Automatically adjusts for 12V, 24V, 36V, and 48V battery banks without manual configuration.
-High MPPT Efficiency: Tracks maximum power point with over 99% accuracy; system conversion efficiency up to 98%.
-Optimized Charging Profile: Incorporates 3-stage charging (Bulk, Absorption, Float) with improved boost functionality to maintain battery health.
-System Monitoring Display: Real-time LCD screen shows PV voltage/current, battery voltage, load current, and more.
-Tested for Safety & Compliance: CE and RoHS certified, ensuring quality and regulatory compliance.
Technical Specifications:
-Brand: Fivestar
-Model: FSM-OP60-60A
-Battery Voltage Range: 12V / 24V / 36V / 48V (auto-detection)
-Maximum PV Input Voltage: 180V
-Maximum PV Input Power:
-720W (12V)
-1440W (24V)
-2160W (36V)
-2880W (48V)
Control Technology: MPPT with advanced DSP processor
Charge Stages: Fast Charge, Constant Charge, Floating Charge
Display Type: Multi-data LCD panel
What's in the Box:
-1 × Fivestar FSM-60A MPPT Charge Controller
-1 × User Manual
Warranty & Installation Details:
Includes a 1-year warranty from date of purchase. For valid warranty support and long-term reliability, the unit must be installed by a qualified electrician. A COC (Certificate of Compliance) is required, and all installations must comply with SANS 10142 regulations.
