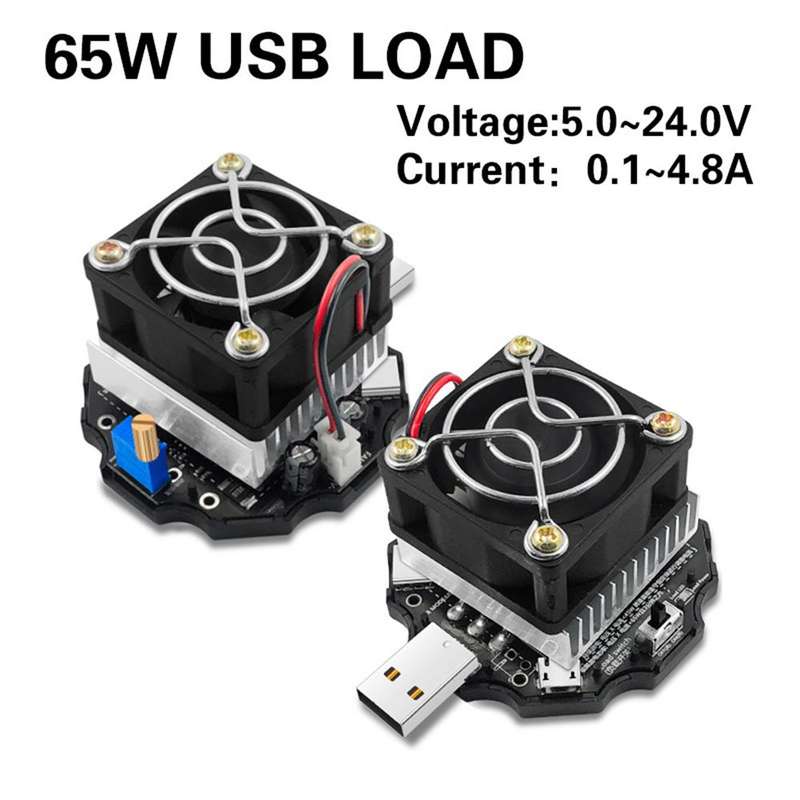

65W USB DC Electronic Load Resistor Discharge Battery Tester Discharge Capacity Meter Adjustable 5V

.size_table_start table,.size_table_start table tr td { border:2px solid #ddd;}.size_table_start table { width: 100%; min-height: 25px; line-height: 25px; text-align: center; border-collapse: collapse;}.size_table_start,.size_table_end {clear:both;}

Specifications:

Input interface: USB-A male input / Android Mirco USB female input / Type-C female input

Discharge tube type: IRFP260N (50A/200V)

Adjust potentiometer: precision multi-turn adjustable potentiometer

Cooling method: intelligent temperature control fan + all aluminum heat sink

Input voltage: DC5~24.0V

Adjustable current: 0.1~4.8A (maximum current is controlled within 65W according to the energy conservation law of the input voltage, according to P=UI calculation principle)

Constant current accuracy: ±2%

Current adjustment method: fine adjustment method using multi-turn resistance

Rated aging power: 45W (sustainable);

Ultimate aging power: 65W (within 3 minutes in a short time)

Fan control mode: temperature intelligent control (the higher the power, the higher the temperature, the faster the fan automatically increases the speed)

Maximum fan speed: MAX12000±10RPM (large wind speed super high speed fan with adjustable speed)

Product size: 77 x 63 x 45mm

Self-consumption current: <0.02A

Working temperature: -10~+60ﾣC

Working pressure: 80~106kPa

Package Included:

1 x Adjustable Electronic Load Battery Tester 5-24V
