6KVA 6000W SunSolar MPPT Pure Sine Wave Load shedding Combo 1x 5.09 KWH 106AH SVOLT Battery (5 Years Warranty)
Hybrid Inverter Specifications:

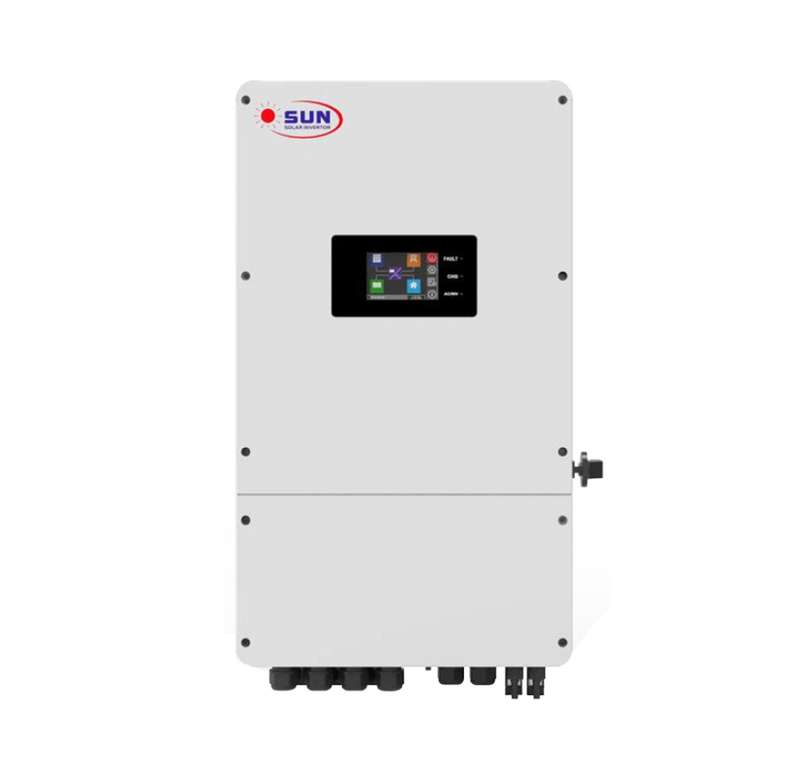

Sun Solar 6kw On & Off Grid Solar Inverter MPPT IP65 Solar Hybrid Inverter 5 Years Warranty S-2861+Wifi Dongle
INTRODUCTION
This is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer
uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and
easily accessible operation such as battery charging, AC/solar charging, and acceptable input voltage based
on different applications.
2.1 Features
1. Hybrid solar inverter (on /off grid inverter).
2. Output power factor COS =1.0.
3. Support peak valley charging control.
4. Configurable AC/Solar Charger priority via touch screen.
5. Smart battery charger design for optimized battery performance.
6. Compatible with Utility and generator.
7. Overload, over temperature, short circuit protection, fault record, history record.
8. Built-in WIFI data logger (optional).
9. Parallel operation up to 6 units.
10. Two channels output.
11. Reserved BMS communication port (RS485&CAN).
2.2 Basic System Architecture
The following illustration shows basic application of this inverter. It also includes following devices to have a
complete running system.
- Generator or Utility
- PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances
such as refrigerator and air conditioner
SPECIFICATIONS

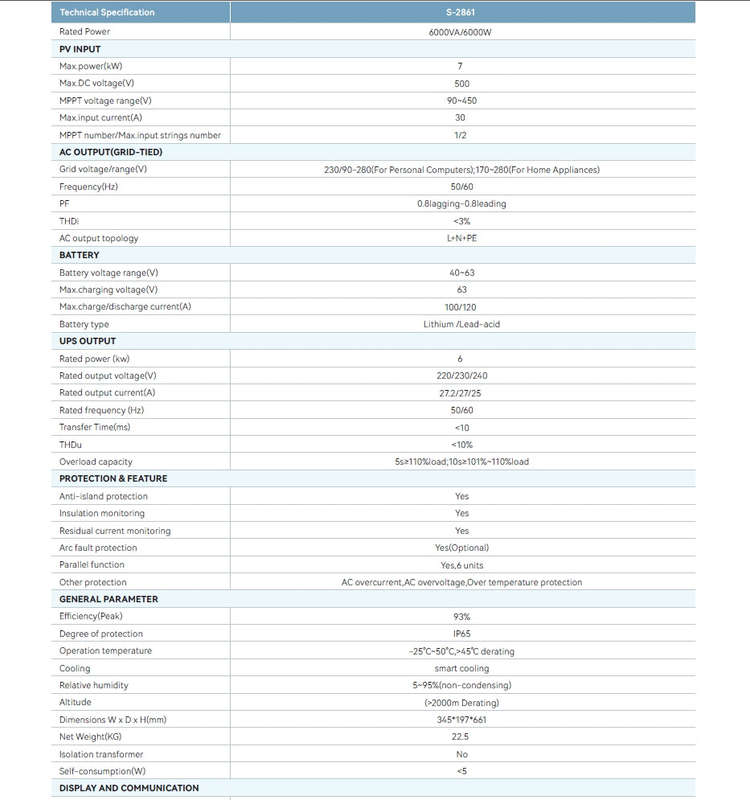

Table 1 Line Mode Specifications
INVERTER MODEL 6KW
Input Voltage Waveform Sinusoidal (utility or generator)
Nominal Input Voltage 230Vac
Low Loss Voltage 90Vac7V (wide range)
170Vac7V (narrow range);
Low Loss Return Voltage 100Vac7V (wide range)
180Vac7V (narrow range);
High Loss Voltage 280Vac7V
High Loss Return Voltage 270Vac7V
Max AC Input Voltage 280Vac
Nominal Input Frequency 50Hz / 60Hz (Auto detection)
Low Loss Frequency 401Hz
Low Loss Return Frequency 421Hz
High Loss Frequency 651Hz
High Loss Return Frequency 631Hz
Output Short Circuit Protection Circuit Breaker
Efficiency (Line Mode) >95% ( Rated R load, battery full charged )
Transfer Time 10ms typical (narrow range );
20ms typical (wide range)
INVERTER MODEL 6KW
Rated Output Power 6000W
Output Voltage Waveform Pure Sine Wave
Output Voltage Regulation 230Vac5%
Output Frequency 50Hz/60Hz
Max. Peak Efficiency 93%
Overload Protection 5s@110%load; 10s@101%~110% load
Surge Capacity 2* rated power for 5 seconds
Nominal DC Input Voltage 48Vdc
Cold Start Voltage 46Vdc
Low DC Warning Voltage 46.0Vdc0.5V
Low DC Warning Return Voltage 47.0Vdc0.5V
Low DC Cut-off Voltage 42.0Vdc0.5V
High DC Recovery Voltage 601Vdc
High DC Cut-off Voltage 631Vdc
No Load Power Consumption <100W
MPPT Solar Charging Mode
INVERTER MODEL 6KW
Max. PV Array Power 7000W
Nominal PV Voltage 360Vdc
Start-up Voltage 100Vdc +/- 10Vdc
PV Array MPPT Voltage Range 90-450Vdc
MAX. PV Input Current 30A
Max. PV Array Open Circuit Voltage 500Vdc
Max Charging Current
(AC charger + solar charger) 120A
Battery Specifications:
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval Motor Group which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
The SVOLT 48V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets - Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
Energy:5.09kWh
Installation Type: Wall Mounted
Battery type-Chemistry: LiFePO4
Nominal Voltage:48V
Nominal Capacity :106Ah
Energy Density:5427 KWh
Dimensions(LxWxH) :688 x 447 x 211mm
Weight (Approx.):49.5KGS
Terminal Type: M6
Terminal Torque:8.5NM
Case Material: SPCC
BMS build-in: Yes
Internal Resistance:<30mO
Efficiency - round trip:99%
Self Discharge per Month:<3%
Max parallel connectors:16Pcs
Series connections:Not Allowed
Cycle life (0.2C, 25C@80% DOD) Discharge Temperature:6000 Cycles
Charge Temperature :20 C to 65
Storage Temperature :0C to 50 C
Bluetooth(App) :Optional
LCD Screen: Optional
Heating Function: Optional
Voltage Window: Optional
Recommend Charge Voltage:43.2V-58.4V
Max Charge Voltage:57.60.20V
Recommend Charge current:58.40.20V
Max Discharging Voltage:43.20.20V
Max Continuous Discharge Current :100A
Peak Discharge Current:150A
Size:
688 x 447 x 211 mm
49.5 Kg
What's In the Box:
- 1 x SVOLT 48V 106Ah A-Grade Lithium Battery
- 1 x Red (Positive) Battery Cable
- 1 x Black (Negative) Battery Cable
- 1 x Ethernet cable
- 1 x Manual
- 1x Wall Mount Bracket
- 1x Warranty Card
5 Years Warranty
10 Years Service Warranty

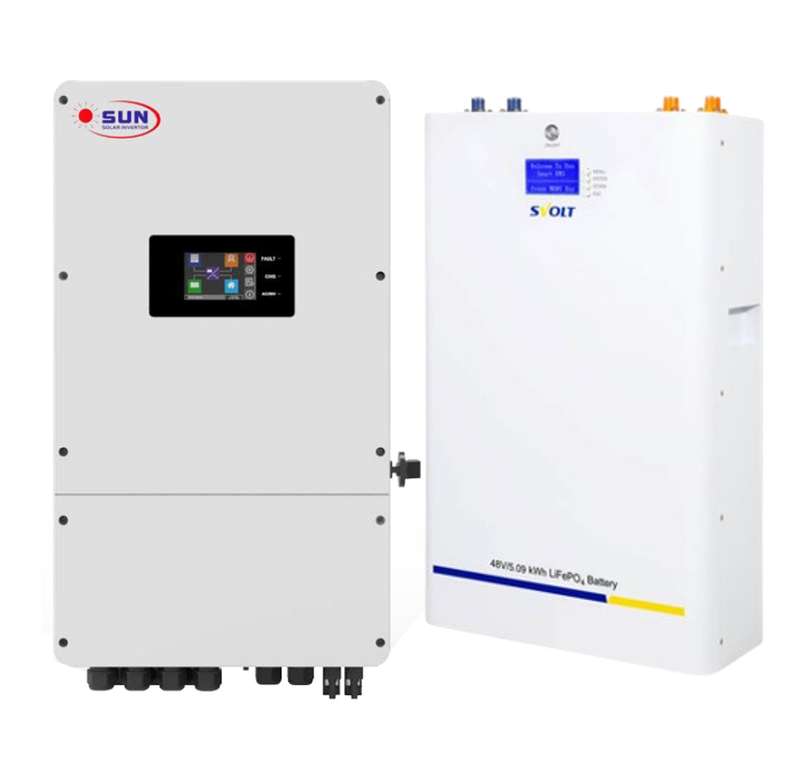

Combo includes:
- 1x SVOLT 48v 100Ah 5.09 kWh A-Grade Lithium Battery (5 Years Warranty)
- 1x Sun Solar 6kw On & Off Grid Solar Inverter MPPT IP65 Solar Hybrid Inverter 5 Years Warranty S-2861+Wifi Dongle (5 Years Warranty)
