Hybrid Inverter Solar Kit Combo 6KW MPPT Growatt & 5.12KWh Lithium Battery

Inverter Specifications

Features:

• Output power factor up to 1.0
• 2 times peak power ability
• Grid and Generator two AC inputs with integrated transfer switch
• Up to 6 units in parallel for capacity extension
• Plug-and-play quick connection PV terminals
• Support WiFi and GPRS remote monitoring
• Timing charging and output control
• Built-in dust-proof kit for harsh environments
• Pure sine wave AC output
• Solar and utility grid can power loads at the same time
• CAN/RS485 for BMS communication
• WIFI Dongle (INCLUDED)

Inverter Output:

• Battery Voltage: 48VDC
• Battery Type: Lithium/Lead-Acid
• Rated Power: 6000VA/6000W
• Parallel Capability: Yes, 6 units maximum
• Surge Power: 12000VA
• Waveform: Pure Sine Wave
• Transfer Time: 10ms typical, 20ms Max

Solar Charger:

• Maximum PV Array Power: 8000W
• MPPT Range @ Operating Voltage: 120VDC 450VDC
• Max. Input current per MPP tracker: 16A
• Maximum Solar Charger Current: 100A

AC Charger:

• Charge Current: 80A
• AC Input Voltage: 230VAC
• Selectable Voltage Range: 170-280 VAC (For personal Computers) ; 90-280 VAC (For Home Applications)
• WiFi Dongle Included

Battery Specifications

• Nominal Voltage (V): 51.2
• Nominal Capacity (Ah): 100
• Total Power (kWh): 5.12
• Best Operating Voltage Range (V): 43-54.5
• Short Circuit Protection: Yes
• Power-on Reverse Connection Protection: Optional
• Maximum Charging Voltage (V): 57.6
• Best Charging Voltage (V): 56.4 (Recommended)
• Maximum Continuous Output Power (W): 5500
• Maximum Momentary Output Power (W): 7500
• Local Parameter Configuration: Supported
• Max Installation Dimension (mm): 480170500
• Package Size (mm): 590290615
• Weight (kg): 49
• IP Class: IP 54
• Communication: RS485, RS232, CAN
• Design Life: 15 years

Combo Includes

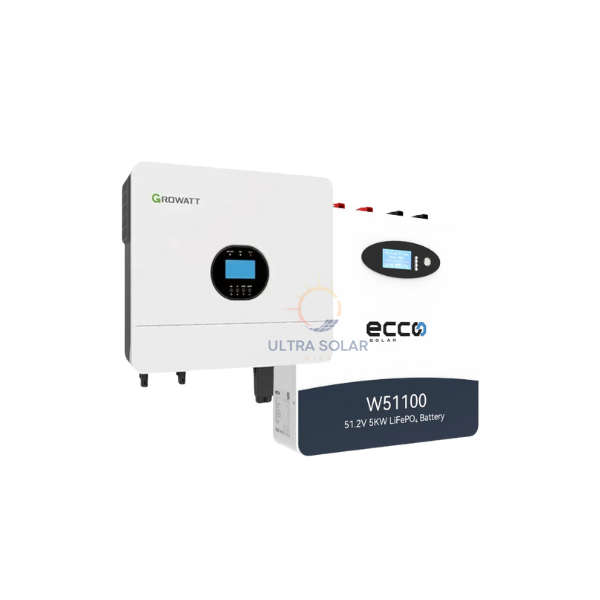

• 1x Growatt Off-Grid Solar Inverter 6kW 48VDC SPF6000ES (2 Years Warranty)
• 1x Growatt WiFi Dongle
• 1x Ecco 51.2V 100Ah 5.12kWh Lithium Battery W51100 Wall-Mounted (5 Years Warranty)
• Battery Cables Included
