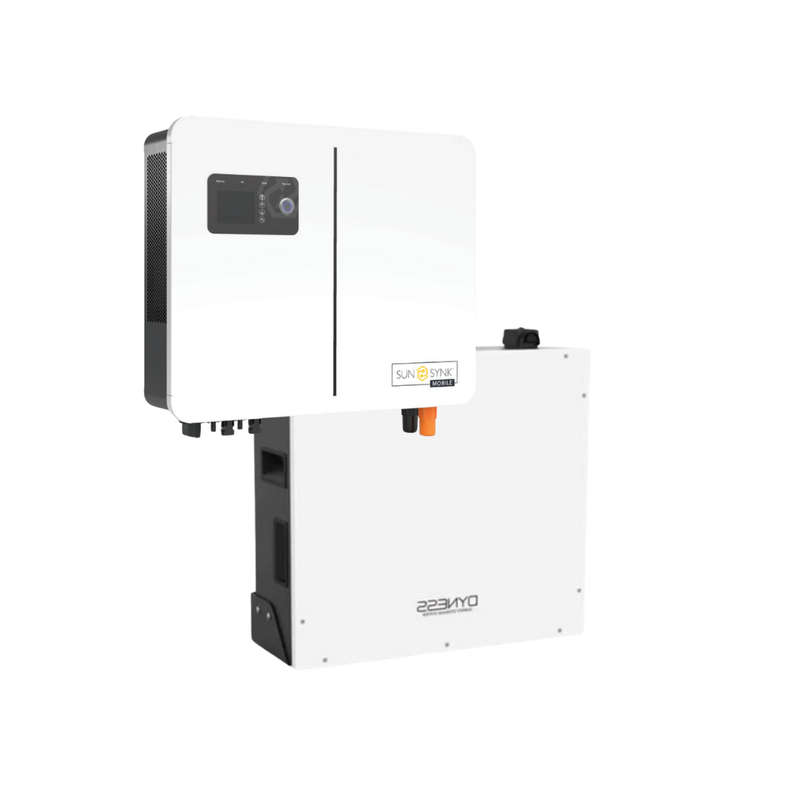

6KW Sunsynk Lynks Hybrid inverter + 1x 5.12kWh 1C Dyness Lithium Battery
Sunsynk 6kW Hybrid Inverter High-Efficiency Single-Phase Power
MANUAL - click here
DATA SHEET - click here
This solar package includes everything you need to start saving on electricity and reduce reliance on the grid:
-6kW Sunsynk Lynks Hybrid Inverter Smart inverter that manages solar, battery, and grid power efficiently.
-5.12kWh Dyness Lithium Battery (1C rated) Powerful, fast-charging battery with enough storage for essential appliances during load shedding or at night.
-Perfect for your normal size household , running essentials like fridges, lights, TVs, Wi-Fi, and more
-Expandable for future growth
-Compatible with backup and off-grid setups
Description:
Engineered for precision and reliability, the Sunsynk 6kW Hybrid Inverter is a powerful solution for residential and small commercial solar applications. Featuring advanced MPPT technology and flexible battery support, it offers high-efficiency energy conversion and intelligent power management.
Battery Input Capabilities
-Compatible with lithium-ion and lead-acid battery systems
-Operates at 48V nominal battery voltage
-Wide input voltage range: 40V 60V
-Programmable charge/discharge: Up to 100A charging and 130A discharging
-Recommended battery bank capacity: 100Ah 2000Ah
-Seamless communication with lithium batteries via integrated BMS
Solar PV Input Features
-Dual MPPT input channels with 8000W total DC input
-High MPPT efficiency of 99.9% for maximum energy harvest
-Operational voltage range: 120V 450V with 500V max input
-15A max current per string (x2)
AC Output (Backup & Essential Load)
-Delivers 6000W continuous power with up to 12000VA surge
-Single-phase 220/230/240V output (configurable)
-High-quality waveform with <3% THD
-Fast switching with 10ms transfer time
-Max bypass current: 40A
AC Input (Grid Supply & Battery Charging)
-6000W input and feed-to-load capability
-Auto-adjusts to local grid voltage and frequency
-Supports full passthrough to essential loads
-Bypass current rated up to 40A
Efficiency and Performance
-Peak inverter efficiency: 97.6%
-Battery-to-load efficiency: 94%
-European weighted efficiency: 97%
Included Accessories
-Main inverter unit
-Wall-mounting bracket and fasteners
-Sunsynk Wi-Fi data logger
-CT coil with 2-pin AERO connector
-AC connectors (load and grid)
-Battery connectors and MC4 solar connectors
Dimensions and Weight
-Size: 514mm x 420mm x 140mm
-Weight: 15.5 kg
DL5.0C 5.12kWh 51.2V LiFePO Battery Compact & Scalable Storage
1 C DYNESS LITHIUM BATTERY
Description:
Advanced Lithium Power for Modern Solar Systems
The DL5.0C LiFePO battery delivers 5.12kWh of stable energy with high efficiency and robust cycle life. Engineered for residential and commercial solar storage, it supports both hybrid and off-grid applications. Its modular design enables scalable configurations for expanding energy needs.
Key Features:
High-Performance Energy Storage
-Nominal Energy Output: 5.12kWh
-Capacity: 100Ah
-Nominal Voltage: 51.2V
-Depth of Discharge (DOD): 90%
-Operating Voltage Range: 44.8V to 57.6V
-Cycle Life: 6000 cycles (0.5C at 80% DOD)
Efficient Charging & Discharging
-Recommended Charge/Discharge Current: 50A
-Max Charge Current: 75A
-Max Discharge Current: 100A
-Peak Current: 110A for 15 seconds
-C-Rate: 0.5C standard, 1C max discharge
Built for Versatility and Scale
-Supports hybrid and off-grid setups
-Expandable up to 50 units in parallel
-Compact and wall-mountable (Dimensions: 558×545×150 mm)
-Net Weight: 54kg
Smart Operation & Protection
-Communication Interfaces: CAN, RS485, RS232
-Protection Level: IP20
-Charging Temperature: 055°C (with heating function down to -20°C)
-Discharging Temperature: -2055°C
Certified for Safety and Reliability
-Safety Standards: UN38.3, CE-EMC, IEC62619, CEI-021
Warranty & Installation Compliance
BATTERY & INVERTER - 10 YEAR WARRANTY
To qualify for warranty support, the SOLAR PANELS, SUNSYNK INVERTER AND DYNESS DL5.0C battery must be installed by a registered wireman or master electrician. Installation must comply with SANS 10142 regulations and include a valid Certificate of Compliance (COC). Warranty claims require proof of compliant installation and documentation.
