5KVA 5000W Luxpower MPPT Hybrid Inverter + 1x 5.12kWh Lithium Ion Dyness Battery - LuxPower & Dyn...

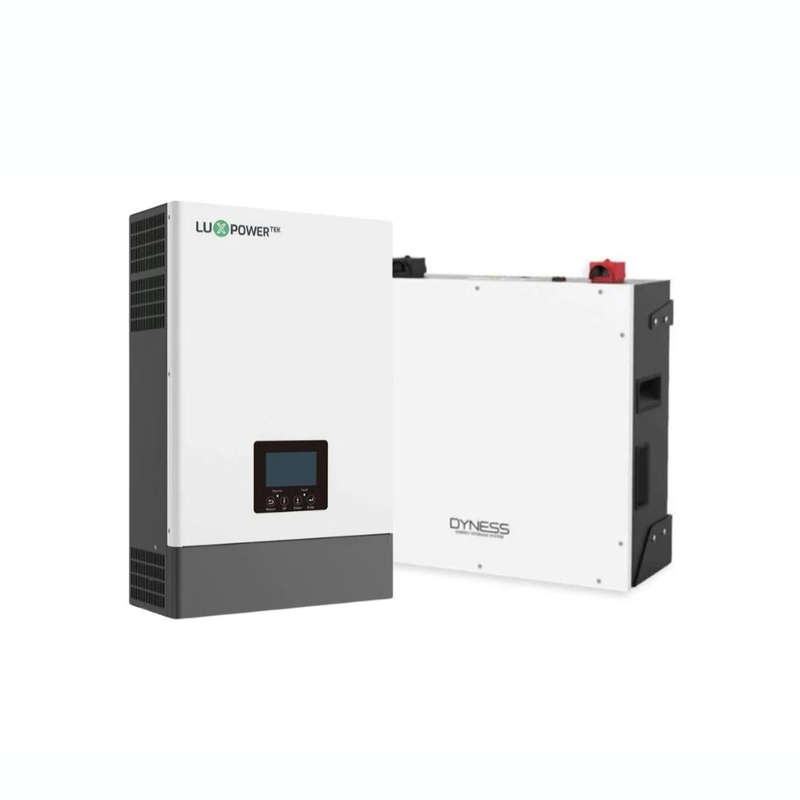

5KVA 5000W Luxpower MPPT Hybrid Inverter + 1x 5.12kWh Lithium Ion Dyness Battery - LuxPower & Dyness Combo

Discover the robust synergy of the LuxPower 5kVA MPPT Hybrid Inverter and the Dyness 5.12kWh Lithium Battery, designed to power your off-grid solar system efficiently.

LuxPower 5kVA Hybrid Inverter

• Dual high voltage MPPT inputs and maximum PV input of 6000W.
• Supports both off-grid and hybrid modes and can power PV and AC loads simultaneously.
• Compatible with a wide array of lithium batteries for seamless BMS communication.
• App-enabled remote monitoring and firmware upgrades.
• Supports single or unbalanced three-phase setups and can be paralleled up to 10 units.

Specifications

PV Input:

• Operating Voltage: 240Vdc, Max: 500Vdc
• Input Range: 90-500Vdc, Max Current: 27A
• MPPT Range: 240-450Vdc, Rated Power: 6200W
• Max Solar Charging: 120A

Grid/AC Output:

• Normal Voltage: 220/230/240Vac
• Grid Voltage/Frequency Range: 195-253Vac / 49-51+1Hz
• Output Current: 15.7A, Efficiency: 97%

Included Components

• 1 x Luxpower Inverter
• 1 x Wifi Dongle
• User Manual

Dyness 5.12kWh Lithium Battery

• High-quality LiFePO4 battery designed for solar systems.
• Model BX51100 with a battery management system for optimal performance.
• Ideal for renewable energy applications such as solar panels.

Specifications

• Capacity: 5.12kWh / 100Ah, Voltage: 51.2 Vdc
• Charge Voltage: 56.5 Vdc, Weight: 59kg
• Communication: CAN/RS485

Download Datasheet | User Manual

Combo Includes:

• 1x Dyness 5.12 kWh Lithium Battery BX51100
• 1x Luxpower 5kW + Wifi Dongle Inverter
• Battery Cables and Brackets

Warranty: Ensure installation by a certified electrician with a compliance certificate to maintain warranty eligibility.
