6KW Sunsynk Lynks Hybrid Inverter – High-Efficiency Single-Phase Power + WIFI

Title:
Sunsynk 6kW Hybrid Inverter High-Efficiency Single-Phase Power

MANUAL - click here

DATA SHEET - click here

Description:

Engineered for precision and reliability, the Sunsynk 6kW Hybrid Inverter is a powerful solution for residential and small commercial solar applications. Featuring advanced MPPT technology and flexible battery support, it offers high-efficiency energy conversion and intelligent power management.

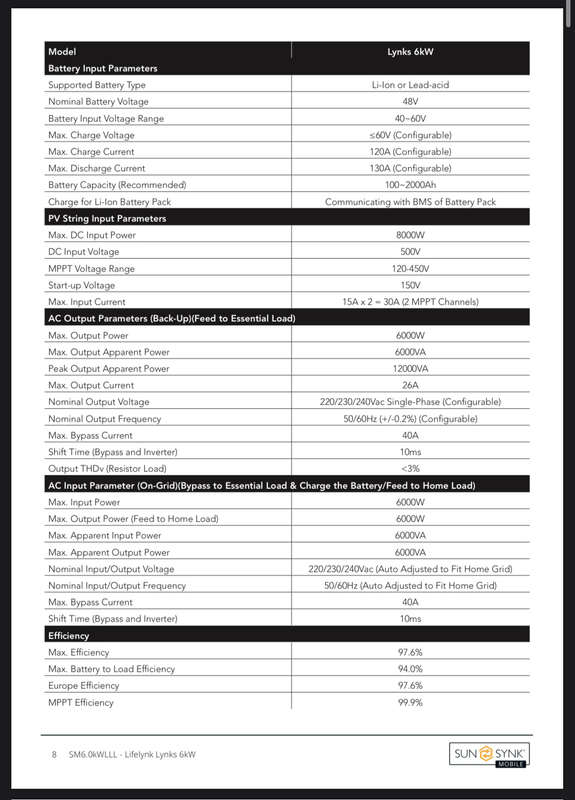

Battery Input Capabilities

• Compatible with lithium-ion and lead-acid battery systems

• Operates at 48V nominal battery voltage

• Wide input voltage range: 40V 60V

• Programmable charge/discharge: Up to 100A charging and 130A discharging

• Recommended battery bank capacity: 100Ah 2000Ah

• Seamless communication with lithium batteries via integrated BMS

Solar PV Input Features

• Dual MPPT input channels with 8000W total DC input

• High MPPT efficiency of 99.9% for maximum energy harvest

• Operational voltage range: 120V 450V with 500V max input

• 15A max current per string (x2)

AC Output (Backup & Essential Load)

• Delivers 6000W continuous power with up to 12000VA surge

• Single-phase 220/230/240V output (configurable)

• High-quality waveform with <3% THD

• Fast switching with 10ms transfer time

• Max bypass current: 40A

AC Input (Grid Supply & Battery Charging)

• 6000W input and feed-to-load capability

• Auto-adjusts to local grid voltage and frequency

• Supports full passthrough to essential loads

• Bypass current rated up to 40A

Efficiency and Performance

• Peak inverter efficiency: 97.6%

• Battery-to-load efficiency: 94%

• European weighted efficiency: 97%

Included Accessories

• Main inverter unit

• Wall-mounting bracket and fasteners

• Sunsynk Wi-Fi data logger

• CT coil with 2-pin AERO connector

• AC connectors (load and grid)

• Battery connectors and MC4 solar connectors

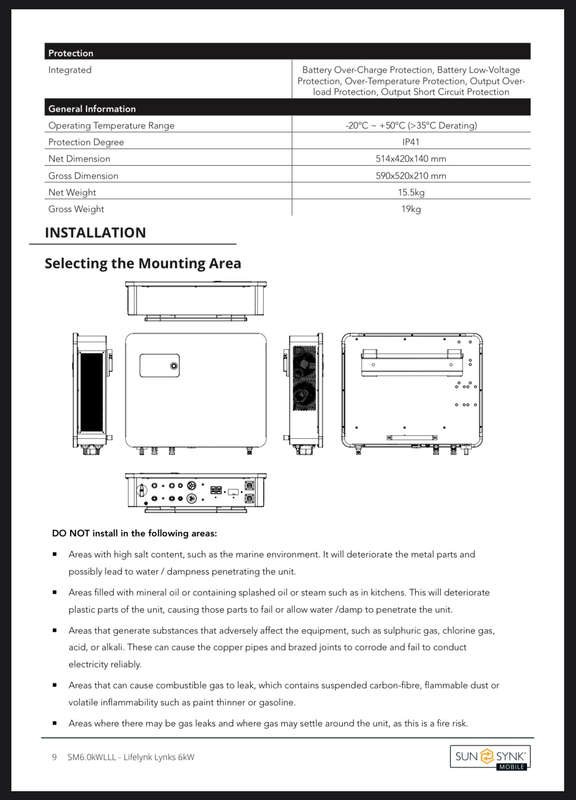

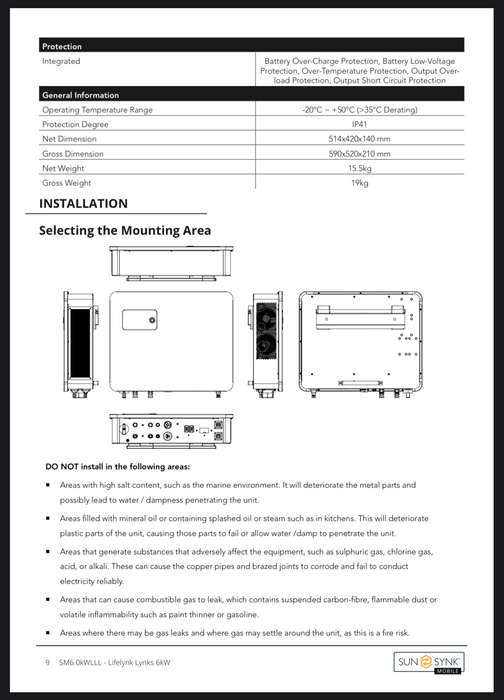

Dimensions and Weight

• Size: 514mm x 420mm x 140mm

• Weight: 15.5 kg

Important Shipping Note

Shipping rates reflect single-unit costs. Multi-unit orders will receive separate freight quotations.

Warranty

This inverter is covered by a 10-year repair warranty.

Important:

Installation must be completed by a registered electrical wireman or Master electrician with valid Department of Labour certification. A compliant Certificate of Compliance (COC) must be issued post-installation. All installations must meet SANS 10142 standards. Warranty claims submitted without installation photos, valid COC, and installer credentials may be rejected.
