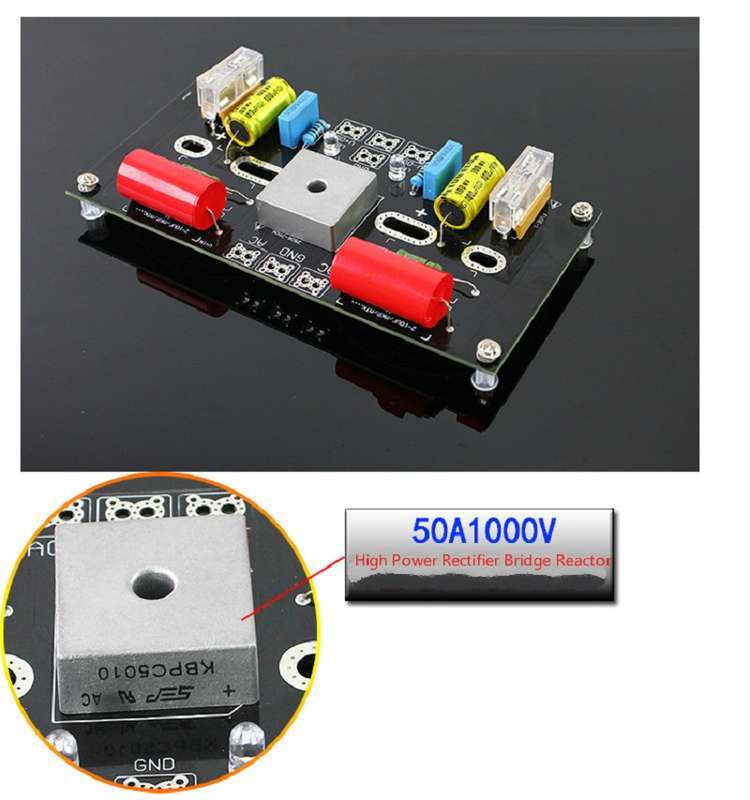

75V 67000UF Power Amplifier Rectifier Filter Amp Power Supply Board 1000W Two Capacitor Screws

Features:

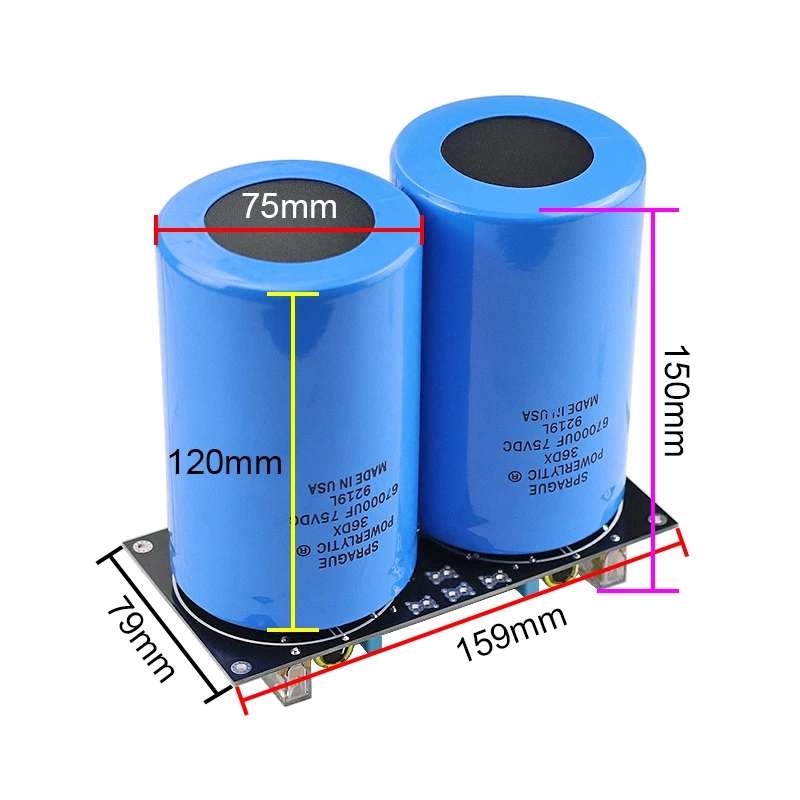

Capacitor size: 120MM * 75MM, board size: length 160MM, width 80MM, board thickness 1.6mm

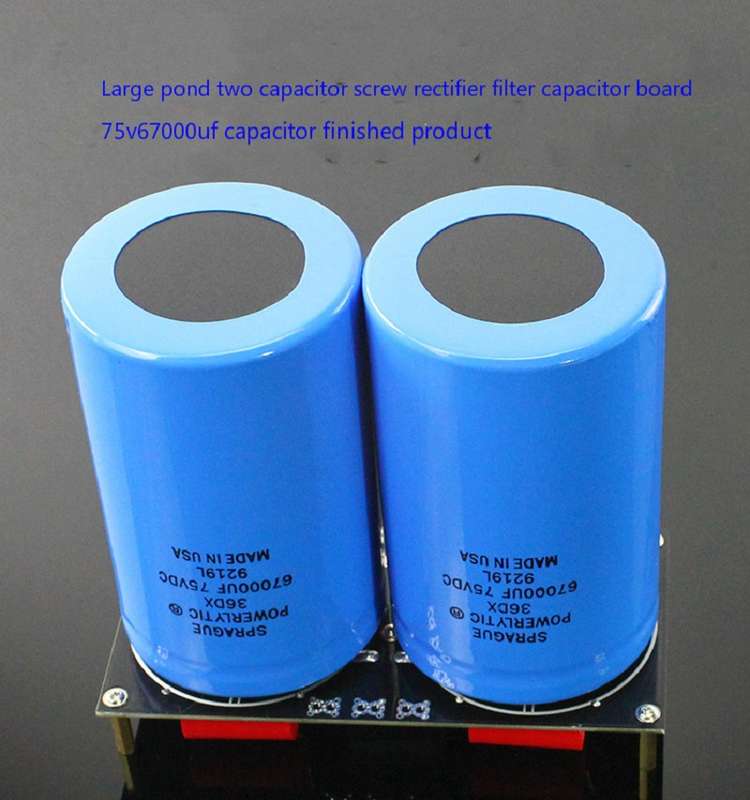

This filter board uses Spiral SPRAGUE36DX series 75V67000UF screw type capacitor parameters as follows:

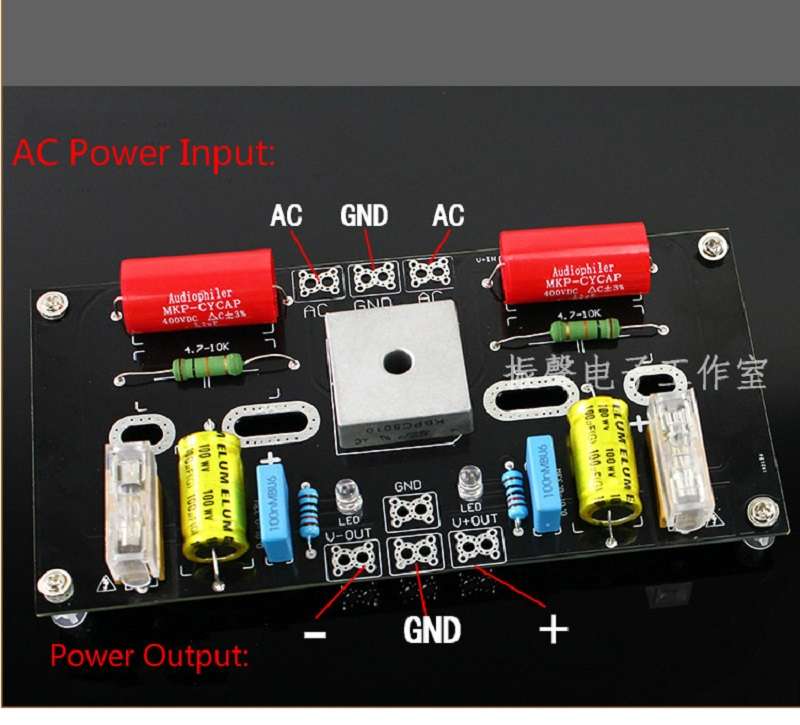

PCB material: glass fiber double panel, black oil double-sided tin plating process Input voltage AC: support dual AC within 50V Input current: within 50A Output voltage DC: The output DC voltage is about 1.43 times the input voltage (AC voltage * 1.43 = output DC voltage) Can use for within 1000W ampliifer Wiring method: soldering or plugging Weight: 1.6KG
Package included:
1 x Rectifier
(Accessories: 7 sets of 6.3 male and female plugs, pillars, pillar screws.)
