7Pin 0.96 Inch OLED Display 12864 SSD1306 SPI IIC Serial LCD Screen Module Geekcreit for Arduino - p

7Pin 0.96 Inch OLED Display 12864 SSD1306 SPI IIC Serial LCD Screen Module Geekcreit for Arduino - p

20 available / new
R464.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643370972

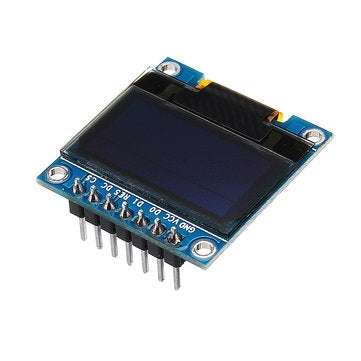

Feature: Control chip: SSD1306 Display area: 21.744 x 10864mm Physical size: 27.3 x 27.8mm Interface type: Default 4-wire SPI Switchable rear resistor to use 3-wire SPI, IIC interfaces Number of pins: 7 Display color: yellow blue Working temperature: -40~70ᆪC Net weight: 5g Interface definition: 1> GND (Power ground) 2> VCC (Power + 3.3-5V) 3> D0 (SPI clock line for SPI interface and IIC clock line for IIC interface) 4> D1 (SPI data line for SPI interface and IIC data line for IIC interface) 5> RES (OLED reset, OLED needs to be reset once after power-on) 6> DC (SPI data/command selection pin, used to set IIC address when IIC interface) 7> CS (OLED SPI chip select, active low, if you do not want to use must be grounded) Package includes: 1 x 0.96 Inch OLED Display Module

Wiring method:

Wiring 1: MCU hardware SPI connection method: If there is only one device on the SPI bus, you can directly ground the CS of the OLED screen, which saves an IO.
Wiring 2: MCU IO analog SPI connection mode: If there is only one device on the SPI bus, you can directly ground the CS of the OLED screen, which saves an IO.
Wiring 3: MCU analog IIC connection method: IIC address: DC is low = 0x78 DC is high = 0x7A Generally DC grounding
Wiring 4: MCU hardware IIC connection method: IIC address: DC is low = 0x78 DC is high = 0x7A Generally DC grounding
As below pictures show:
