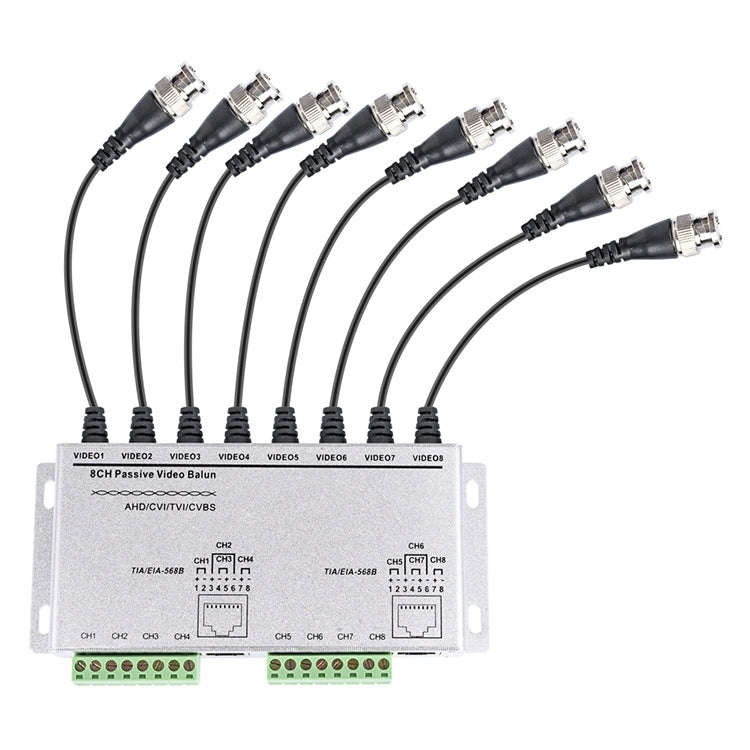

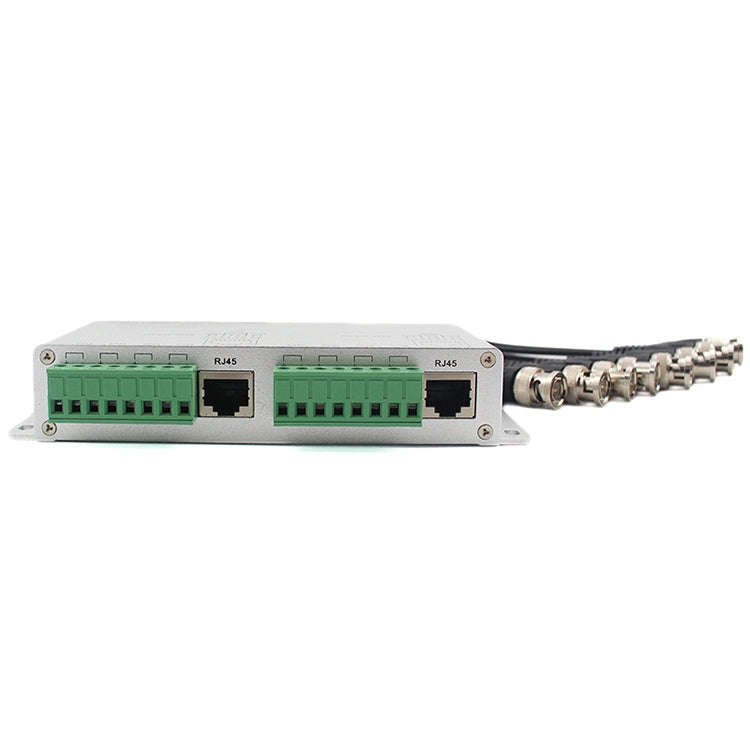

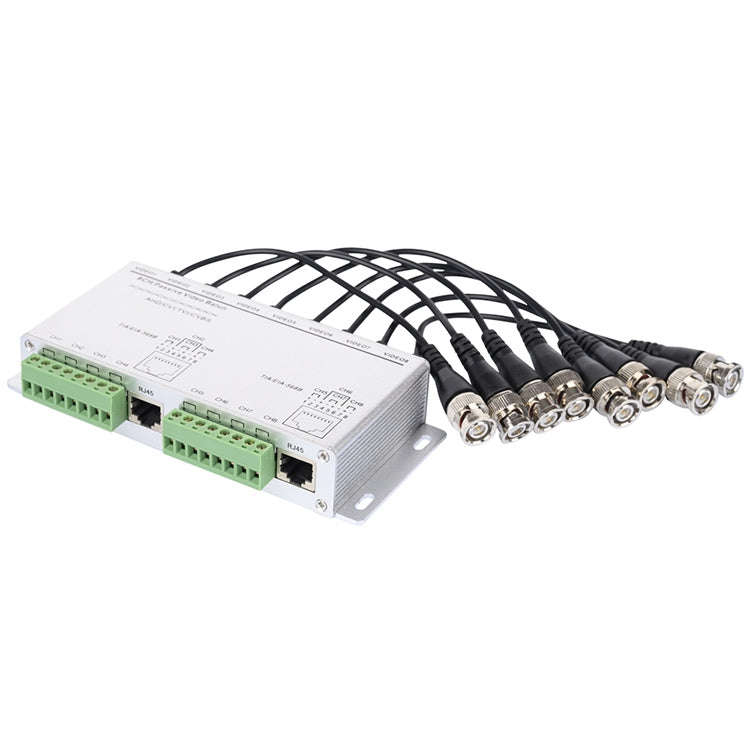

8 CH UTP Passive Video Balun , CCTV Via Twisted Pairs 8 CH UTP Passive Video Balun , CCTV Via Twisted Pairs 8 CH UTP Passive Video Balun , CCTV Via Twisted Pairs 8 CH UTP Passive Video Balun , CCTV Via Twisted Pairs 8 CH UTP Passive Video Balun , CCTV Via Twisted Pairs
8 CH UTP Passive Video Balun , CCTV Via Twisted Pairs 8 CH UTP Passive Video Balun , CCTV Via Twisted Pairs 8 CH UTP Passive Video Balun , CCTV Via Twisted Pairs 8 CH UTP Passive Video Balun , CCTV Via Twisted Pairs 8 CH UTP Passive Video Balun , CCTV Via Twisted Pairs

8 CH UTP Passive Video Balun , CCTV Via Twisted Pairs

New 10 available
R709.34
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
S-CVB-0175
Bob Shop ID
637515704
1) Adopt differential signal transmission with excellent anti-jamming ability

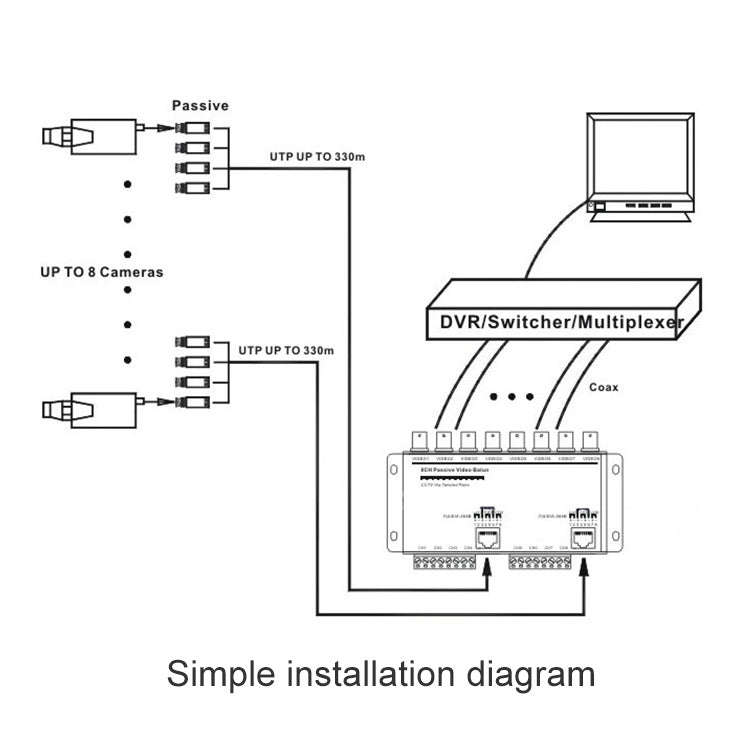

2) Save project wire expenses, each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal

3) Full-motion CCTV video at distance up to 330m when used with any passive UTP video transceiver

4) Up to 1500m with any active UTP video receiver

5) No power required

6) Built-in transient suppression protection

7) Frequency response: DC-8MHz

8) CMRR (Common mode rejection ratio): 60dB

9) Impedance: BNC / 75ohms, RJ / 100ohms

10) Applicable to NTSC / PAL / SECAM / CCIR systems

11) Dimensions: 157 x 65 x 29mm
