8 PORT 10/100  SWITCH

8 PORT 10/100 SWITCH

39 available / new
R174.90
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
TXE020
Bob Shop ID
639812562

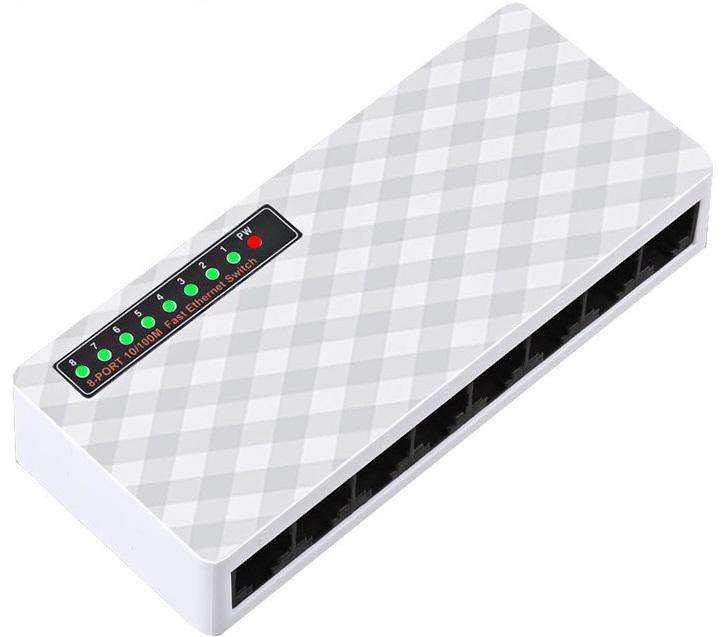

8 PORT 10/100 NETWORK SWITCH - TXE020

Product specification

Model number: TXE020

Chipset: IP178G

Port number: 8 port 10/100M Auto MDI-MDIX RJ45

Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3 x IEEE 802.3az

Network Media: 10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP

Data Rate: 10/100M

Forwarding Rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps

LED Indicator: 10/100Mbps(Link/Act),Power

Dimension: 159 x 71 x 30mm

Power Input: DC5V/500mA

Power Consumption: Max1.5W

Environment

Operating Temperature: 0 - 40

Relative Humidity: 10%-90% (non-condensing)

Storage Temperature: -40 - 70

Relative Humidity: 5%-90% (non-condensing)

Chipset Feature :

8 port Embedded 10/100 PHY Switch Controller

Support 8 100BaseTX or 6 100Base TX + 2 FX

Support Auto MDI-MDIX function

Power Management Tool (PWMT)

APS, auto-power saving while Link-off

IEEE 802.3az protocol based power saving & 10Mbps Te for 10Mbps

WOL+, light traffic power saving - PWD, force-off power saving

Support Auto Factory Test (AFT)

Single Power 3.3V supply

Built in Vcore Regulator

Two Priority queues per port

Support 802.1p & DiffServ based QoS

QoS

Port base

802.1p

IP DiffServ IPV4/IPV6

TCP/UDP port number

Pins configure ports priority (VIP port)

Support max forwarding packet length 1552/1536 bytes option

Support port mirror function

Support 1k MAC address Support broadcast storm protection

Support port trunking (LACP)

Support 16 VLAN (IEEE Std 802.1q)

Port-based/Tagged-based VLAN

Support insert, remove tag

Built-in 50 ohm resistors for simplifying BOM

85nm Process

Package and operation temperature

IP178G: 68 Pin QFN, 0 - 70
