Smart Switch Basic 10A 2.2kW | WiFi Tuya Smart Life

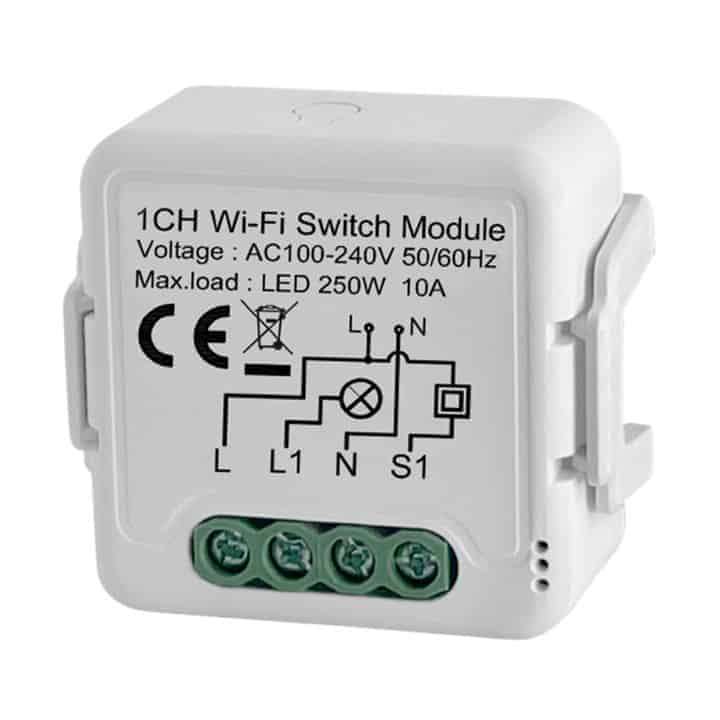

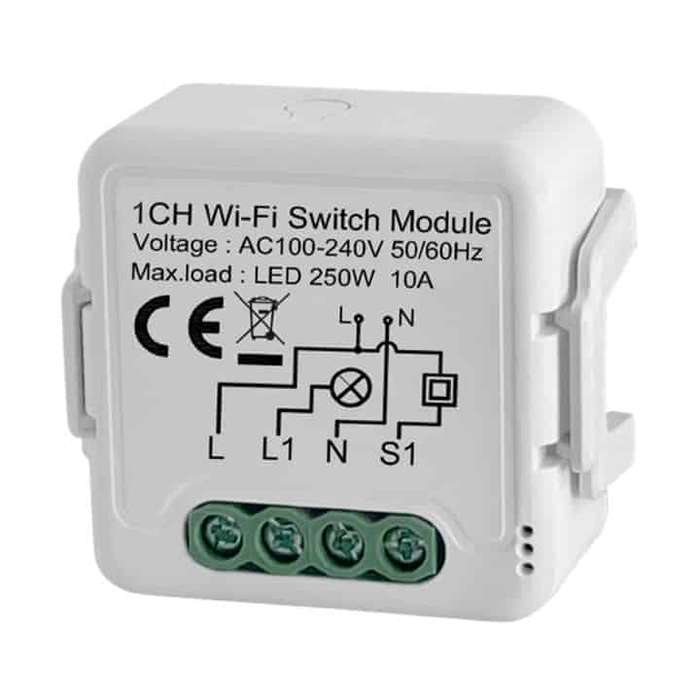

This Smart Switch Basic, 10A WiFi Wireless Smart DIY Switch can be used to make any device or appliance that uses a mains input of 230V Smart. Simply 'wire, configure & play'.
The unit also includes a 'manual switch override' feature if you require both a Smart & a manual switch. The wiring of this feature is optional & it means that both the smart & manual switching will override each other. See additional images for the wiring diagram.
Simply 'wire, configure & play'.
Home automation is made smart, simple & affordable via the Tuya, Smart Life App (Android or IOS), offering the fastest, most stable platform & widest range of smart products. Supports Alexa, Google Home & IFTTT.
Product Features
- Small & compact design, wire, configure & play.
- Override feature of the existing non-smart light switch, meaning the existing non-smart light switch can be on/off (non -non-interfering).
- Activation dates, days of the week, start time and duration can all be pre-configured via the Smart Life application giving you complete remote control & on/off overwrite.
- Supports voice commands & AI units such as Amazon Alexa Echo & Google Home solutions.
- All your smart devices are connected via a single stable platform the Smart Life App from Tuya.
- The entire Smart Life system performance relies on an 'adequate WiFi' (2.4GHz only) signal. We recommend using our WiFi Extender products to ensure comprehensive home & outdoor WiFi coverage. To buy [click here].
Connections

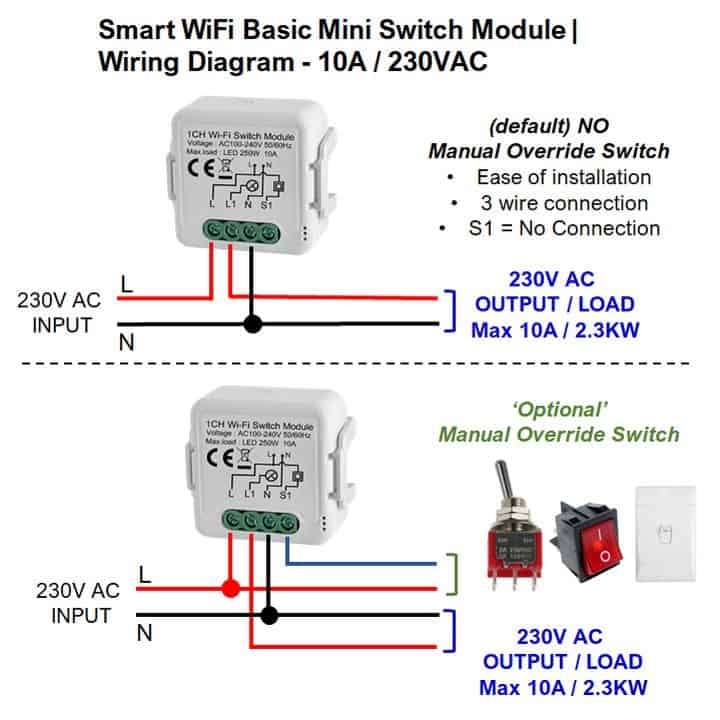

- refer to the additional images for a wiring diagram. The unit has an option to add a manual override physical switch.
Typical Uses (but not limited to)
- Smart Switching of any device or appliance that requires a current of 10A (2.2kW max).
Specifications
- Electrical voltage: 110-250V AC
- Power rating : 1 x 10A, max, 250W
- Product dimensions：39.2 x 39.2 x 18 (L x H x W in mm). Fits in the space behind your existing light switch.
- Material: white ABS (Fire-retardant)
- Wireless frequency: 802.11 b/g/n 2.4GHz, WPA-PSK/WPA2-PSK
- Operating temperature: -10ºC 50ºC
What's in the Box?
- 1x Smart Switch Basic 10A
- 1x Instruction Manual
FAQ's
- Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
- How do I get started? [click here]
- What devices can presently be Smart Automated? [click here]
Home automation is made smart, simple & affordable via the Tuya, Smart Life App (Android or IOS), offering the fastest, most stable platform & widest range of smart products. Supports Alexa Echo Dot, Google Home, IFTTT & more
