80mm 3-Jaw Self-Centering Chuck (K11-80)

80mm 3-Jaw Self-Centering Chuck (K11-80)

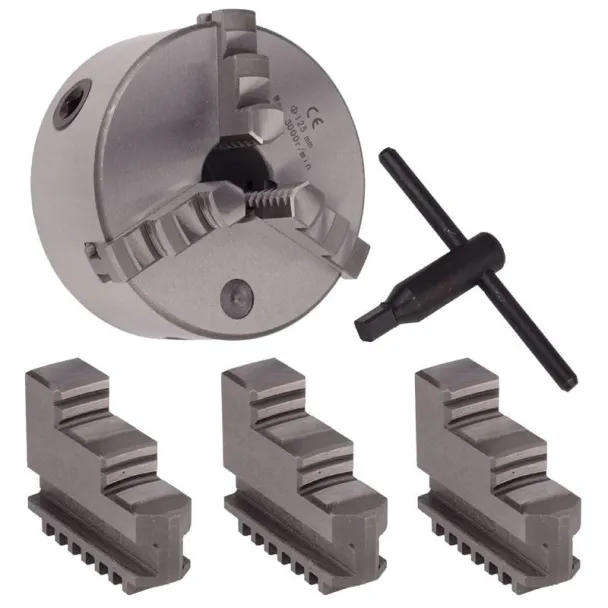

This compact 3-jaw self-centering chuck is a high-precision accessory designed for use with engineering lathe machines. It features a self-centering jaw mechanism for uniform clamping and includes reverse jaws and a chuck key for quick and efficient adjustments. Ideal for light to medium-duty machining tasks requiring reliable workholding.

Features

High precision engineering accessory

Self-centering 3-jaw design for balanced clamping

Includes reverse jaws for versatile use

Comes with chuck key for easy adjustments

Suitable for compact engineering lathes

Specifications

Chuck Diameter (D): 80 mm

Registration Recess Diameter (D1): 55 mm

Bolt Circle Diameter (D2): 66 mm

Center Hold (D3): 16 mm

Registration Recess Depth (h): 3.5 mm

Max Height (H): 66 mm

Body Thickness (H1): 50 mm

Number of Bolts: 3

Size of Bolts: 5 mm

Maximum RPM: 4,800

Handle Length: N/A
