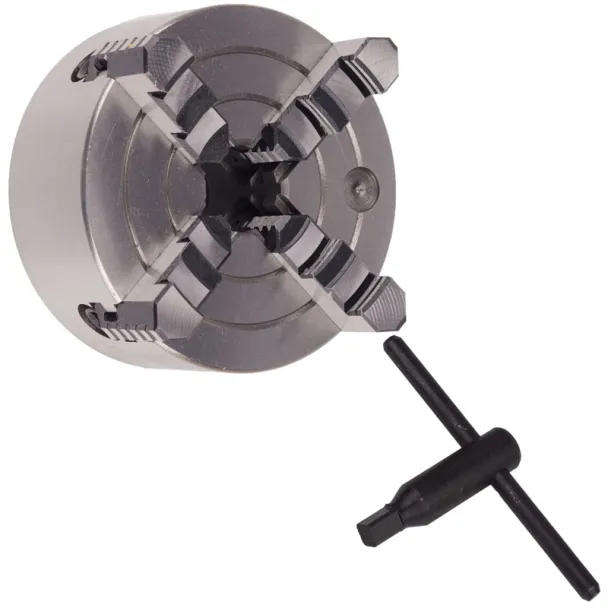

80mm 4-Jaw Independent Chuck (K72-80)
This compact 4-jaw independent chuck is a high-precision accessory designed for engineering lathe machines. Each jaw is individually adjustable, allowing for secure and accurate clamping of non-cylindrical or off-center workpieces. Ideal for fine machining and custom turning jobs.
Features
High-precision accessory for engineering lathes
4 independent jaws for clamping irregular shapes
Allows for off-center and square workpiece adjustment
Compact size, ideal for smaller lathes
Includes chuck key for convenient use
Specifications
Chuck Diameter (D): 80 mm
Registration Recess Diameter (D1): 55 mm
Bolt Circle Diameter (D2): 66 mm
Center Hold (D3): 22 mm
Registration Recess Depth (h): 3.5 mm
Max Height (H): 56 mm
Body Thickness (H1): 42 mm
Number of Bolts: 4
Bolt Size: Not specified
Maximum RPM: 4,800
Handle Length: 15 mm
