'96 - '98 BMW Z3 1.9 - Bolt-On Turbo Kit

This is a complete Bolt-On Turbo kit rated for 335KW (450HP), Includes everything you need, Bolts and Gaskets included. Full bolt on kit, nothing else needed. Some vehicles will require certain fuel upgrades (Bigger Injectors/fuel pump) We recommend checking with your tuner/mechanic beforehand.

All prices include shipping, customs duties, and doorstep delivery no hidden fees, just hassle-free service.

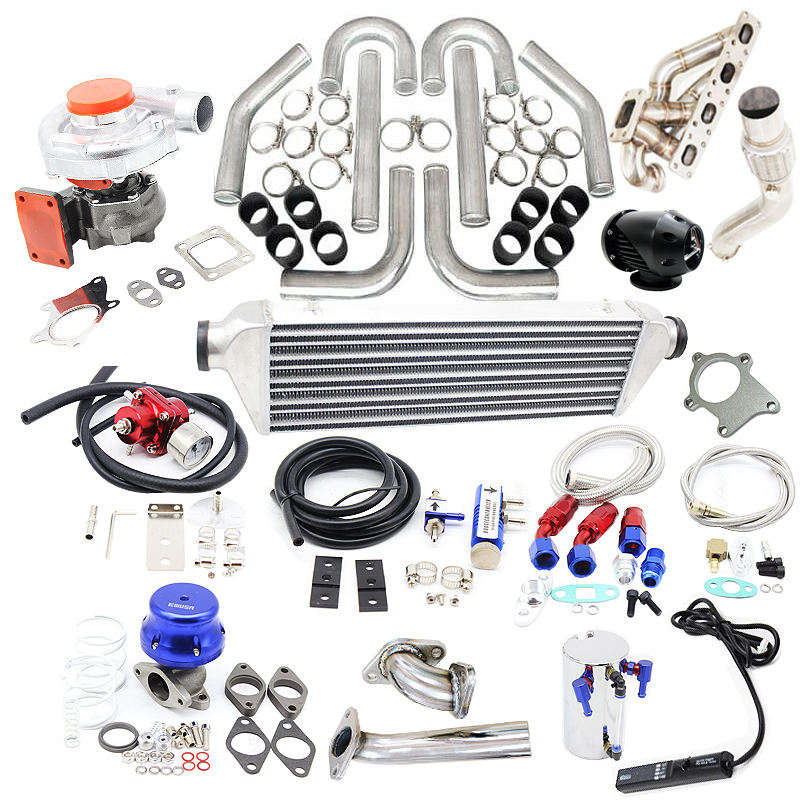

Complete Turbo Kit Performance Upgrade Package

Package Includes:

• • Built for performance, pressure, and precision this setup is designed to deliver serious power gains with reliable, race-ready hardware.

    • Turbo Type: T3/T4 Hybrid

    • Bearing Type: Journal Bearing

    • Cooling: Oil-Cooled

    • Rated Power: Up to 450 HP

    • Boost Capability: 2535 PSI Peak Output

    Compressor (Cold Side):

    • A/R: 0.50

    • Inlet: 3.0"

    • Outlet: 2.0"

    • Exducer Diameter: 3.0" (73.55 mm)

    • Inducer Diameter: 1.99" (57.75 mm)

    • Trim: 48.9

    Turbine (Hot Side):

    • A/R: 0.63

    • T3 Standard Flange Easy bolt-on fit for most manifolds

    • 5-Bolt Exhaust Housing

    • Exducer Diameter: 2.2" (75.46 mm)

    • Inducer Diameter: 2.56" (52.76 mm)

    • Trim: 61.9

    • Thread Size: M10x1.25

    Front-Mount Intercooler

    • Overall Dimensions: 27" (Length) × 7" (Height) × 2.5" (Width)

    • Core Size: 21"

    • Inlet/Outlet: 2.5" each

    • Air Flow Capacity: <350 CFM; Rated for up to 500 HP

    • Working Pressure: 550 PSI

    • Pressure Drop: 25 PSI @ 35 PSI; 0.20.5 PSI @ 15 PSI

    • Design: Bar and Plate

    • Construction: Machine-cut, stamped, and hand-welded

    • Compatibility: Universal fits many cars and trucks

    Cast Iron Turbo Manifold

    • Turbo Flange: T3 fits T3 or T/T3 turbochargers

    • Wastegate Flange: 38mm (5mm thick)

    • Fitment: Direct bolt-on

    EM RS Blow-Off Valve

    • Material: High-quality CNC Billet Aluminum

    • Style: EM RS (Racing Style)

    • Function: Sharp venting and pressure release

    Intercooler Piping Kit

    • Material: Lightweight Aluminized Mandrel-Bent Tubing

    • Pieces: 4-piece bolt-on design

    • Benefits: Improved airflow adds up to 1020 HP

    • Includes:

      • High-pressure silicone couplers

      • Stainless steel T-bolt clamps

    EMUSA 38MM Adjustable Wastegate

    • Boost Settings: 4 / 6 / 8 / 10 PSI (spring-loaded)

    • Material: CNC Machined Aluminum

    • Finish: High Polish

    • Accuracy: Dyno-tested, proven boost control

    TurboSmart-Style Manual Boost Controller

    • Compact and easy-to-adjust

    • Delivers consistent and stable boost levels

    Oil Line Kit

    • Includes:

      • Oil Feed Line

      • Oil Return Line


    • Adjustable Fuel Pressure Regulator included***

    All components match product photos and are built for durability and performance under real-world driving conditions.
