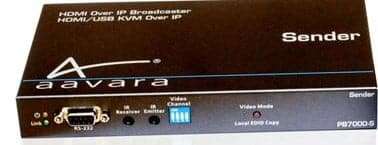

Aavara PB5000 Sender PoE HDMI Over IP

Aavara PB5000 Sender PoE HDMI Over IP: Unlock Ultimate Video Broadcasting

FEATURES

1080p Ultra High Quality Video transmission and Up to 16 Groups Multi-Casting

Flexible and scalable HD Video broadcasting by Gigabit Ethernet LAN/Switch

1 to 1, 1 to many & multi-casting broadcasting architecture, adding more displays without adding LAN bandwidth loading

IR Control Pass Thru for Controlling Video Source Device from Display side

Two Way RS-232 Command Unicast Broadcast for Controlling Display or video Source Device from remote site

Easy Dip Switch Matching for Multi-Casting Group configuration

New EDID Copy/Video Mode Switching Button for Optimal Video Performance and enhance on EDID compatibility

Video Wall function support, Max. Up to 8x16 displays by Easy Web Interface Configuration

Power Over Ethernet available

SPECS

HDMI Spec.:1.3 Compatible

DVI Spec.:1.0 Compliant

HDCP Spec.:1.1/ 1.2 Compliant

Sender Connector:Power Adapter in, RJ45, RS232, IR Emitter Connector, HDMI

Receiver Connector:Power Adapter in, RJ45, RS232, IR Receiver Connector, HDMI out

HDMI Audio Output:Stereo L/R, 16bits, 48Khz

HDMI Video Resolution:480p, 576p, 720p, 1080p

PC DVI Input Resolution:Up to1920x1200 @ 60Hz

Point to Point Distance:100M by Cat5e

Broadcast Mode:Sender to Receiver via LAN/Switch, One Sender to Many Receivers(Display/ TV/ Projector)

Broadcast Mode Length:Unlimited within LAN (Local Area Network)

IR Control Pass Thru:20~60KHz to use infra Red Remote control of video source equipment(connected to sender) to control from Receiver side

RS-232 Baudrate:300~230, 400bps, Default 115,200bps

Operating Temperature:0-40ºC

Storage Temperature:-20~50ºC

Humidity Range:5%~90%RH

Power Consumption:5W

Power Adapter:DC 5V/2A

Material :Metal

Dimension (LxWxH):165x116x28mm

Weight:325g

Optional Accessory:Mounting Kit (MK-100)

Package Content:1080p HDMI Broadcaster Sender & Receiver, 5V DC Adapter, Usermanual, IR Emitter Cable (Sender) or IR Receiver Cable(Receiver)
