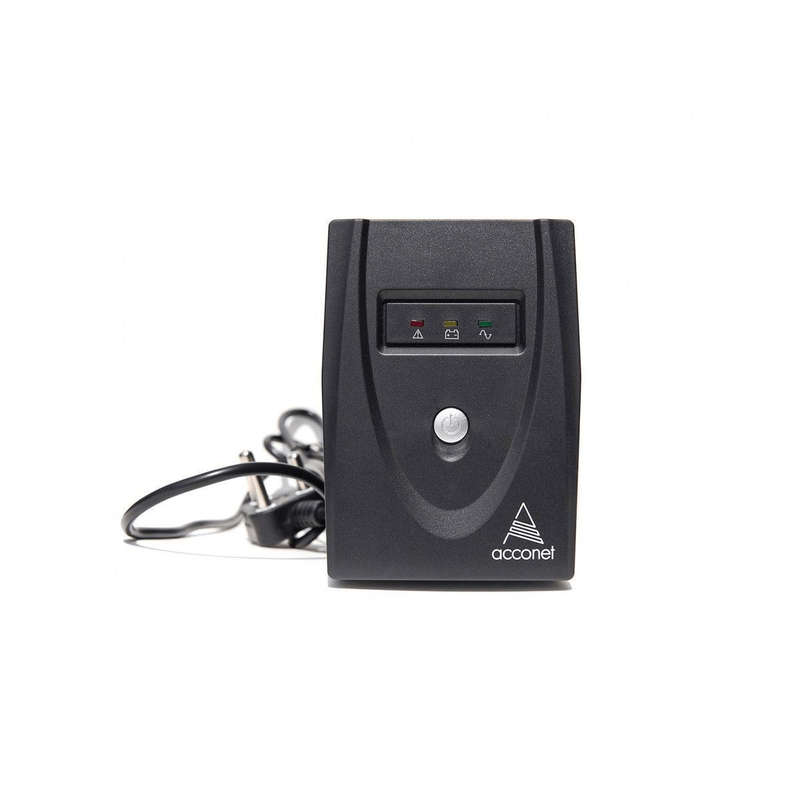

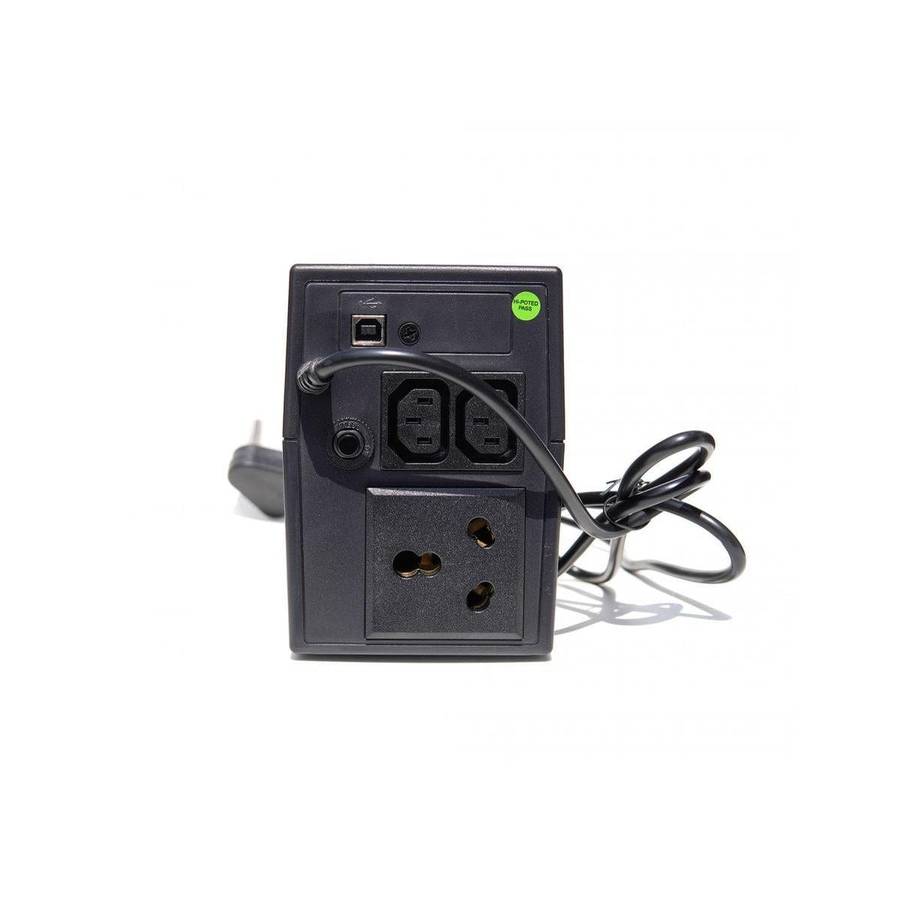

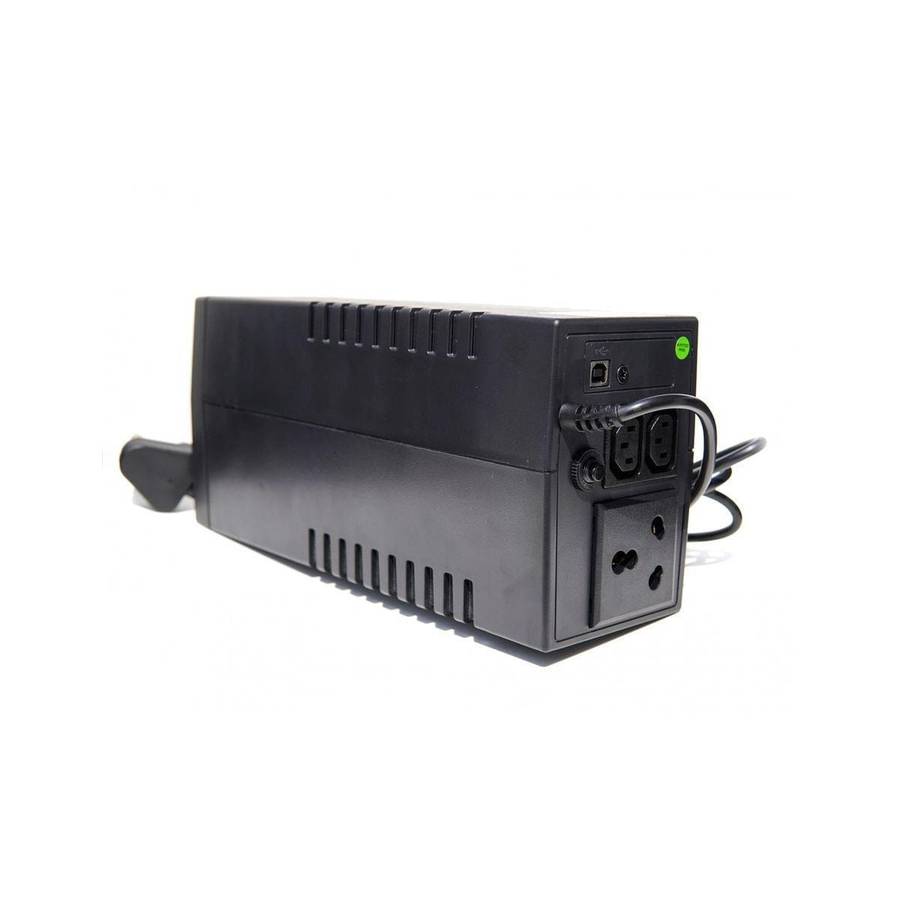

Acconet 700VA/360W Offline UPS with AVR Function UPS-700
DG series line-interactive UPS is specially designed for Personal Computer with multi-functions. The lightweight, compact design perfectly fits the limited space. The UPS is equipped with two boosts and one buck AVR to stabilize the wide input voltage range. lt is also built-in with DC start function. This function enables the UPS to be started up without an AC power supply.
General Features
Line Interactive UPS with simulated sinewave output
Excellent microprocessor control guarantees high reliability(Internal self-diagnostic technology)
Boost and buck AVR for voltage stabilization
(wide input range with two boost and one buck control)
Auto restart while AC is recovering
Comprises a single 12V 7AH battery
3 AC outputs
RJ 11 output port
Cold start function
Specifications
INPUT
Voltage
220/230/240Vac
Voltage Range
140~300Vac
Frequency Range
50/60Hz (auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) ?
±10%
Frequency Range
50/60Hz ±1 Hz
Transfer Time Typical
4-8ms, 13ms Max.
Waveform (Batt. Mode)
Simulated Sinewave
Battery Voltage
12Vdc
Battery Type & Number
12 V /7Ah x 1
Typical Recharge Time
4~6 hours recover to 90% capacity
LED Display
AC Mode, Battery Mode, Overload, Fault
Full Protection
Short circuit, Overload , Overcharge and over discharge protection
ALARM
Battery mode
Sounding every 10 seconds
Low Battery
Sounding every second
Overload
Sounding every 0.5 second
Battery Replacement Alarm
Sounding every 2 seconds
Fault
Continuously sounding
Communication port
USB (Supports Windows 2000/2003/XP/Vista/2008, Windows 7, Linux, Unix, and MAC)
OPERATING ENVIRONMENT
Humidity
0-90 % RH - 0- 40°C (non-condensing)
Noise Level
Less than 45dB
uptime availability is dependent on the appliances power consumption
What's in the box
1 x 700VA/360W Offline UPS
1 x User Guide
