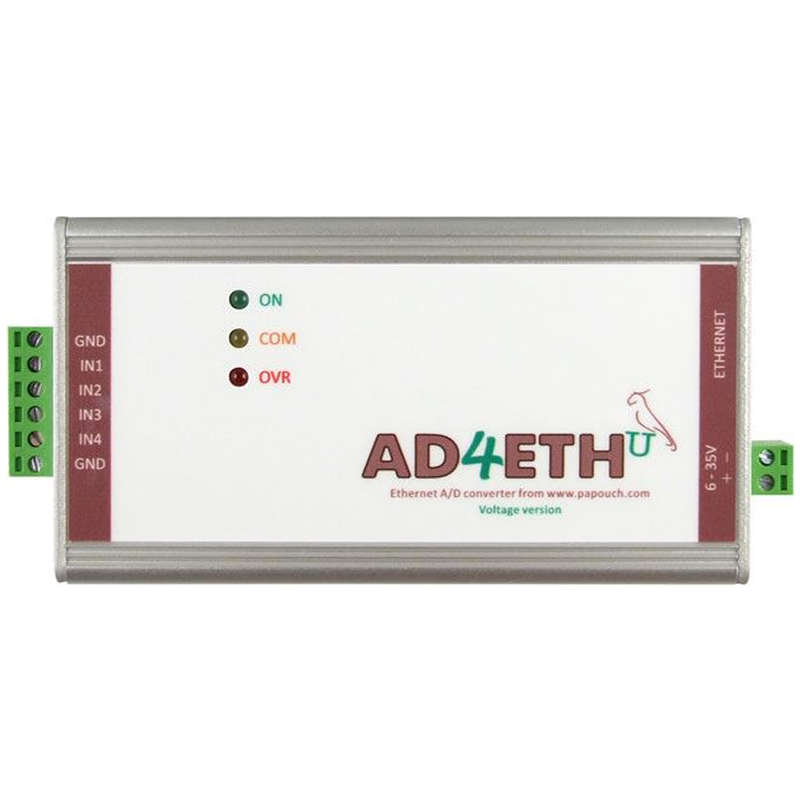

AD4ETH: Ethernet measurement module

Default input range is 0-10V or 0(4)-20mA, but it can be modified to suit your application upon request. Please contact us to get a custom measuring range.

Features of Ethernet A/D converter

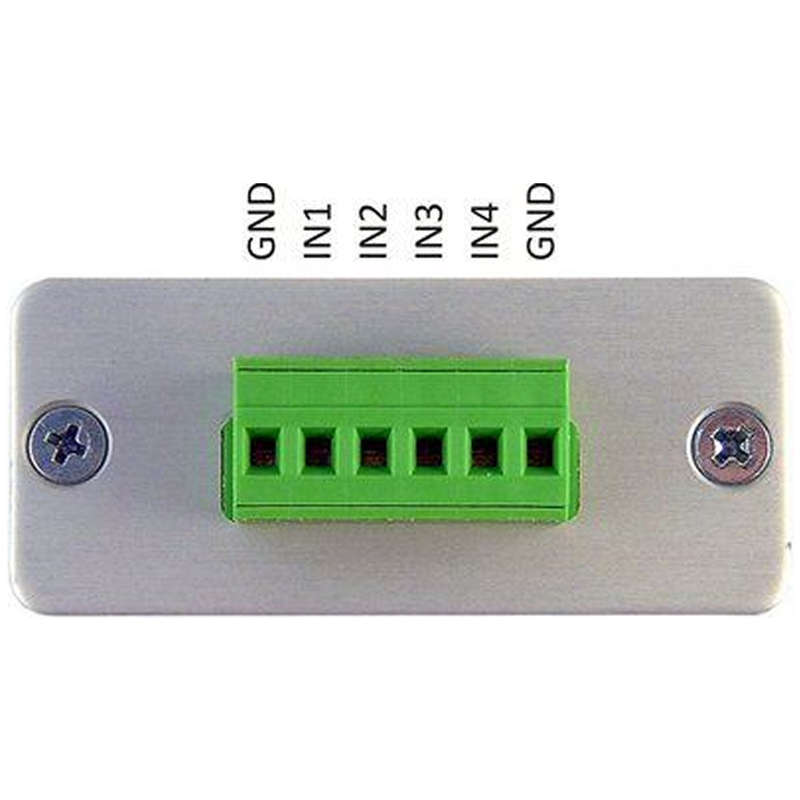

• Four analogue inputs for voltage or current
• Each channel can have different range (upon request)
• Measuring range split into 10 000 pieces
• Measuring rate: twice in a second for each channel
• Communication via Ethernet (LAN computer network)

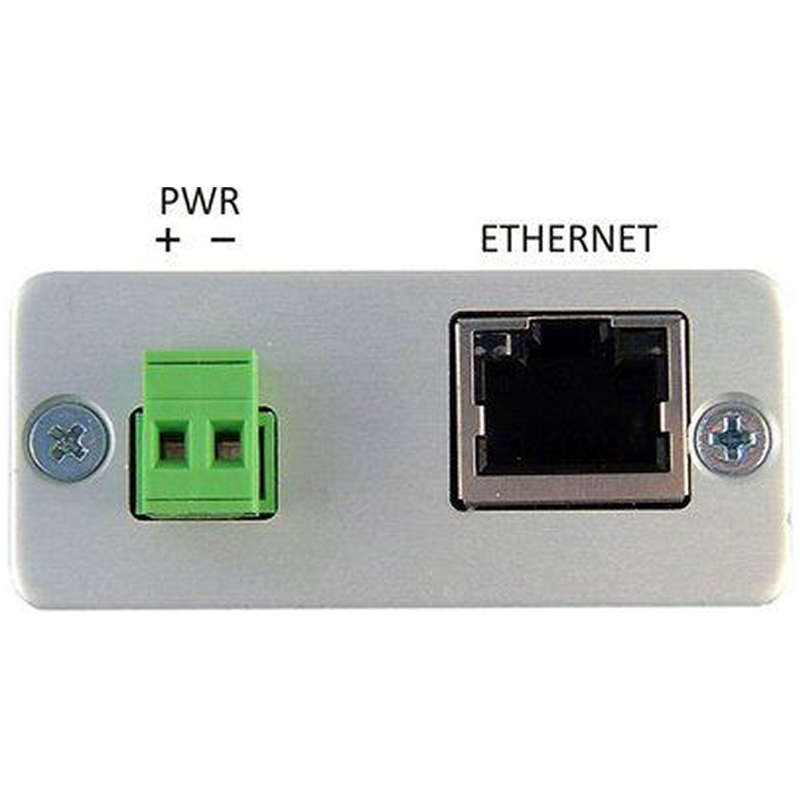

• Wide power supply voltage range: 7 - 30 V DC
• Measuring is based on a single multiplexed 16 bit sigma-delta A/D converter

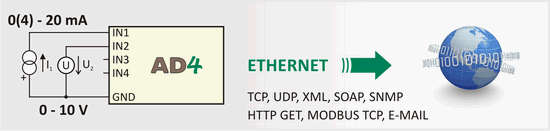

• SNMP, MODBUS TCP, TCP (Spinel), UDP (Spinel), HTTP GET, HTTP POST (SOAP)
• Internal WEB server
• WAP pages for mobile view
• Measured data in XML format for easy processing in your own application
• AD4ETH supports sending the data in XML WEB service format by SOAP protocol
• A/D converter can automatically send the measurements to your server in an HTTP GET request body.
• E-mail notifications when a preset thresholds are exceeded (e-mail without SSL)
• Real units calculation functions - you can see the values as a pressure, height, distance, temperature etc.
• Measurement software for windows as a free

Usage of IP A/D converter

• Digitalization of measured-out values from gauges with unified voltage or current output
• Reading or sensors with unified signals
• Reading values from flood sensors, pressure sensors, thermometers, height sensors etc.
