Adjustable Potentiometer Rotary Angle Sensor Module

New 20 available
R400.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
651221478

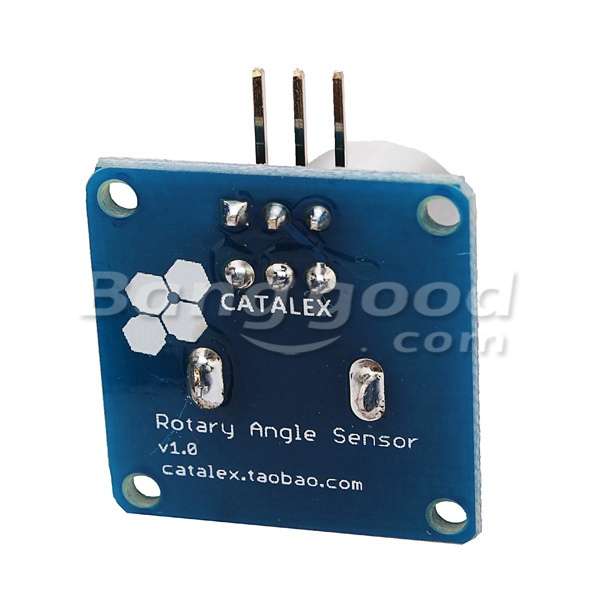

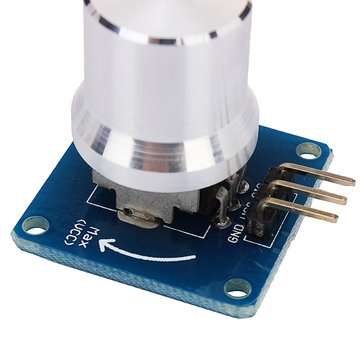

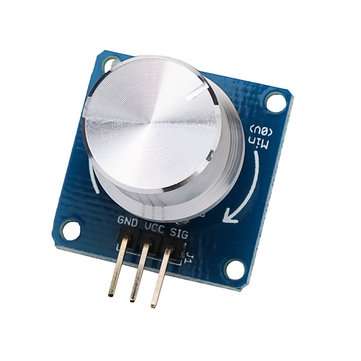

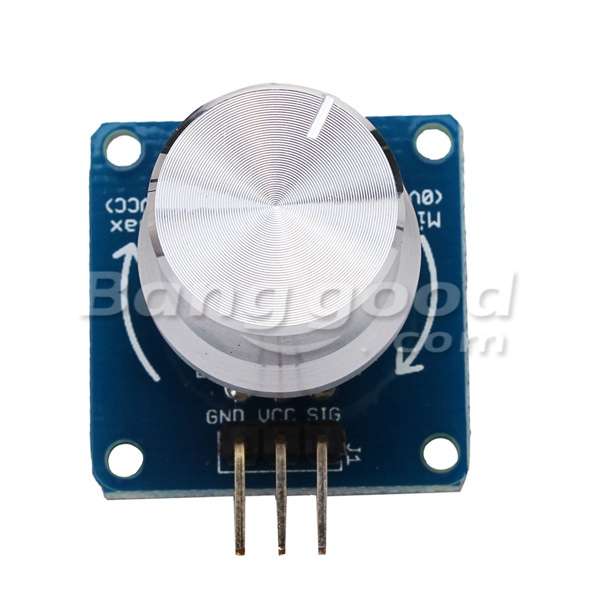

Adjustable Potentiometer Volume Control Knob Switch Rotary Angle Sensor Module For

Description:


Rotary Angle Sensor is based on the 10k the adjustable potentiometer knob Angle sensor module, the output is 0 ~ VCC simulation values, the output voltage will be as the potentiometer rotation Angle and linear changes. Apply to 3.3 V and 5 V of the SCM system, and the board are compatible. Especially suitable for the volume regulator, such as lighting regulator DIY project

Feature:

Easy to use
Electronic building blocks Interface
Power supply is 3 ~ 5.5VDC
4 M2 screw positioning holes for easy installation

Parameter:

Item Minimum Typical Value Maximum Unit
VCC 3 5 5.5 V
VOUT 0 N/A VCC V
Rotation Angle 0 N/A 280 Deg
Size 24 x 29 x 27 mm
Weight 8 g

Interface:

Control Interface: GND to ground, VCC power supply, SIG is the signal output pin.
Knob Potentiometer: 10K ohm linear adjustable potentiometer, add aluminum knob cap.
Positioning holes: 4 M2 screws positioning holes with a diameter of 2.2mm, easy to install, implement the module combinations.



Package included:

1 xRotary Angle Sensor



, ,
