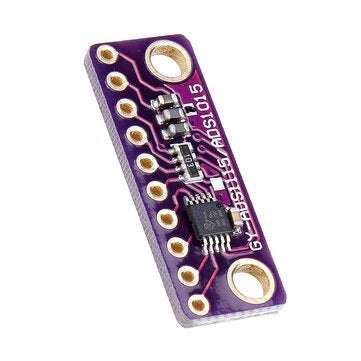

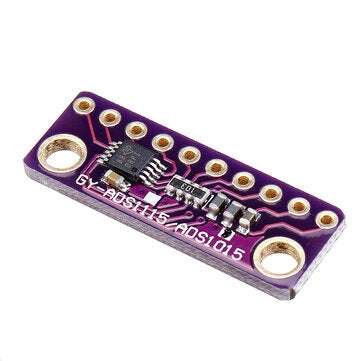

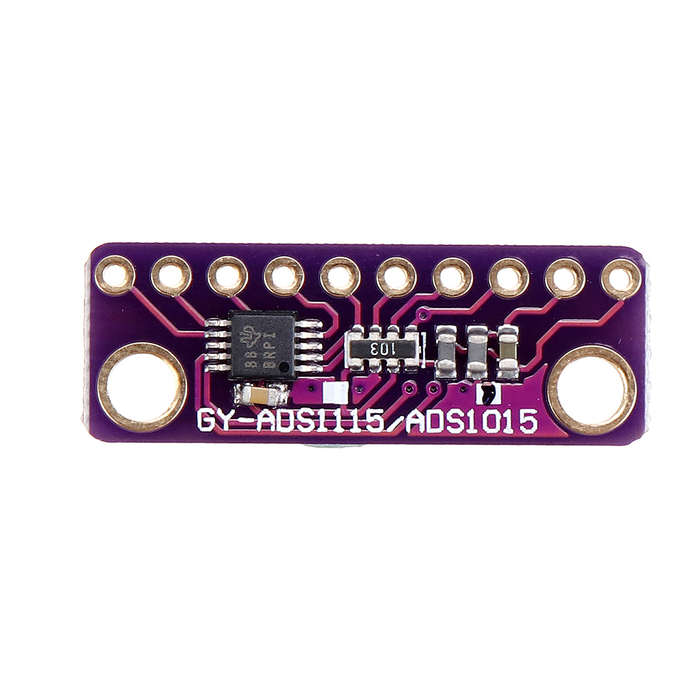

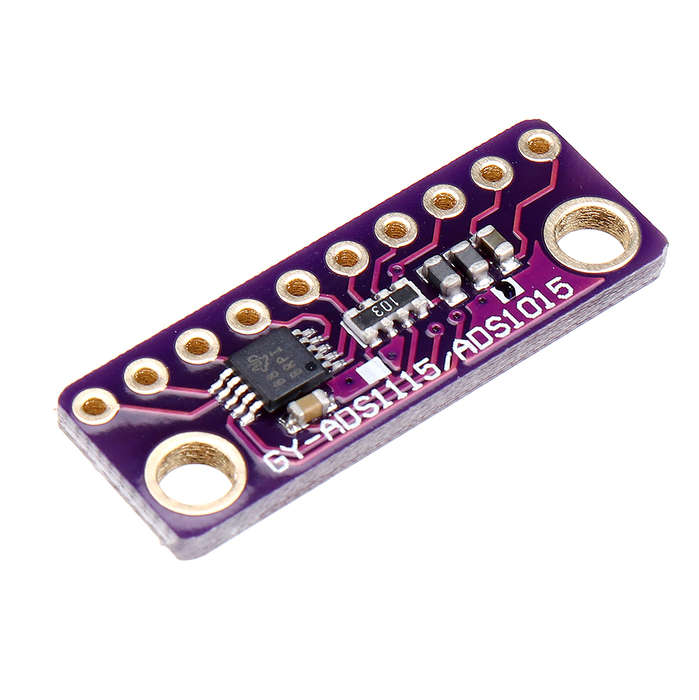

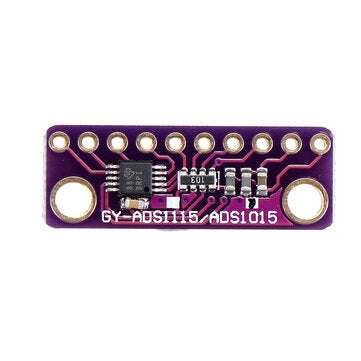

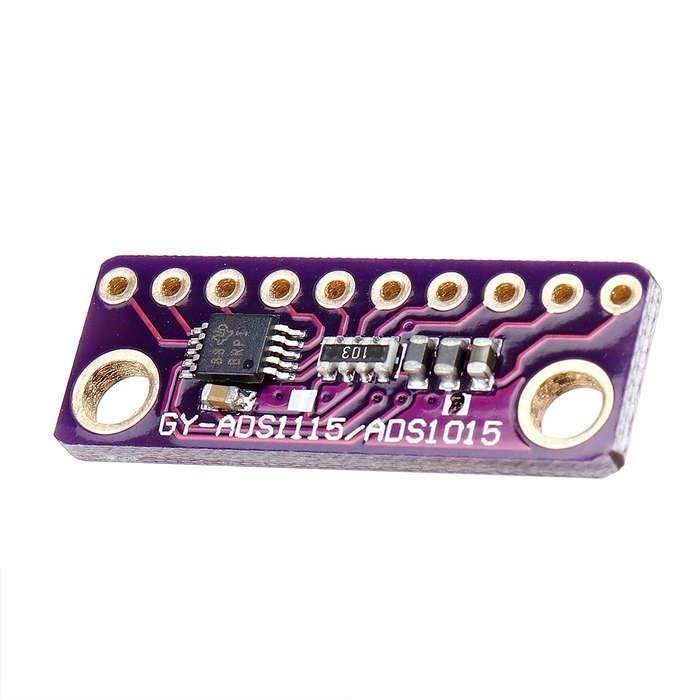

ADS1015 12 bit Precision Analog To Digital Converter ADC Development Board Microcontroller Programme

Description:

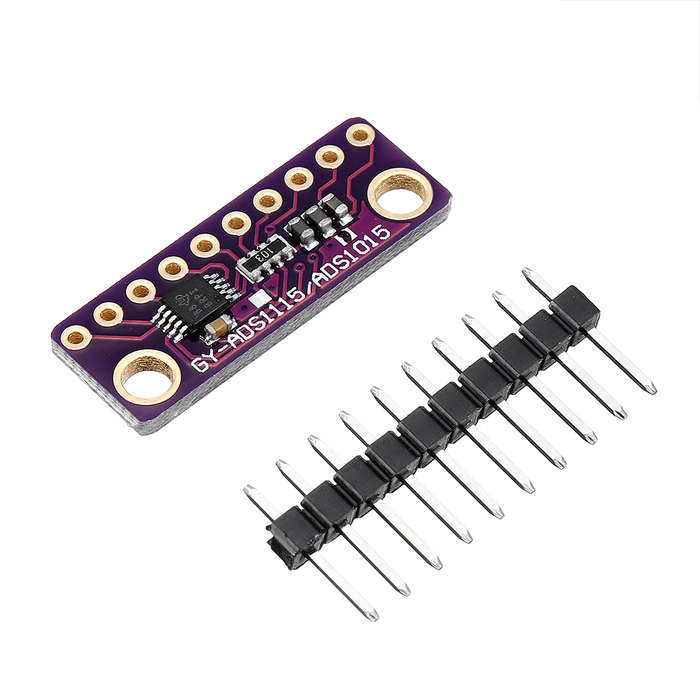

ADS1015 provides 12-bit precision at 3300 samples/second over I2C. The chip can be configured as 4 single-ended input channels, or two differential channels. As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. We like this ADC because it can run from 2V to 5V power/logic, can measure a large range of signals and its super easy to use. It is a great general purpose 12 bit converter. The chip`s fairly small so it comes on a board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options (see the datasheet table 5) so you can have up to 4 ADS1015`s connected on a single 2-wire I2C bus for 16 single ended inputs. Package includes: 1 x ADS1015 12 bit analog-to-digital converter ADC development board
