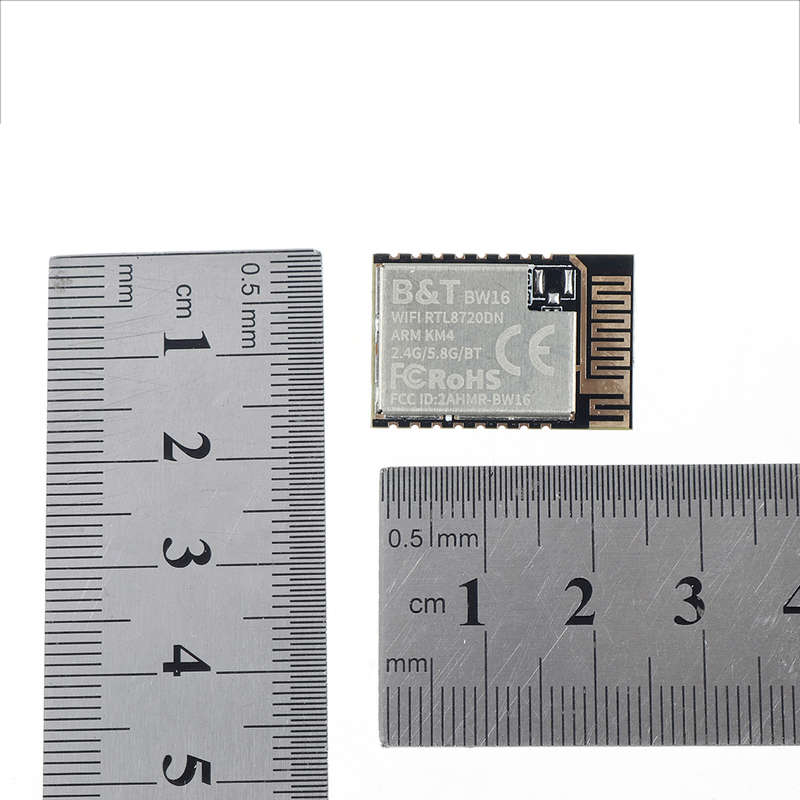

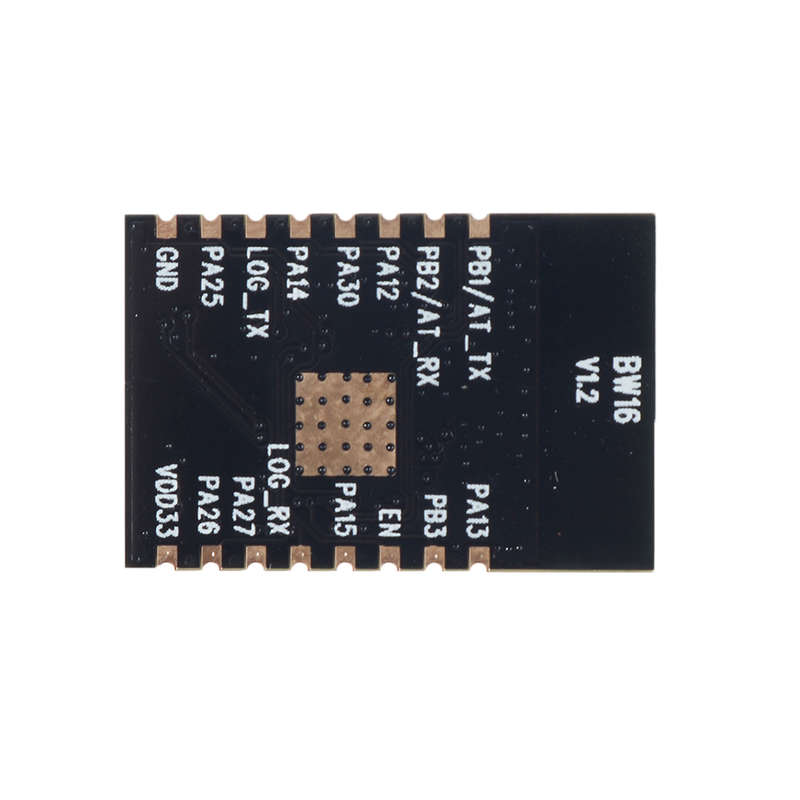

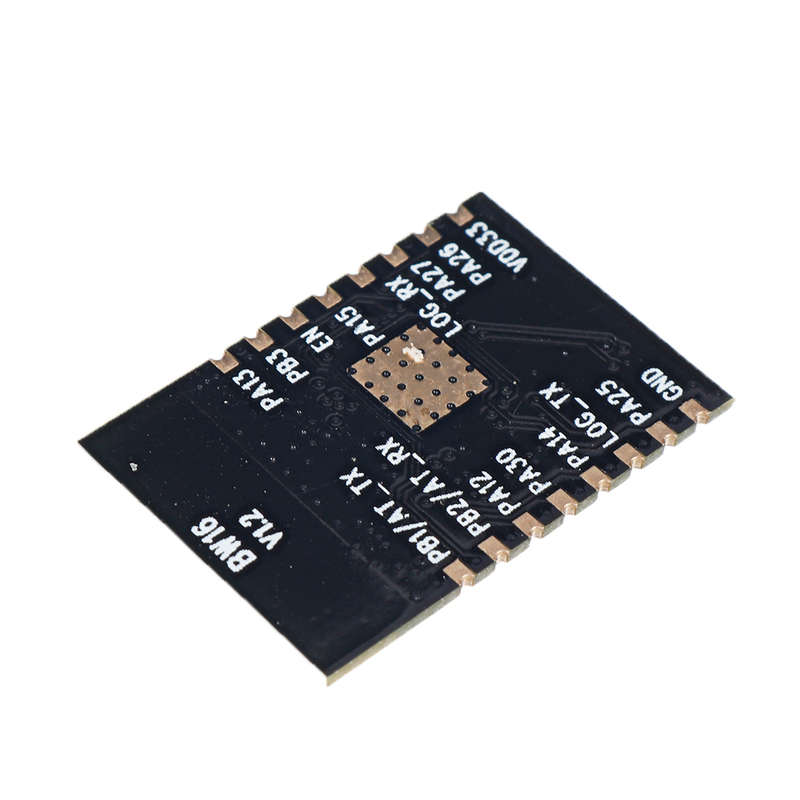

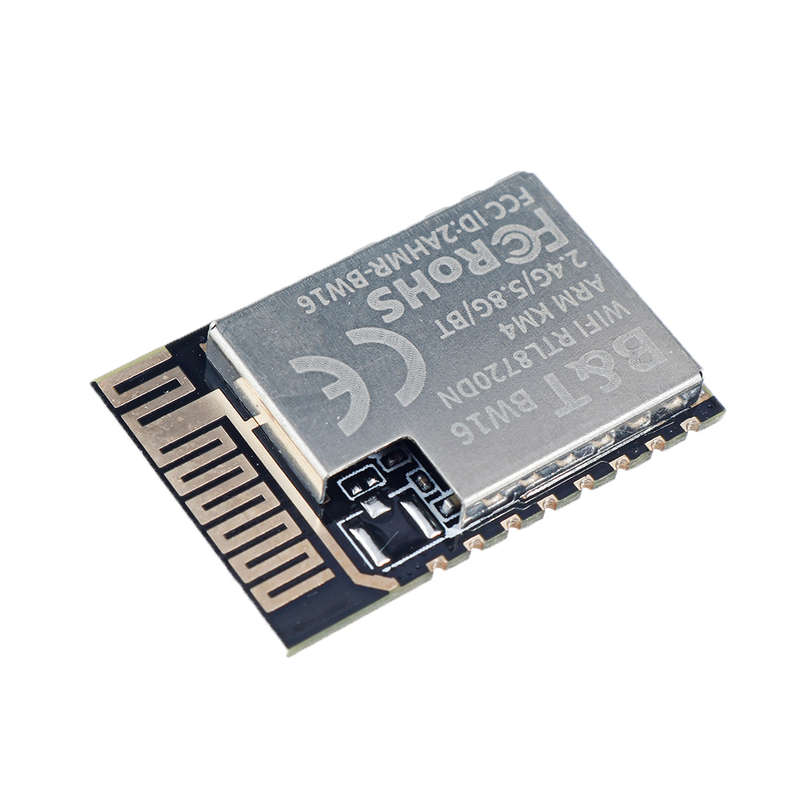

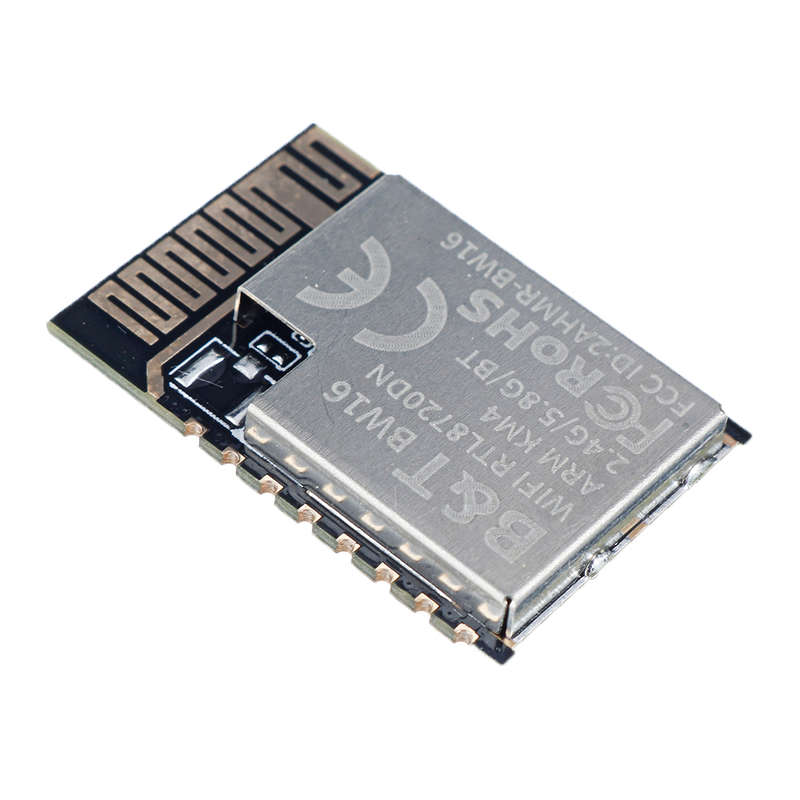

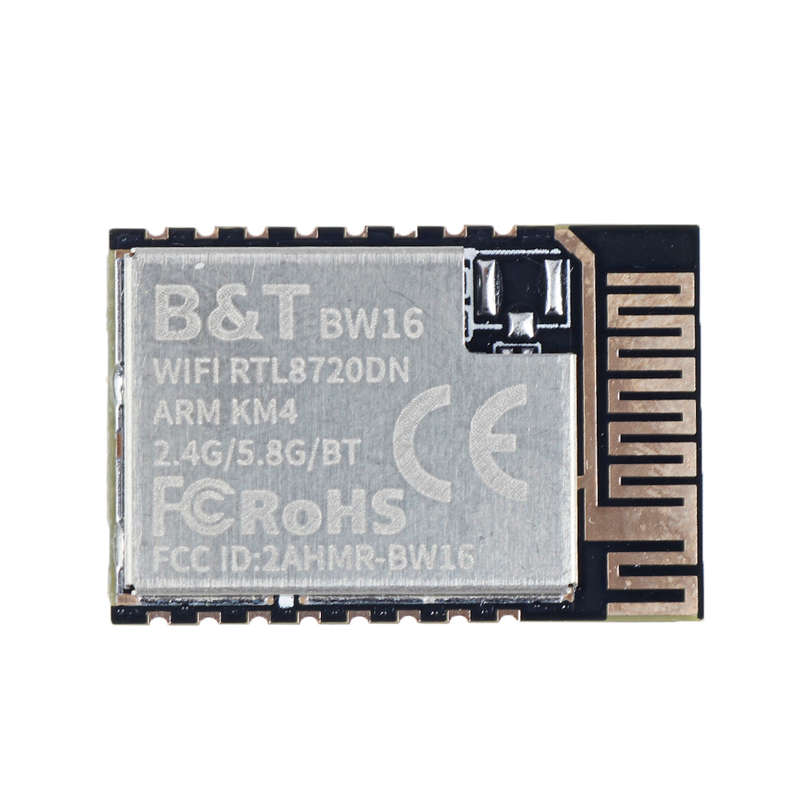

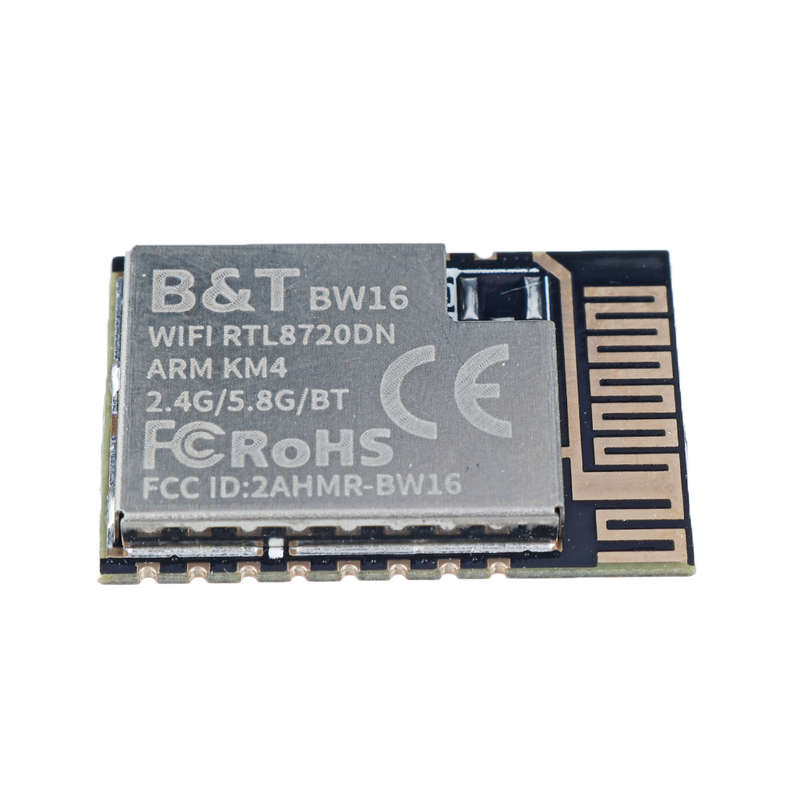

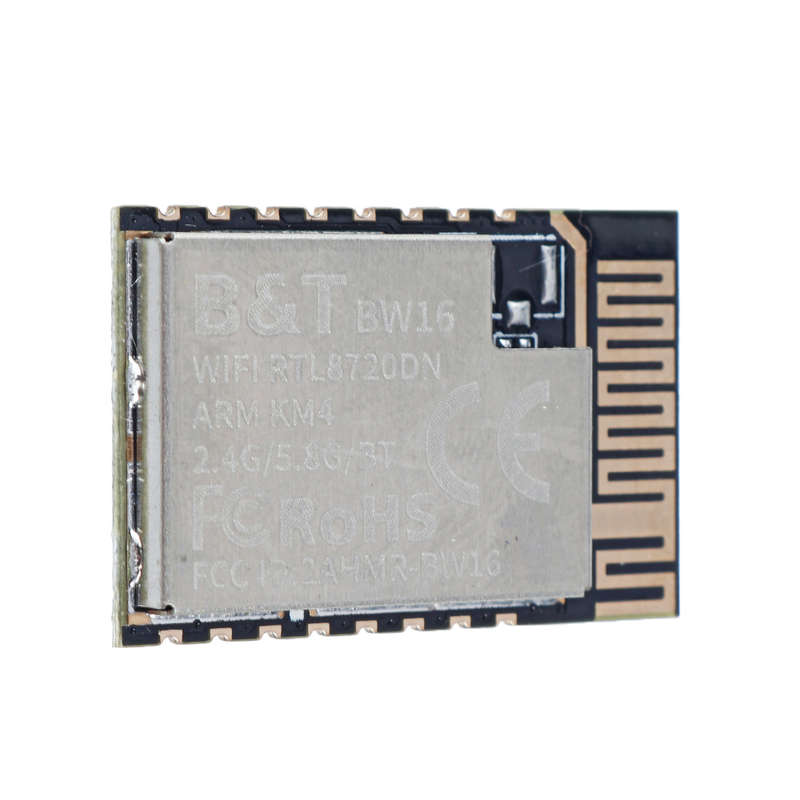

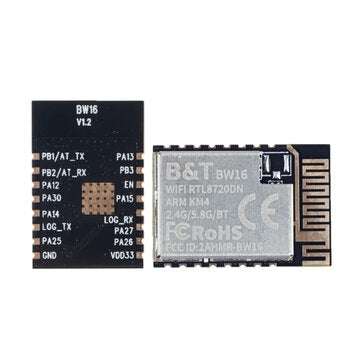

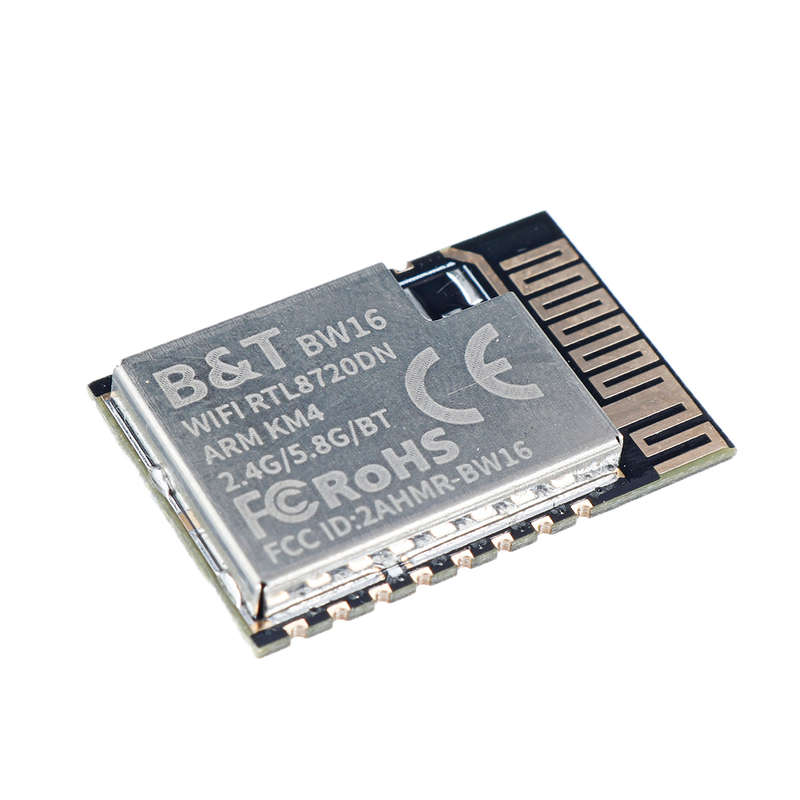

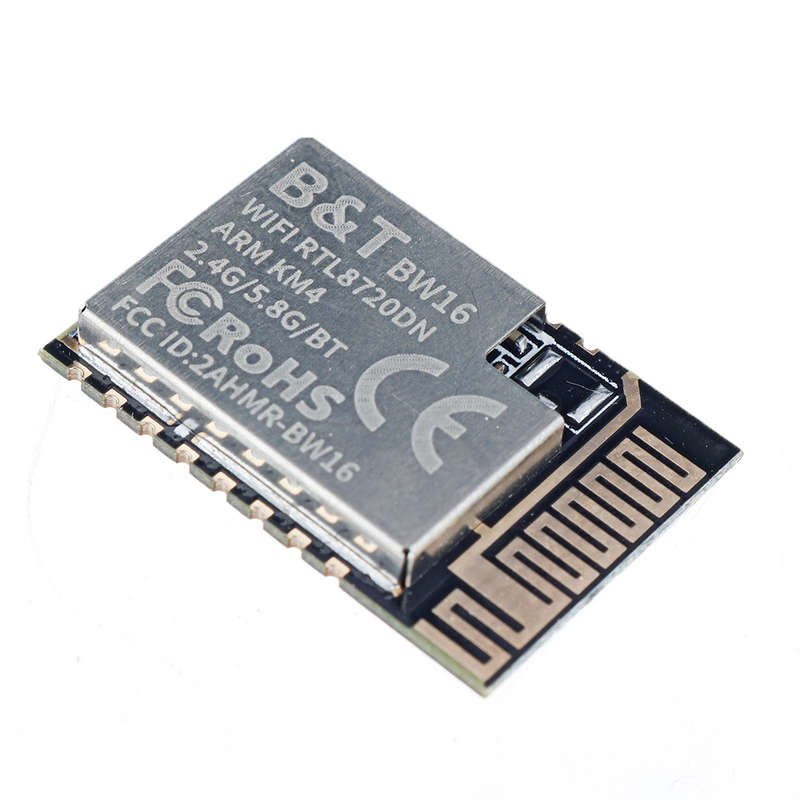

AI-Thinker RTL8720DN Dual-band WiFi + Bluetooth Low Energy BLE 5.0 BW16 Module Board

Introduction:

BW16 is a dual-band Wi-Fi+Bluetooth SoC module developed based on RTL8720DN. BW16 supports dual-band (2.4GHz or 5GHz) WLAN and Bluetooth low energy 5.0; it integrates ARM V8 (Cortex-M4F compatible) high-performance MCU, ARM V8M (Cortex-M0 compatible) low-power MCU, WLAN (802.11 a / b / g / n), MAC, Bluetooth baseband and RF baseband, and provides a set of configurable GPIO ports for the control of different peripheral devices. BW16 also integrates internal memory, supports simple application development, and can implement complete Wi-Fi and BT 5.0 protocol functions.

Features:

Support 802.11a/b/g/n 11, 2.4GHz or 5GHz

Support HT20/HT40 mode

Support low-power beacon monitoring mode, low-power receiving mode, low-power suspend mode

Built-in AES/DES/SHA hardware engine

Support TrustZone-M, support safe boot

Support SWD debug port access protection and prohibited mode

Support BLE and BT5.0

Bluetooth supports high power mode (7dBm, sharing the same PA with Wi-Fi)

Wi-Fi and BT share the same antenna

Support STA/AP/STA+AP working mode

Support Simple Config (APP) / AirKiss (WeChat) one-click distribution network for Android and IOS

Support serial local upgrade and remote firmware upgrade (FOTA)

Package includes:

1 x Wi-Fi+Bluetooth SoC module
