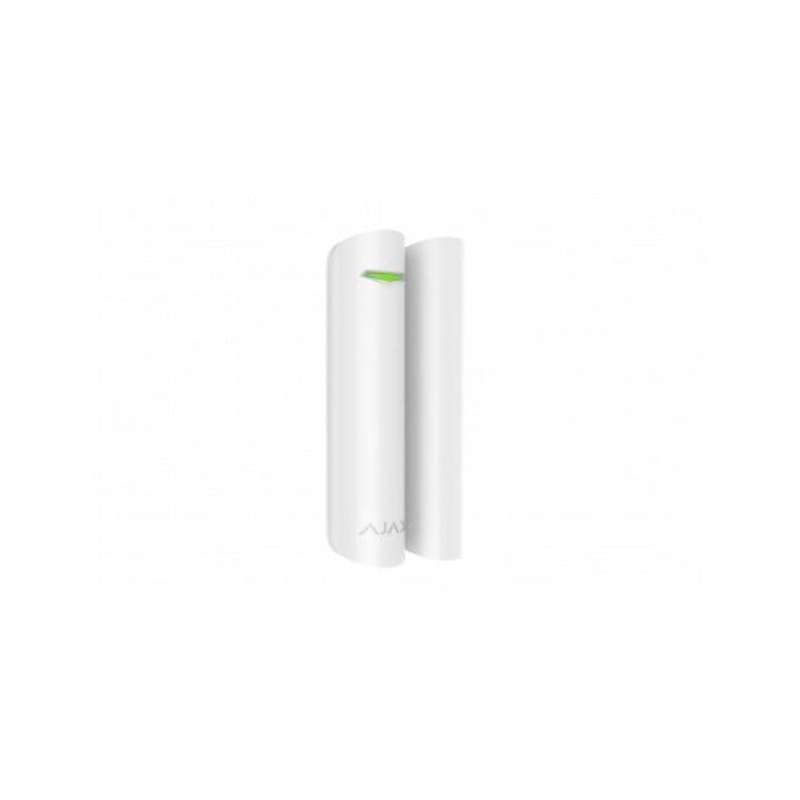

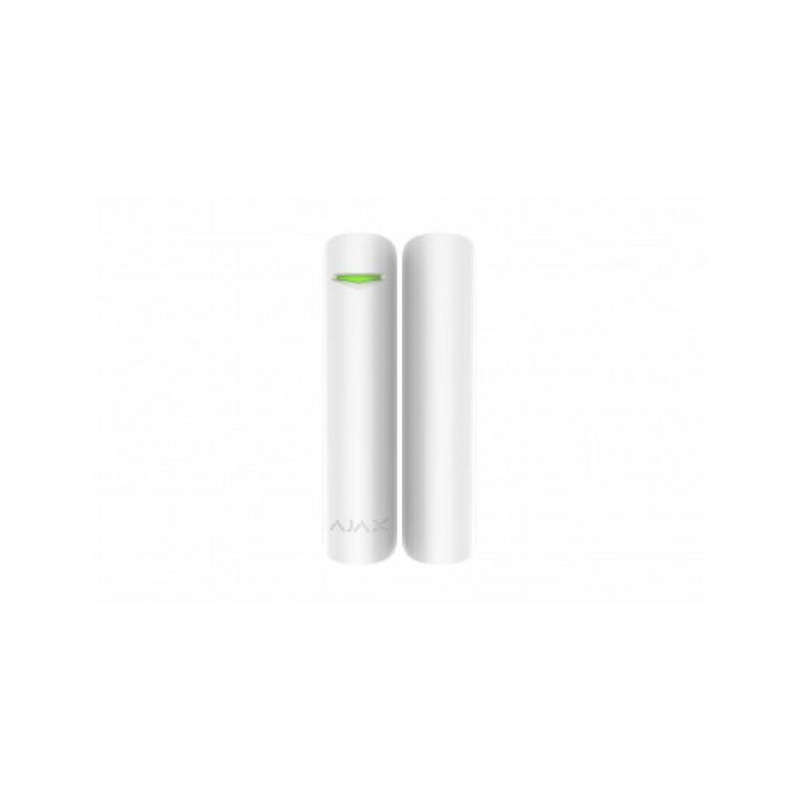

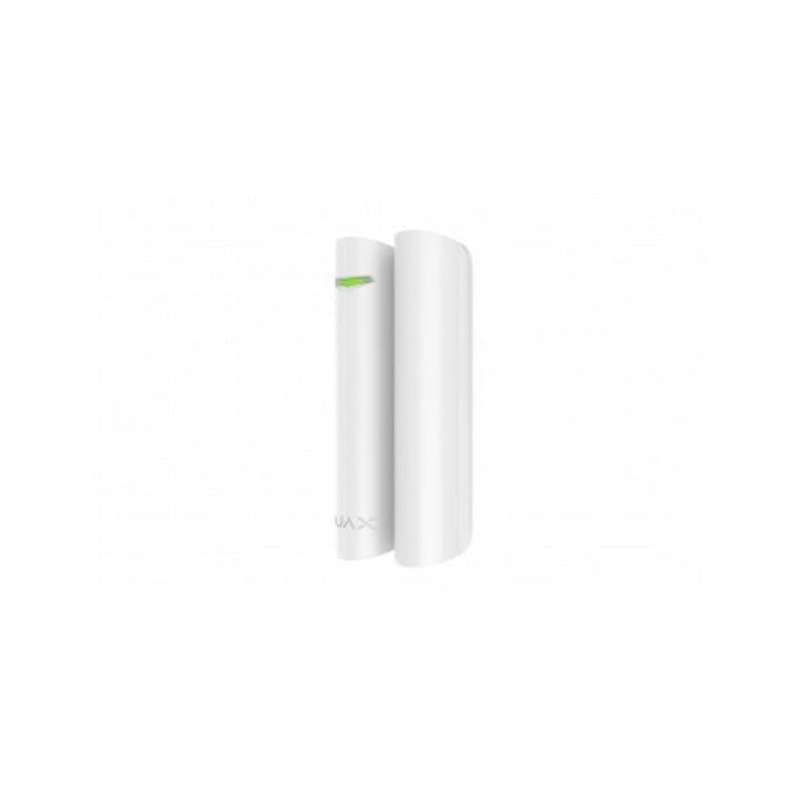

Ajax DoorProtect Plus Wi-Fi Jeweller White
Guardian for doors, windows, and valuables
DoorProtect Plus Jeweller is designed to detect intrusion and burglary attempts, offering comprehensive coverage for doors, windows, skylights, and vaults. Equipped with a reed switch as an opening sensor, the detector features protection against chattering in its operation. Two magnets of different sizes provide more installation options. The device also detects shock and tilt with a built-in accelerometer, protecting the facility even when windows are in airing mode. All in line with the Ajax user experience, ensuring quick and easy device installation.
Discover future-proof hardware
- Reed switch
- Accelerometer
- Pre-installed battery
- Two magnets of different sizes
- Tamper against detaching the detector from the surface
- Jeweller antenna
- Terminals to connect a third-party NC detector
- SmartBracket mounting panel
No intruder goes unnoticed
Reed switch for reliable opening detection
DoorProtect Plus Jeweller features a durable reed switch that guarantees decades of trouble-free operation. Housed in a resilient plastic capsule, the reed switch remains intact during transportation, even in case of drops. Two magnets of different sizes provide more installation options: the small one operates at a distance of up to 1 cm from the reed switch, and the large one up to 2 cm. The detector functions effectively irrespective of magnet placement.
Immediate detection of threats
The built-in accelerometer swiftly responds to shock, detecting potential burglary attempts, such as door forcing and vault breaches. The shock sensor features three sensitivity levels that can be adjusted to match facility specifics. The detector can also ignore a single impact to minimize the risk of false alarms triggered by external factors. The installer can choose the appropriate settings for accurate detection, even in environments with vibrations from neighboring constructions or heavy passing traffic.
Windows protection in an airing mode
The built-in accelerometer protects open windows, seamlessly adapting to diverse facility specifics. For doors and windows, installers can set up a tilt angle of the detector, ranging from 5 to 25 degrees. The system swiftly detects even the slightest deviations from the initial value and provides adjustable tilt alarm delay, ranging from 1 second to 1 minute. If the tilt angle surpasses the initial value for longer than a specified time, the system raises an alarm.
Enhanced security with additional detectors
DoorProtect Plus Jeweller has terminals for connecting any third-party wired NC detector that can be used to enhance the reliability of the system. An installer can integrate a detector operating on a different principle, such as a roller shutter motion detector. When connected to DoorProtect Plus Jeweller, a third-party detector promptly responds to alarms from other detectors and cable breakage.
Use a detector as a doorbell
The Chime feature transforms the combination of an Ajax opening detector and siren into a shopkeeper's bell. When the system is disarmed, the siren notifies about door openings with one of four available short sound signals. PRO users can adjust the volume and assign different signals for separate entrances, making it easy to recognize whether someone entered through the main or a back door.
Wire-free flexibility and reliable performance
Baseline devices operate without any wires, offering maximum flexibility during installation. The pre-installed CR123A battery from proven manufacturers ensures a hassle-free setup, requiring no additional steps to start operating the devices. In addition to real-time testing during battery production, Ajax Systems inspects every unit to ensure the accuracy of the battery characteristics. The battery can be easily replaced after approximately five years of autonomous operation. Its status is always accessible in the Ajax app. Users and security companies receive low battery level notifications months in advance, allowing for timely replacement without rushing.
Unique wireless technology
An Ajax system uses two-way secure radio communication based on the Jeweller proprietary protocol. It provides block encryption and device authentication at each communication session with the hub to prevent sabotage, spoofing, or data theft.
Effortless installation and setup
DoorProtect Plus Jeweller is ready to operate straight out of the box. Using the SmartBracket panel, an installer can effortlessly mount the device, eliminating the need to disassemble the enclosure. Ajax apps help quickly make the device a part of the ecosystem: simply pair the device with the hub by scanning the QR code. It can always be reconfigured remotely without the need for on-site visits.
Jeweller communication technology
Proprietary wireless technology to transmit alarms and events.
Features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote configuration via the Ajax apps.
Specifications:
Maximum effective radiated power (ERP): up to 20 mW
Radio signal modulation: GFSK
Radio communication range: up to 1,200 m
Detection
Sensitive elements: 1 × accelerometer, 1 × reed switch
Additional detector connection: Third-party wired detector with the NC (normally closed) contact type.
Shock sensitivity: 3 levels
Option to ignore single shock: Adjusted by a PRO or user with admin rights in the Ajax app.
Tilt sensor activation threshold: from 5° to 25°
Anti-sabotage protection
Tamper alarm: Notifications of attempts to tear off the detector from the surface or remove it from the mounting panel.
Power supply
Battery: 1 × CR123A
Type: type C
Calculated battery life: up to 5 years
Dimensions: 20 × 90 mm
Weight: 29 g
Protection class: IP50
