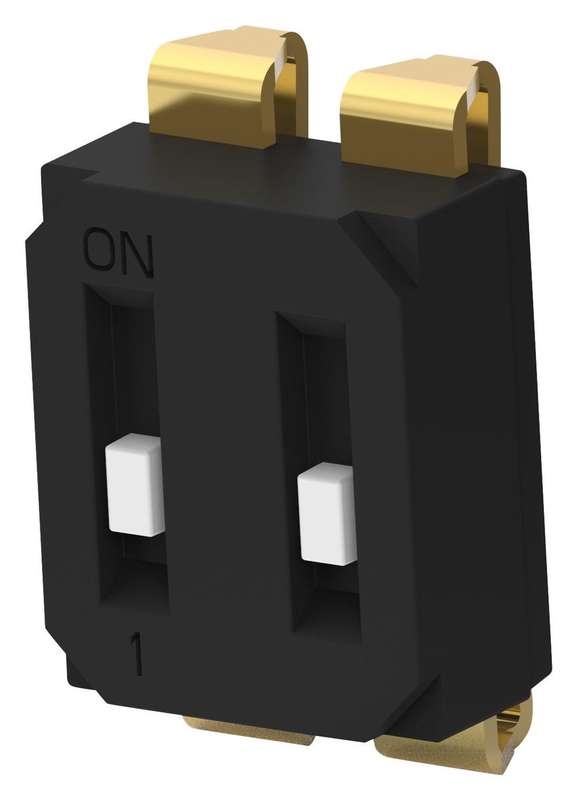

Alcoswitch (EDS02SNRSTU04Q) DIP / SIP Switch, SPST, 24 V, 25 mA

DIP / SIP Switch, Recessed Type, 2 Circuits, Slide, Surface Mount, SPST, 24 V,25 mAProduct InformationNo. of Circuits: 2CircuitsContact Configuration: SPSTSwitch Actuator Style: SlideSwitch Mounting: Surface MountSwitch Type: DIP SealedContact Voltage DC Max: 24VContact Current DC Max: 25mAProduct Range: EDSProduct OverviewThe EDS02SNRSTU04Q from Alcoswitch - TE Connectivity is a 2 pole, end stackableDIP switch with recessed actuator. The end-stackable design saves space on thePCB and allows for large position counts without sacrificing 2.54mm centrelinespacing. Available with gold contact plating which enables high reliability andcorrosion resistance. Typical application includes mated control boards, fireand security systems, thermostats, elevator/escalator and telecommunicationdevices.PA(high temperature nylon) base and cover, UL-94V0 flammability rating, SPSTconfigurationSMT J lead terminals, top sealLCP actuator, copper alloy with gold plated contactsBrass alloy with gold plated terminalContact rating is 100mA at 50VDC(non switching), 25mA at 24VDC(switching)Initial contact resistance max is 100mohm at 2VDC, 10mAMinimum insulation resistance is 100Mohm at 500VDCDielectric strength is 500VAC(50Hz or 60Hz), durability is 2000cycle,capacitance is 5pF max at 1MHzOperating temperature range from -20°C to 85°CApplicationsIndustrial, Automation & Process Control, Security
