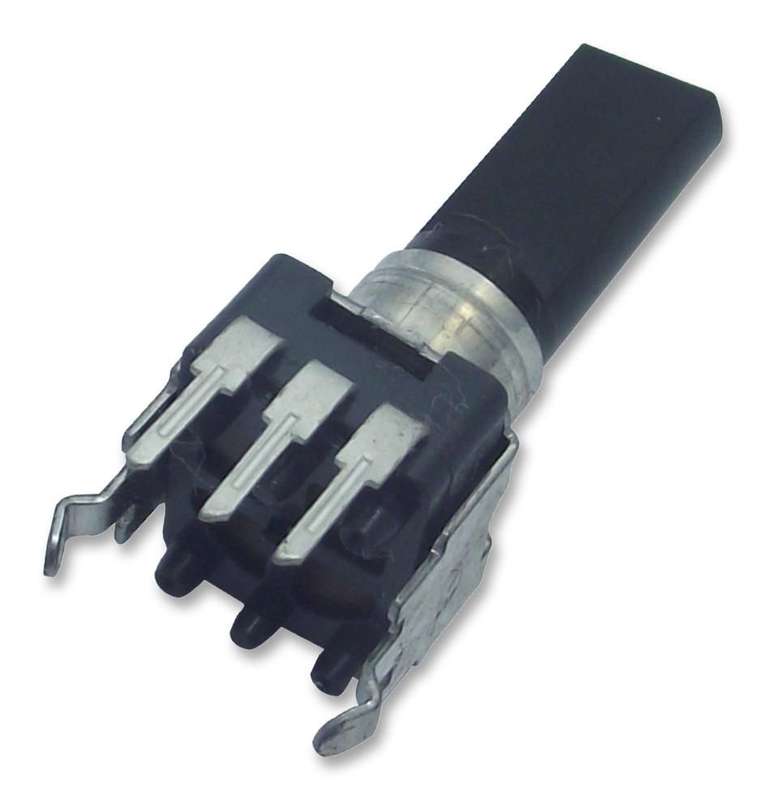

Alps Alpine (RK09K1130C94) Rotary Potentiometer, 100 kohm, 1 Turns

Rotary Potentiometer, 100 kohm, 1 Turns, Linear, 50 mW, ± 20%, RK09Product InformationTrack Resistance: 100kohmNo. of Turns: 1TurnsTrack Taper: LinearPower Rating: 50mWResistance Tolerance: ± 20%Product Range: RK09Potentiometer Mounting: Through HoleShaft Diameter: 6mmNo. of Gangs: 1Adjustment Type: FlattedShaft Length: 17mmTemperature Coefficient: -Potentiometer Type: -Resistor Technology: -Potentiometer Terminals: PC PinResistor Case / Package: -Product Length: 28.8mmProduct Width: 9.8mmProduct Height: 11mmOperating Temperature Min: -10°COperating Temperature Max: 70°CProduct OverviewThe RK09K/D series from Alps are insulated shaft snap-in rotary potentiometers.These are compact type potentiometer with 9.8mm wide and are ideally designedfor high density sets and audio applications.Single unit or dual unit resistor elementFlat knob and screw driver type shafts availableLength of the shaft varies from 15mm to 30mmWith or without center detent option availableTotal resistance of 5Kohm, 10Kohm, 20Kohm, 50Kohm, 100Kohm and 200KohmTotal resistance tolerance of ±20% and ±30%Horizontal and vertical type mounting availableOperating temperature range -10°C to 70°CTotal rotational angle of 280° or 300°and maximum power rating up to 0.05W15A, 15C, 1B, 3B resistance taper available
