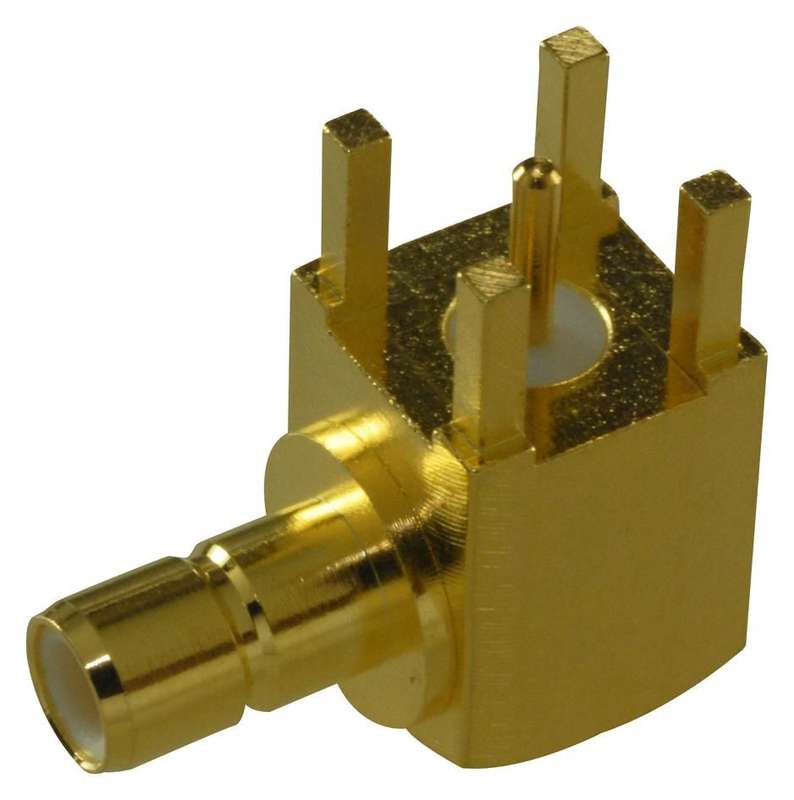

Amohenol (SMB1252B1-3GT30G-50) RF / Coaxial Connector, SMB Coaxial,

RF / Coaxial Connector, SMB Coaxial, Right Angle Jack, Through Hole Right Angle,50 ohm, BrassProduct OverviewThe SMB1252B1-3GT30G-50 is a Right Angle Jack with gold-plated brass contactsand a PTFE insulation. The SMB connector conforms to the requirements ofMIL-C-39012 and the interface is in compliance with MIL-STD-348. The SMBprovides broadband capability through 4GHz with a snap-on connector design andutilizes die-cast components on non-critical areas to provide a low-costsolution. This right angle jack is suitable for PC board.Quick connect/disconnect snap-on mating reduces installation timeSMB PCB slide-on jack allows board-to-board mounting with a low insertion forceAnnealed copper alloy crimp ferrule1000MR Minimum insulation resistanceApplicationsAutomotive, Communications & Networking, Sensing & Instrumentation, Computers &Computer Peripherals, Automation & Process Control, Test & Measurement, Imaging,Video & VisionProduct InformationConnector Type: SMB CoaxialConnector Body Style: Right Angle JackCoaxial Termination: Through Hole Right AngleImpedance: 50ohmCoaxial Cable Types: -Contact Material: BrassContact Plating: Gold Plated ContactsFrequency Max: 4GHzConnector Mounting: PCB MountProduct Range: -
