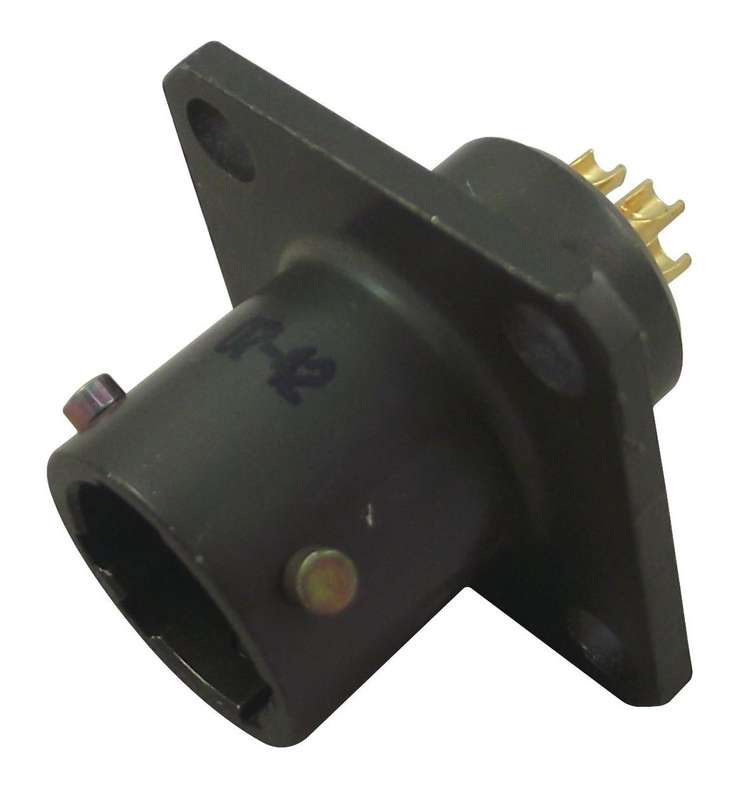

Amphenol (451 02E 1210P 50) Circular Connector, 451, Box Mount Receptacle

Circular Connector, 451, Box Mount Receptacle, 10 Contacts, Solder Pin, Bayonet,12-10Product OverviewThe 451 02E 1210P 50 from Amphenol is 451 series, MIL-DTL-26482 series Iequivalent box mount receptacle with 10 contacts. The 451 series miniaturecylindrical connectors offer high density contact arrangements in a circularshell with salt spray exposure of 48hour, 500hour. These connectors have 5key/keyway polarization with 3 point bayonet lock coupling for positive matingwith no chance of cross plugging. Spring tension provided by a wave washer inthe coupling nut ensures maintenance of interfacial seal between mating halves.Both the insert and main joint gasket are moulded from resilient neopreneinsulator. These connectors are designed for harsh environments and havewell-proven electrical capability to withstand extreme shock, exposure andvibration. The high reliability performance makes 451 series ideal forenvironmental sealing or pressurized applications.Quick disconnect bayonet coupling for rapid mating and unmatingIntermateable, intermountable and interchangeable with all MIL-DTL-26482connectors500 mating cyclesOperating temperature range from -55°C to +125°CInsulation resistance is 5000Mohm at 25?CAluminium alloy body material with olive drab chromate over cadmium platingCopper alloy solder pin contacts with gold platingApplicationsIndustrial, CommercialProduct InformationProduct Range: 451Circular Connector Shell Style: Box Mount ReceptacleNo. of Contacts: 10ContactsCircular Contact Type: Solder PinCoupling Style: BayonetInsert Arrangement: 12-10Connector Body Material: Aluminium Alloy BodyConnector Body Plating: Olive Drab Chromate over CadmiumContact Material: Copper AlloyContact Plating: GoldInsert Rotation: NService Class: Environmentally SealedEquivalent Military Specification: MIL-DTL-26482 Series I
