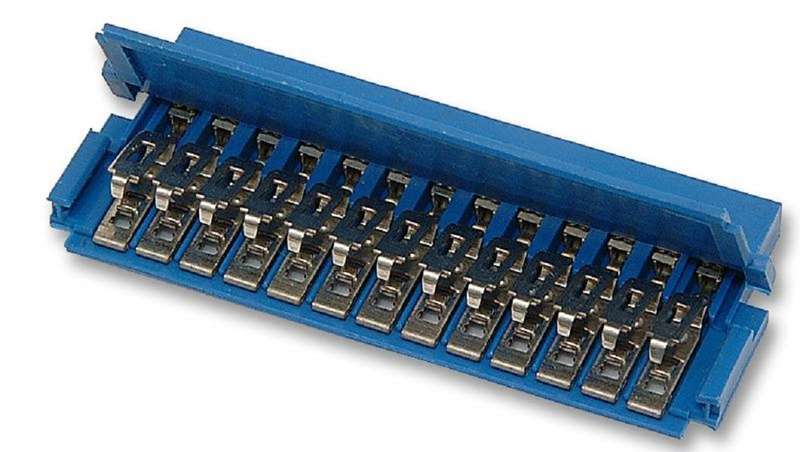

Amphenol (65801-016LF) FFC / FPC Board Connector, Planar, 2.54 mm

FFC / FPC Board Connector, Planar, 2.54 mm, 16 Contacts, Receptacle, FCIClincher, IDC / IDTProduct OverviewThe Clincher series CLINCHER Connector family includes single-row pin andreceptacle connectors designed for termination to flat flexible circuitry.Products are available for flat flexible cable (FFC), flexible printed circuit(FPC) and conductive ink circuitry (CIC). The connector includes features thatoptimize reliability at both the termination and disconnect interfaces. Clinchcable termination produces gas-tight, contamination-free connections to eachconductor. The receptacle connector utilizes FCI's proven and highly-reliableMini PV contact design. Complementary shrouded PCB headers provide options forlatching and proper connector alignment. The contacts are pre-loaded toconnector housings enabling mass termination to unprepared cable. The CLINCHERconnector mass termination design accelerates cable assembly processes. Itfeature positive-locking, latching options assure secure mating toindustry-standard headers for severe applications.Clinch cable termination provides 4 gas-tight, contamination-free contact pointsto each conductorReceptacle design features highly-reliable Mini PV dual-metal contactsHousing window permits crimp inspection to verify proper terminationReceptacle openings feature a bevelled lead-in to reduce risk of stubbing withmating pinsConnector sizes range from 2 to 34 positionsPolarization options aid proper alignment and matingTwo-wall PCB headers provide passive proper terminationReceptacle openings feature a bevelled lead-in environmental regulationApplicationsConsumer Electronics, Logistics, Industrial, Sensing & Instrumentation, MedicalProduct InformationPitch Spacing: 2.54mmNo. of Contacts: 16ContactsGender: Receptacle (View Associated Connectors)Product Range: FCI ClincherContact Termination Type: IDC / IDTNo. of Rows: 1RowsNo. of Rows: 1 RowContact Plating: Tin Plated ContactsContact Material: Copper AlloyFFC/FPC Thickness: 0.3mm
