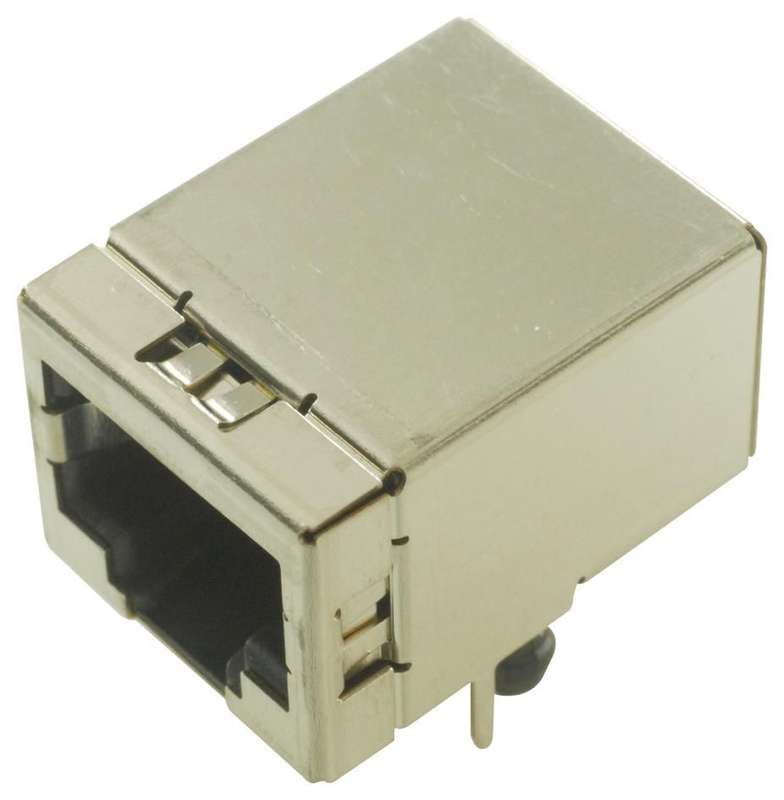

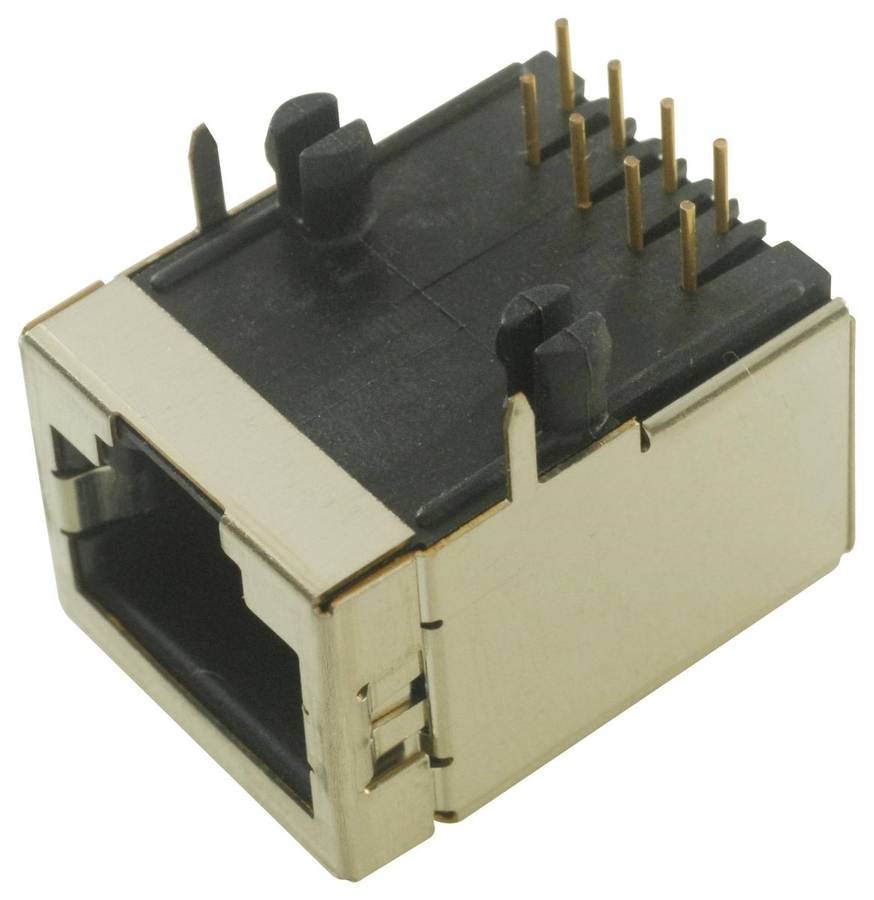

Amphenol (95678-001LF) Modular Connector, RJ45 Jack, 1 x 1 (Port)

Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat5, Through Hole MountProduct OverviewThe 95678-001LF is a CAT-5 8P8C/RJ45 Modular Jack Socket with 5µinch gold-platedphosphor bronze alloy contacts and high temperature resin housing. The housingtemperature withstands exposure to 260°C peak temperature for 15 seconds in awave solder application with a 1.5mm minimum thick circuit board.Brass alloy shieldApplicationsIndustrialProduct InformationModular Connector Type: RJ45 JackPort Configuration: 1 x 1 (Port)Gender: JackNo. of Contacts: 8ContactsNo. of Positions / Loaded Contacts (per Port): 8P8CNo. of Positions: 8WaysIP Rating: -LAN Category: Cat5Connector Mounting: Through Hole MountNo. of Ports: 1PortsConnector Orientation: Right AngleContact Termination Type: Through HoleShielding: ShieldedMagnetics: Without MagneticsContact Plating: Gold Plated ContactsLEDs: Without LEDContact Material: Phosphor BronzeLight Pipes: Without Light PipeProduct Range: FCI 95678
