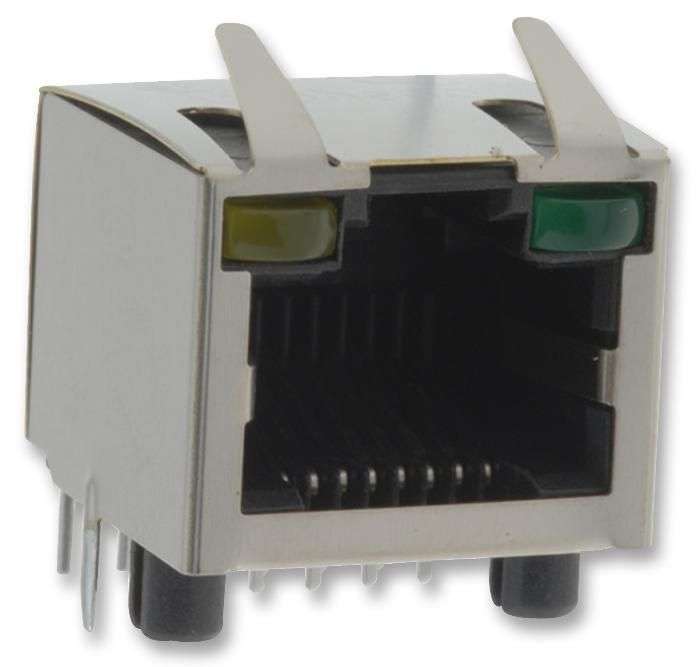

Amphenol (RJHSE-5384) Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C

Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat5, Through Hole MountProduct OverviewThe RJHSE-5384 is a CAT-5 8P8C/RJ45 EMI Quiet Modular Jack with built-in LEDs,high temperature engineering thermoplastic insulator and right angle,8-position, 50µinch gold-plated phosphor bronze hard temper contacts. Themodular jack features stainless steel with tin dipped tails shield, shield withtop tabs. This product is ideal for LAN applications such as adapter cards androuters.Tin-plated LED tails20mR Maximum contact resistance500MR at 500VDC for 2 minutes Maximum insulation resistance1.5A Current rating125VAC Voltage rating1000VAC/minute at 60Hz DMVGreen LED-2 (left) and yellow LED-1 (right)-55 to + 85°C Operating temperatureApplicationsCommunications & NetworkingProduct InformationModular Connector Type: RJ45 JackPort Configuration: 1 x 1 (Port)Gender: JackNo. of Contacts: 8ContactsNo. of Positions / Loaded Contacts (per Port): 8P8CNo. of Positions: 8WaysLAN Category: Cat5Connector Mounting: Through Hole MountNo. of Ports: 1PortsConnector Orientation: Right AngleContact Termination Type: Through HoleShielding: ShieldedMagnetics: Without MagneticsContact Plating: Gold Plated ContactsLEDs: With LEDContact Material: Phosphor BronzeLight Pipes: Without Light PipeProduct Range: RJHSE
