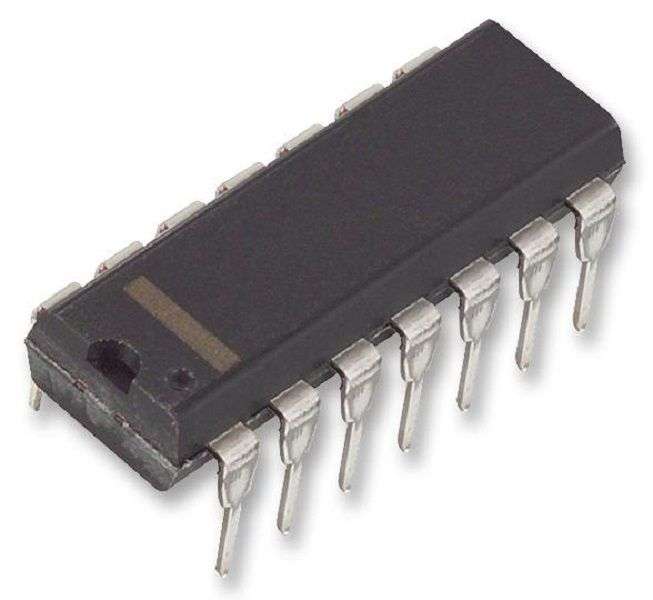

Analog Devices(MAX1489EEPD+) Line Receiver RS232

Product OverviewThe MAX1489EEPD+ is a ±15KV ESD-protected, quad, low power RS232 line receiverin 14 pin DIP package. The line receiver is designed for EIA/TIA-232,EIA/TIA-562 and CCITT V.28 communications in harsh environments. Each receiverinput is protected against ±15KV electrostatic discharge (ESD) shocks. Theinputs have a ±25V range and feature hysteresis and time-domain filtering. Thisdevice is used for interfacing data terminal equipment (DTE) with data circuitterminating equipment (DCE), modems and PC motherboards.Supply voltage range is 4.5V to 5.5VOperating temperature range from -40°C to 85°CData rate of 120KbpsTypical supply current is 350µAPin compatible with MC1489, MC14C89, SN75189, SN75C189, DS1489 and DS14C89Latchup free during an ESD EventStable input thresholdsTTL and CMOS compatible outputsProduct InformationDevice Type: ReceiverIC Interface Type: RS232No. of Receivers: 4ReceiversSupply Voltage Min: 4.5VSupply Voltage Max: 5.5VDriver Case Style: DIPNo. of Pins: 14PinsOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: -Automotive Qualification Standard: -MSL: MSL 1 - UnlimitedIC Generic Number: MAX1489E
