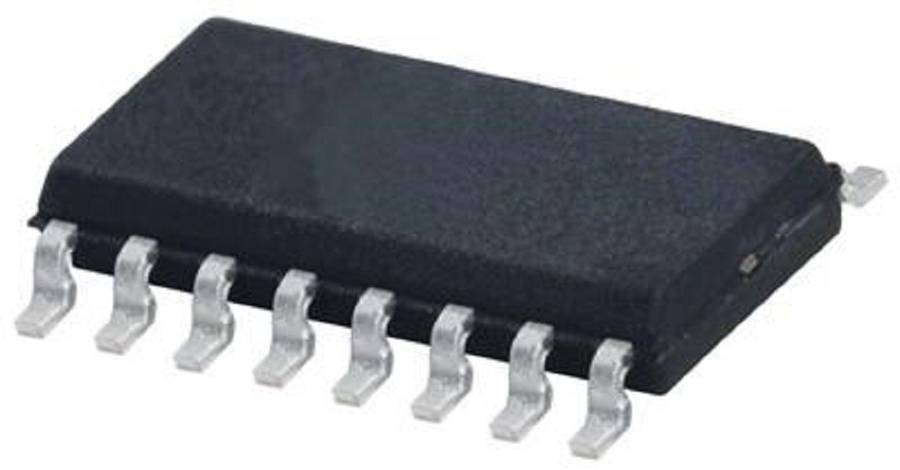

Analog Devices (MAX3043CSE+) Transmitter RS422, RS485

Product OverviewThe MAX3043CSE+ is a ±10KV ESD protected, quad 5V RS485/RS422 transmitter in 16pin NSOIC package. It is designed for digital data transmission over twistedpair balanced lines. The transmitter output is protected to ±10KV using humanbody model. MAX3043CSE+ is slew rate limited transmitter that minimizes EMI andreduces reflections caused by improperly terminated cables, thus allowing errorfree transmission. This device with hot swap capability eliminates falsetransitions on the data cable during power-up or hot insertion. It offersoptimum performance when used with the MAX3093E or MAX3095 5V quad differentialline receivers or MAX3094E/MAX3096 3V quad differential line receivers. Thedevice is ESD protected pin compatible, low power upgrades to the industrystandard SN75174 and DS26LS31C.Supply voltage range from 4.75V to 5.25VOperating temperature range from 0°C to 70°CData transfer rate is 250KbpsOperating supply current is 1mALow power shutdown mode is 2nAWithstand ±4KV per IEC 1000-4-4 EFT fast transient burst immunityLevel 2 surge immunity per IEC 1000-4-5, unshielded cable modelApplicationsCommunications & Networking, Industrial, Portable DevicesProduct InformationDevice Type: TransmitterIC Interface Type: RS422, RS485No. of Drivers: 4DriversSupply Voltage Min: 4.75VSupply Voltage Max: 5.25VDriver Case Style: NSOICNo. of Pins: 16PinsOperating Temperature Min: 0°COperating Temperature Max: 70°CProduct Range: -Automotive Qualification Standard: -MSL: MSL 1 - Unlimited
