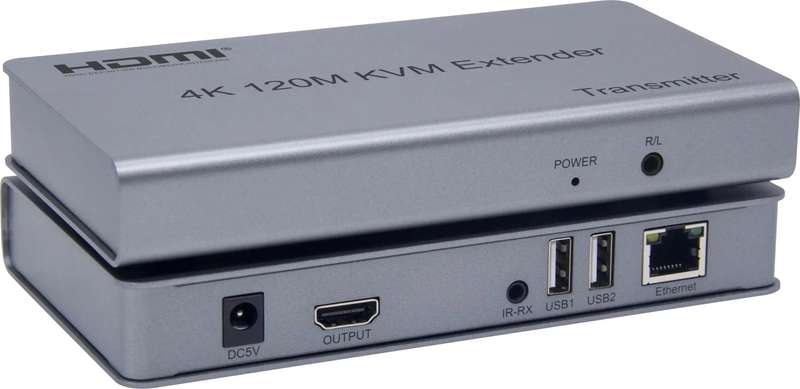

120M HDMI KVM extender video resolution up to 4K
HDMI Over Ethernet is based on TCP/IP standard. It transmit your HD display with the high resolutions up to 120 meters away from your HDMI or DVI-D source by using one CAT5e/6 cable. With the advantage of TCP/IP standard, you can extend your HD video to multiple displays by using an Ethernet Switch, providing greater flexibility and options when integrating several home theater components.
Features:
* Support HDMI4k 30Hz/HDCP4k 30Hz
* Support local loop-out ;
* Support 120m long distance transmission:
* Low power consumption, low temperature and high safety;
* Both the TX and RX support 3.5MM left and right audio output;
* Support IR control;
* Support USB mouse and keyboard extension;

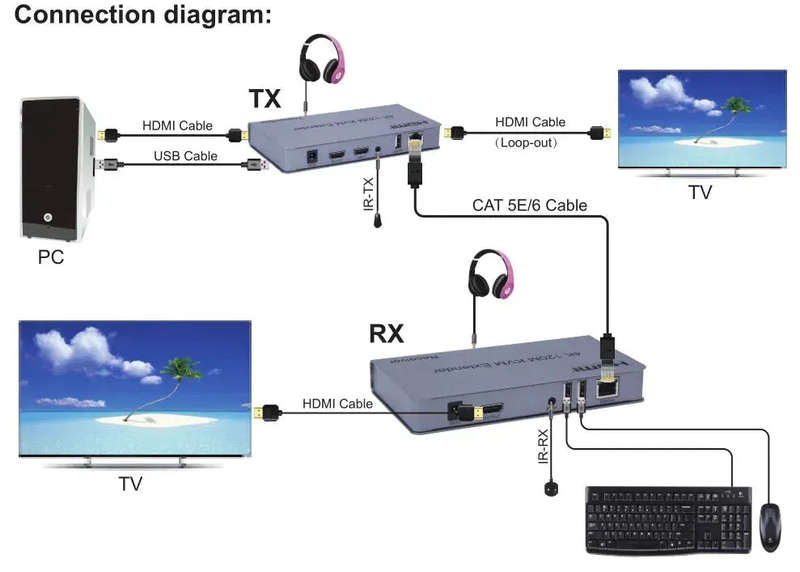

Operating and Connecting:
1.Connect one HDMI cable between source device and TX Extender
2.Connect one HDMI cable between sink device and RX Extender
3.Connect Single cat-5e or cat-6(recommended) cables up to 200 meters instead of HDMI cables between TX and RX Extender
4.Connect 5V power supply to the Extender

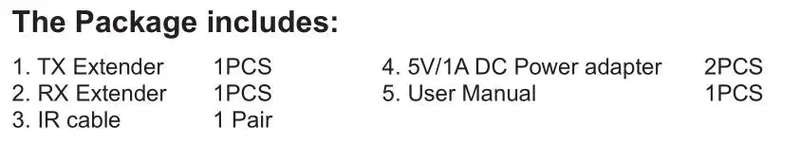

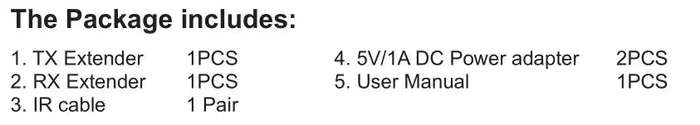

SPECIFICATIONS: HDES120-KVM
| Length of CAT-6 cable between Rx and TX | Up to 120 metres |
| HDMI Resolutions | 480p,720p,1081p,4K |
| Audio | Sample rate: 32kHZ, 44.1kHZ and 48kHZ |
| IR remote control | 38KHZ; NEC |
| HDMI | HDMI 4k 30Hz |
| Max bandwidth | 340MHz |
| Max baud rate | 3X3.4Gbps |
| Input Video signal | 0.5~1.5Volts p-p |
| Output DDC signal | 5Volts p-p (TT1L) |
| Input/Output HDMI1.3 cable distance | <=20m AWG26 HDMI 1.3 standard cable |
| Power consumption | HDMI Sender: 3W HDMI Receiver: 3W |
| Power adapter format | Input:AC (50HZ~60HZ) 100V-240V; Output: DC5V/1A |
| Operating Temperature range | (0 to +45 Centigrade) |
| Operating Humidity range | 10 to 80%RH (No Condensation) |
| Dimension (L x W x H) | 107x105x27.3mm |
| Weight | 499g*2PCS |

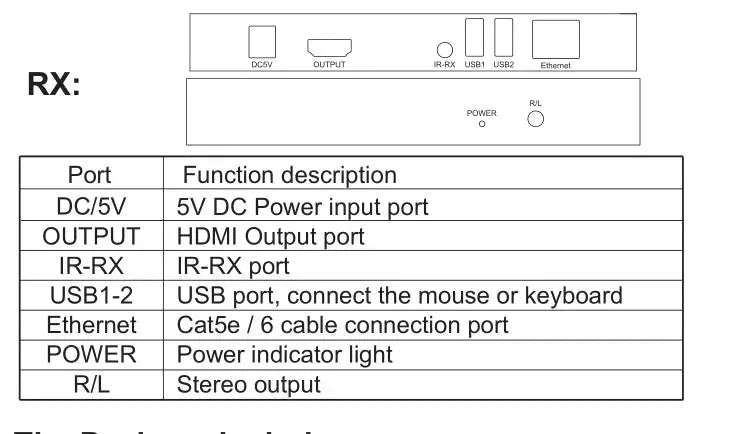

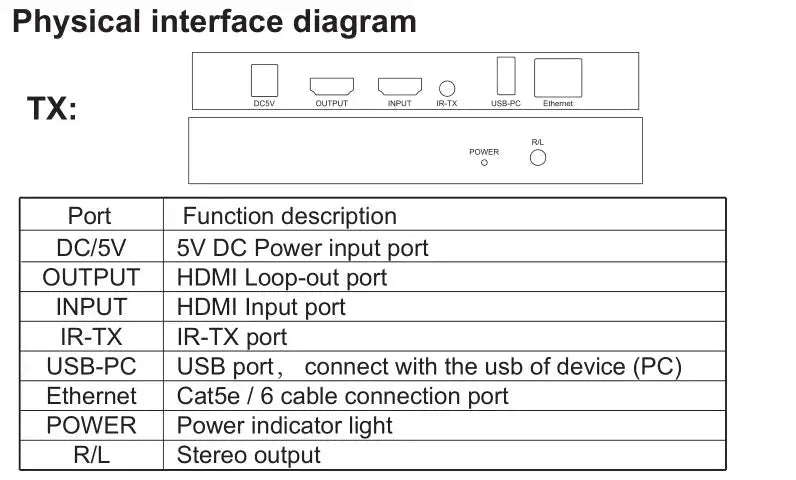

Connecting and Operating:
1.Connect one HDMI cable between source device and TX Extender, the max cable
distance is 10 meters.
2.Connect one HDMI cable between display device and RX Extender, the max cable
distance is 10 meters.

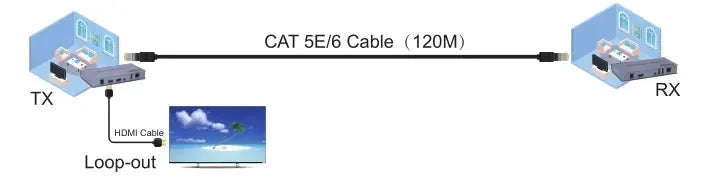

3.Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between
TX and RX Extender, the max cable distance is 120 meters.
4.Connect 5V power supply to the TX and RX.
5.Plug the mouse and keyboard into the USB port of the receiver, and connect the USB
port of the transmitter with the computer if you need the KVM control function.
6.LED indicator light
TX LED indicator light: Turn it on, green light; when there is a signal input,
the yellow light flashing.
RX LED indicator light: Turn it on, green light; when there is a signal input,
the yellow light flashing.
7.The pairs of IR RX and IR TX cable connect the 3.5mm IR RX and IR TX port of the
receiver and transmitter respectively.(Just connect when you need it).
