ANENG 612 Smart Multimeter

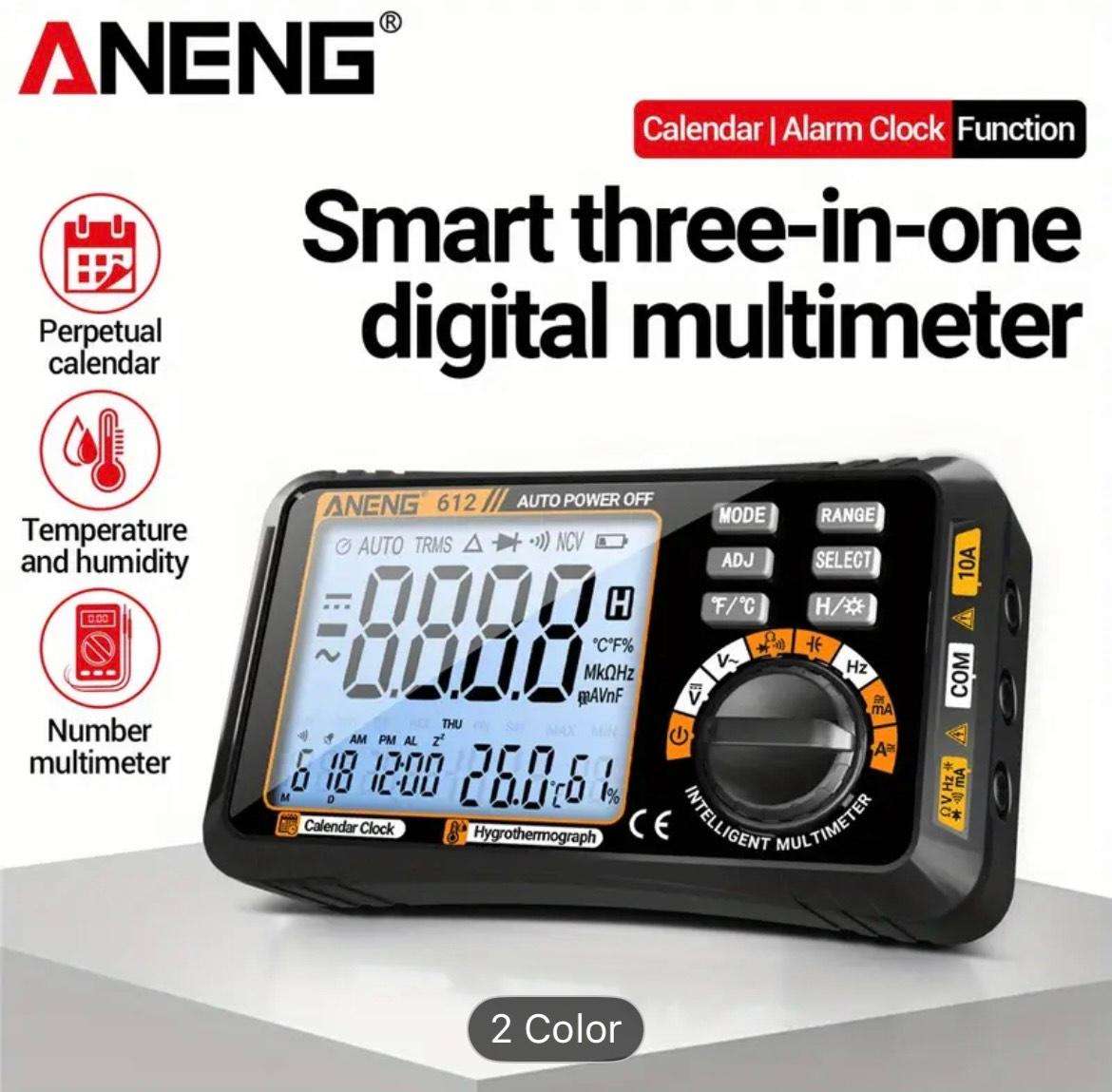

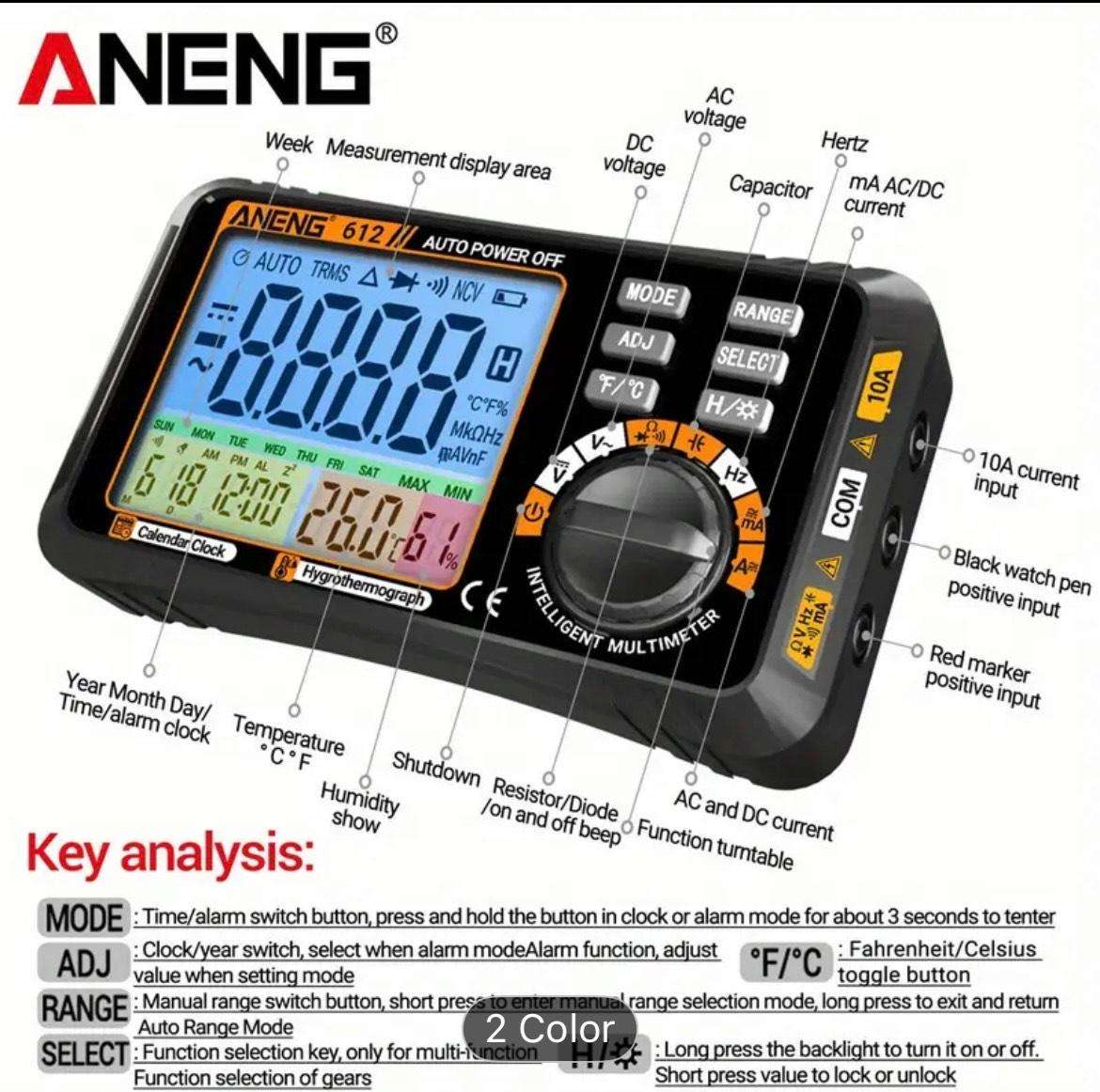

ANENG 612 Smart Multimeter Real-time Power-off Measuring Tester AC/DC Ammeter Voltmeter 4000 Count Digital Multimetro Test Tools Description: This instrument performs AC/DC voltage, AC/DC Current, Resistance, Audible Continuity, Diode, Frequency and Temperature measurements; it is a 3 3/4 digits, 4000 counts auto ranging DMM. It has the functions of polarity indication, data hold, over range indication and automatic power-off. lt can be operated easily and is an ideal instrument tool.

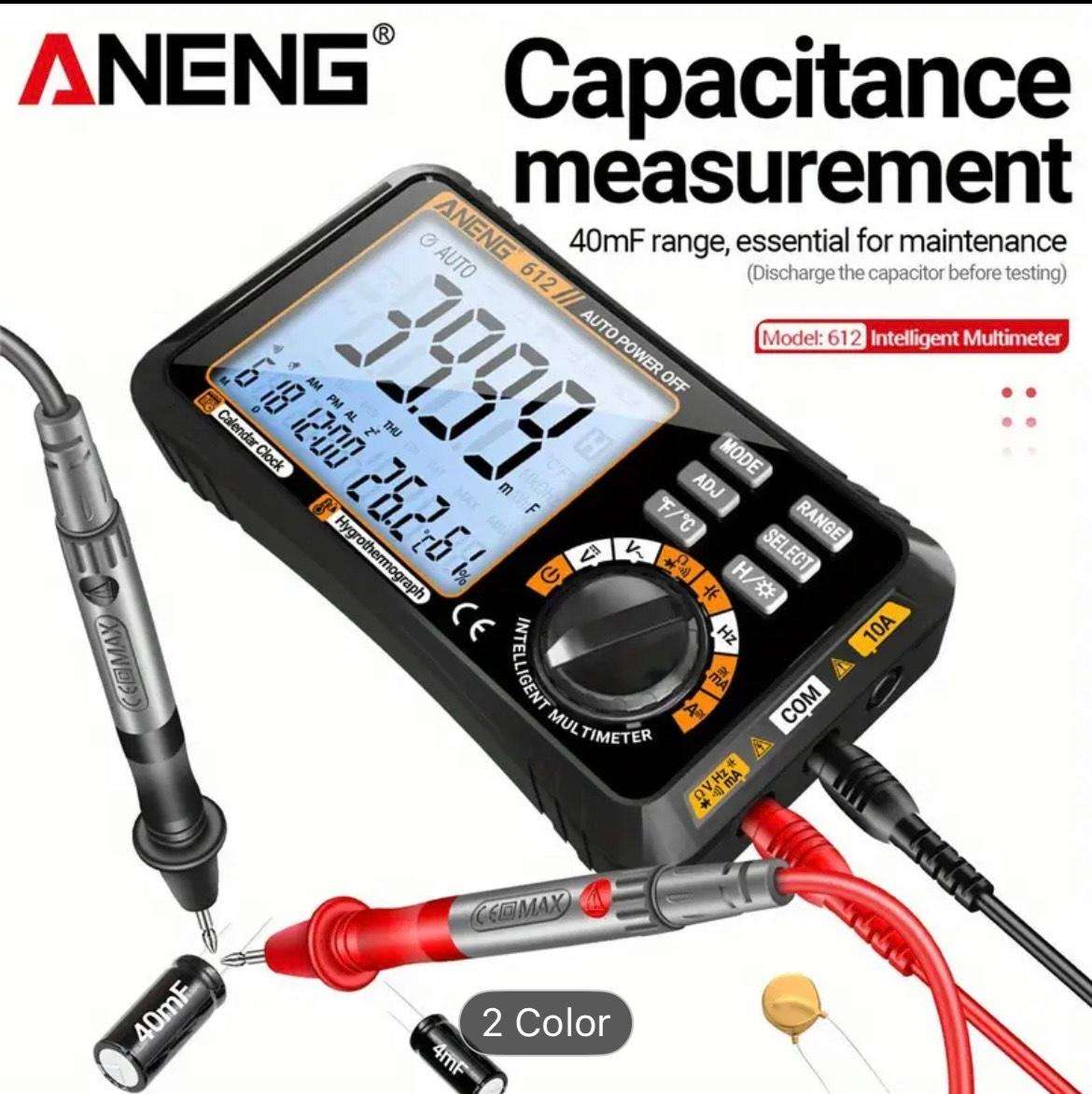

Specification: Function Range Resolution    Precision AC current 0mA-10A 10A-10mA ±(2.2% reading + 10 words) DC current 0mA-10A 10A-10mA ±(1.8% reading + 8 characters) AC voltage 0mV-600V 1mV-1V ±(1.5% reading + 8 characters) DC voltage 0V-600V 0.1mV-1V ±(1.5% reading + 5 words) Capacitor 0nF-40mF 10pF-1F ±(6% reading + 20 words) Resistance 0-40M 0.1-10K ±(1.5% reading + 10 words) Hz 400/4K/40K/400K/4MHz ±(1.5% reading + 10 words) Diode Real-time temperature °C°F

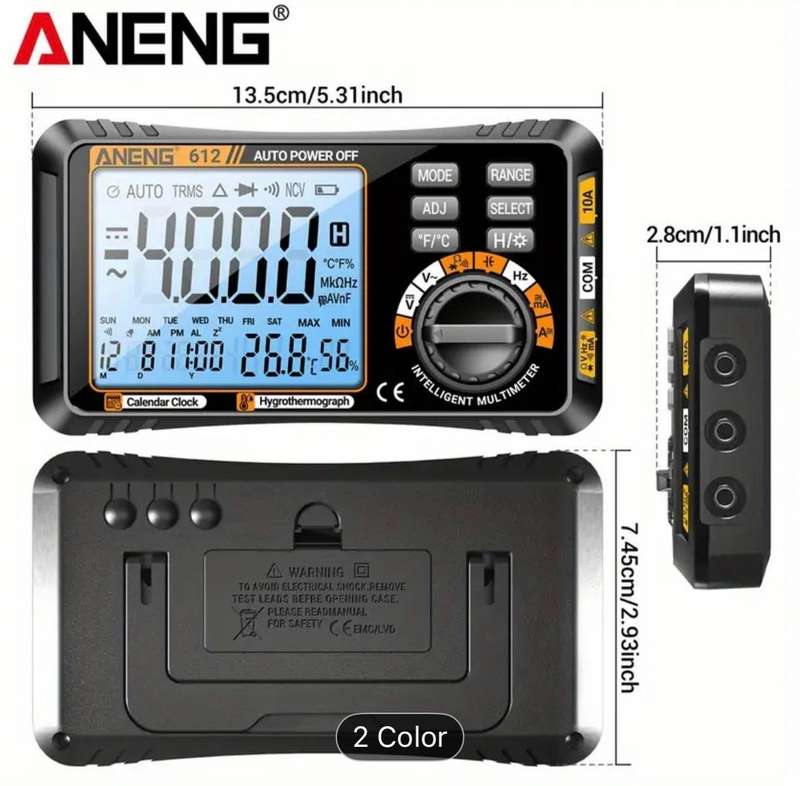

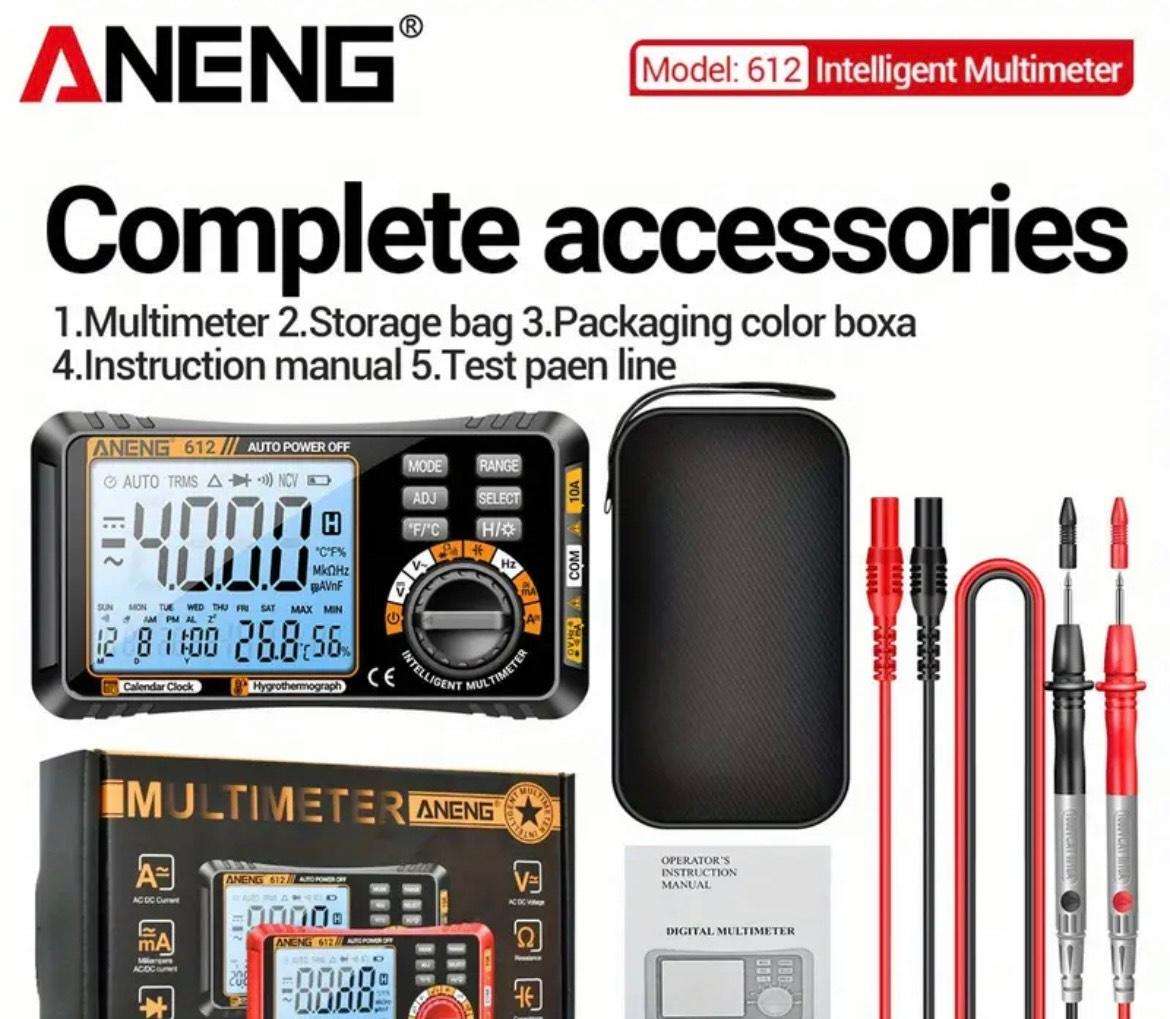

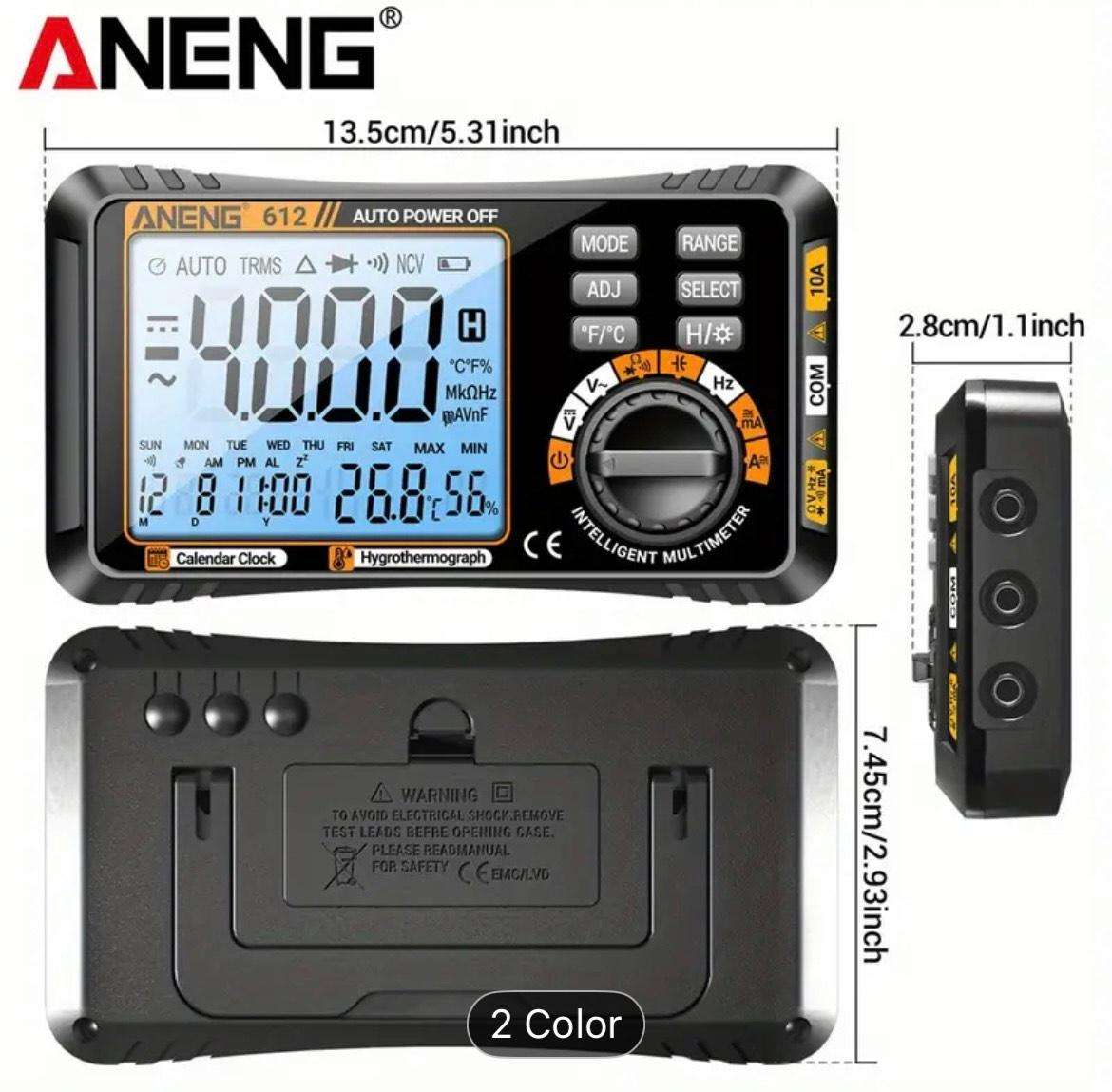

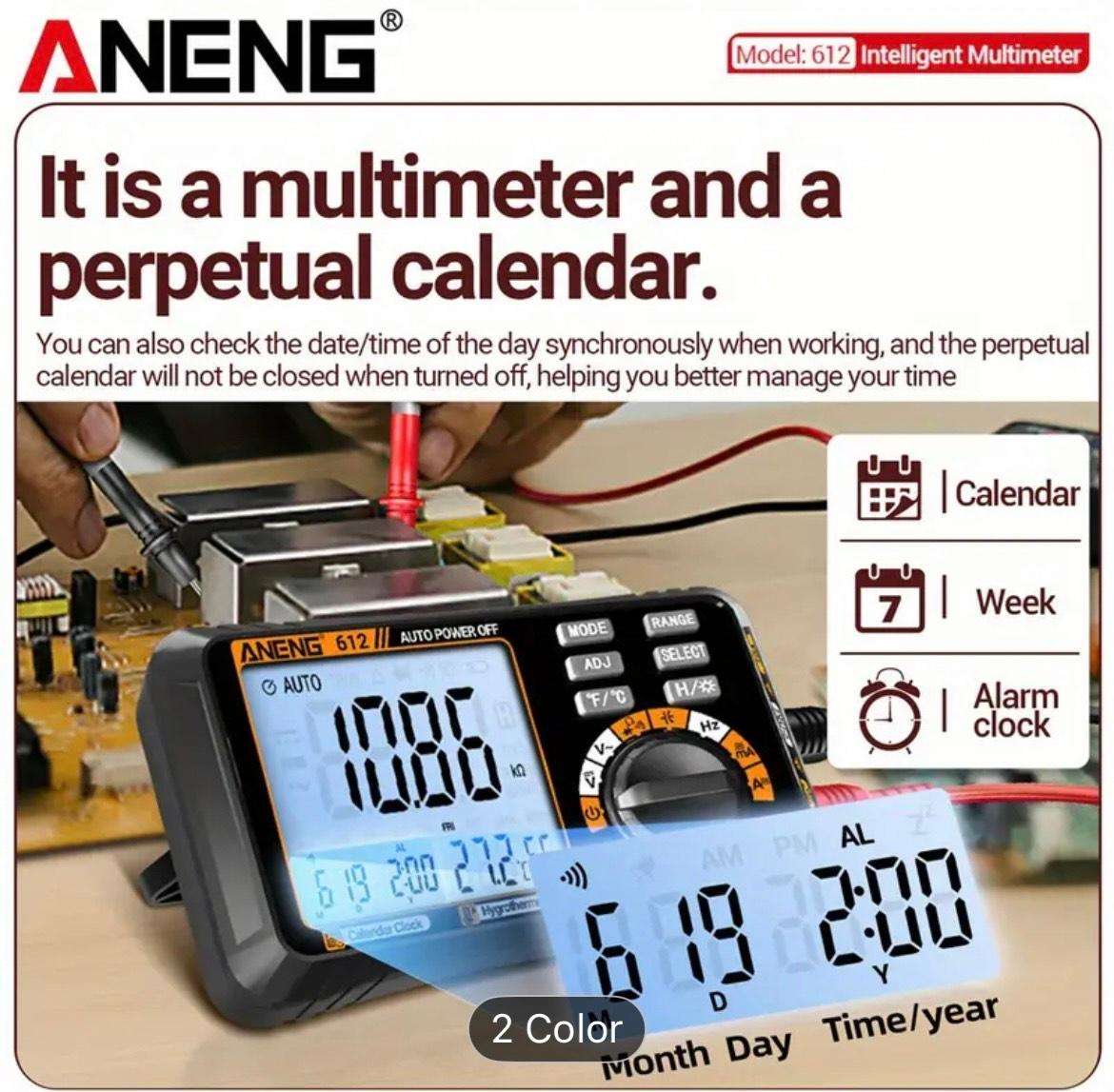

Buzzer Humidity Automatic shutdown 15 No operation automatic shutdown Perpetual calendar Weight 114g Timed alarm clock Maximum count 4000 Counts H Data retention Material ABS LCD Backlight screen Battery model 1.5V AAA battery* 2 (without shipment) Low power prompt Package Include(Batteries without shipment):     1.Multimeter*1       2.Storage bag*1 3.Packaging color box*1 4.English Instruction manual*1

Usage Precautions: 1. Do not touch the probes directly with your hands to avoid electric shock and ensure personal safety during testing. 2. Before use, inspect the test probes to ensure there is no damaged insulation or exposed metal. 3. Do not use the current and voltage ranges interchangeably to prevent damage to the instrument.

4. It is best to remove the batteries when not in use for a long time to prevent battery corrosion of other internal components of the instrument. 5. If you do not know the magnitude of the voltage or current to be measured, start with the highest range and then select the appropriate range based on the measured value.
