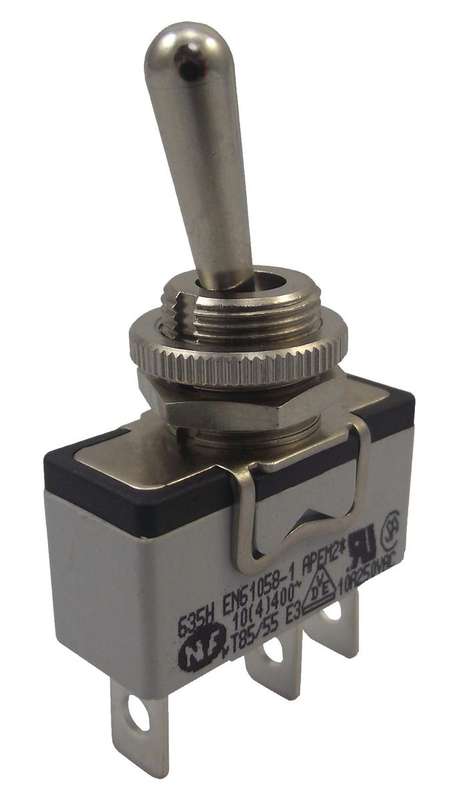

Apem (635H/2) Toggle Switch, (On)-On, SPDT, Non Illuminated

Toggle Switch, (On)-On, SPDT, Non Illuminated, 600H Series, Panel Mount, 10 AProduct InformationSwitch Operation: (On)-OnContact Configuration: SPDTIllumination: Non IlluminatedProduct Range: 600H SeriesSwitch Mounting: Panel MountContact Current Max: 10AContact Voltage AC Nom: 250VSwitch Terminals: Quick Connect, SolderContact Voltage DC Nom: 24VProduct OverviewThe 635H/2 is a single-pole double-throw (SPDT) High Amperage Toggle Switch withmetal lever, solder lug/quick-connect terminals and Momentary-ON function. The600H series switch has silver/nickel alloy contact and nickel plated brassactuator/bushing. Terminal and contact supports are manufactured from a singlepiece of metal. The contacts are resistance-welded to the terminal for increasedmechanical strength. Security caps are available to prevent inadvertent leveroperation. Sealing boots are available to protect the switches against dust andwater.26° Angle of throw10mR Initial contact resistance1.5Nm Maximum torque (applied to nut)ApplicationsAudio, Imaging, Video & Vision, Automotive, Communications & Networking
