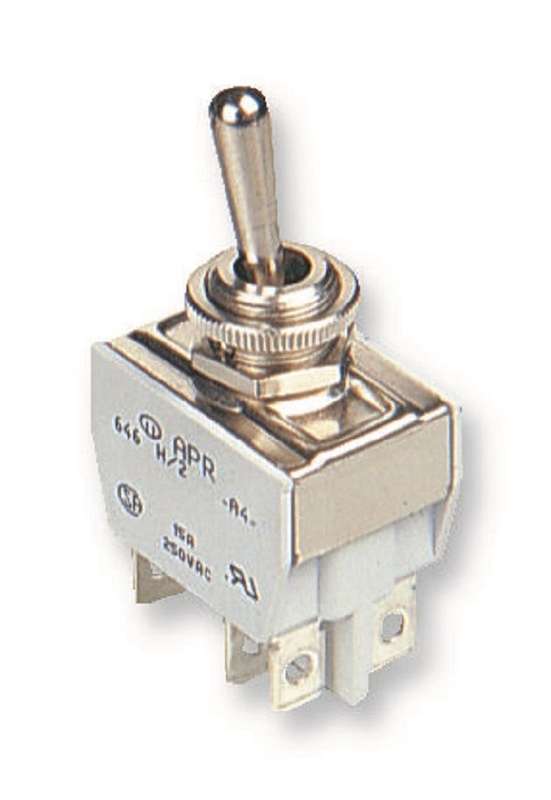

Apem (649H/2) Toggle Switch, On-Off-On, DPDT, Non Illuminated

Toggle Switch, On-Off-On, DPDT, Non Illuminated, 600H Series, Panel Mount, 10 AProduct InformationSwitch Operation: On-Off-OnContact Configuration: DPDTIllumination: Non IlluminatedProduct Range: 600H SeriesSwitch Mounting: Panel MountContact Current Max: 10AContact Voltage AC Nom: 250VSwitch Terminals: Quick Connect, SolderContact Voltage DC Nom: 24VProduct OverviewThe 649H/2 is a double-pole double-throw (DPDT) High Amperage Toggle Switch withmetal lever, screw terminals, solder lug and ON-OFF-ON function. The 600H seriesswitch has silver/nickel alloy contact and nickel plated brass actuator/bushing.Terminal and contact supports are manufactured from a single piece of metal. Thecontacts are resistance-welded to the terminal for increased mechanicalstrength. Security caps are available to prevent inadvertent lever operation.Sealing boots are available to protect the switches against dust and water.32° Angle of throw10mR Initial contact resistance1.5Nm Maximum torque (applied to nut)ApplicationsAudio, Imaging, Video & Vision, Automotive, Communications & Networking
