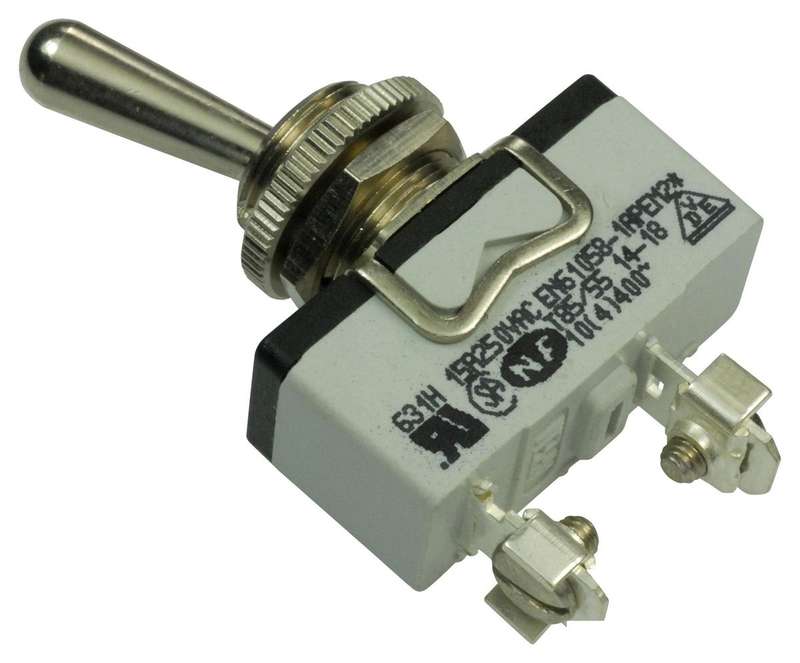

Apem (631H) Toggle Switch, On-Off, SPST, Non Illuminated

Toggle Switch, On-Off, SPST, Non Illuminated, Panel Mount, 15 AProduct InformationSwitch Operation: On-OffContact Configuration: SPSTIllumination: Non IlluminatedProduct Range: -Switch Mounting: Panel MountContact Current Max: 15AContact Voltage AC Nom: 250VSwitch Terminals: ScrewContact Voltage DC Nom: 12VProduct OverviewThe 631H is a single-pole single-throw (SPST) high amperage Toggle switch withmetal lever, 30° angle of throw and screw terminal. The 600H series polyestercase and silver/nickel alloy contacts. Terminal and contact support aremanufactured from a single piece of metal. The contacts are resistance-welded tothe terminal for increased mechanical strength.10mR Maximum initial contact resistance2000Vrms Dielectric strength-20 to 55°C Operating temperature rangeUL94V-0 Flammability ratingApplicationsIndustrial
